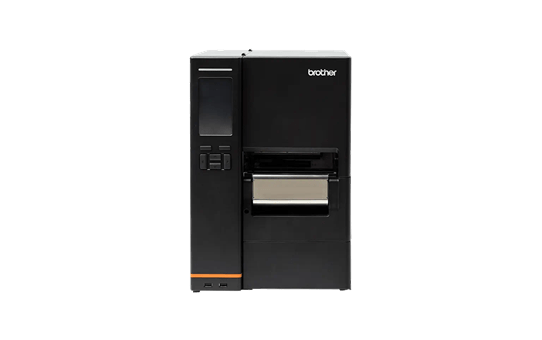

TJ-4522TN Industrial Label Printer

Industrial thermal label printer with 300dpi print resolution, print width up to 104mm, print speeds up to 12ips and touch panel display.

$3,749.95 RRP (Inc. GST)

Enquire now

Print more than 1,000 labels a day, even in the toughest production environments, with the Brother TJ-4522TN industrial label printer.

With fast print speeds, ZPL2 emulation compatibility, high ribbon capacity and an internal rewinder - this durable industrial printer has been built with you in mind.

Experience efficient labelling solutions and performance you can rely on with the TJ-4522TN industrial label printer.

Key features

  • Print speeds of up to 12ips with 300dpi resolution
  • Touch panel display designed for first-class user experience
  • Print width of up to 104mm
  • FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported
  • High capacity 600m thermal transfer ribbon means fewer media changes
  • Connect easily with USB, USB Host, Serial, Ethernet and optional dual wireless interface (WiFi and Bluetooth)

  • 24_7 Helpdesk
  • 2-Year On-site Warranty

Overview

rewind-and-collect-overview-tile_300x200px

Rewind and collect

Automatically wind labels onto a roll during the printing process so you don't have to collect the labels when printed. The Brother TJ-4522TN enables you to print as many labels as needed, for use whenever required.


integrate-with-ease-overview-tile_300x200px

Integrate with ease

With the Brother TJ series, there is no need to worry about integration. Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.
high-quality-thermal-printing-overview-tile_300x200px

High quality thermal printing

The TJ-4522TN industrial barcode label printer offers 300 dpi resolution for easy-to-read text and barcodes, time after time. With high quality product, packing and shipping labels, it is easy to maintain compliance throughout the supply chain.
first-class-user-experience-overview-tile_300x200px

First-class user experience

Offering a touch panel display for instant feedback, the TJ-4522TN has been designed with the user in mind. Make life easy for your workers by troubleshooting issues in just a couple of taps.


connectivity-as-standard-overview-tile_300x200px

Connectivity as standard

USB, USB Host, Serial and Ethernet are included as standard for the TJ industrial label printers. An optional Wi-Fi and Bluetooth module is also available as an accessory to meet your connectivity needs.
in-built-durability-overview-tile_300x200px

In-built durability

Brother industrial label printers have been built with you in mind, and built to last, ensuring you enjoy years of hassle-free label printing. The high volume industrial printers feature a metal frame and cover as well as other durable design features to ensure they perform at their best, even in the toughest production environments.

Specification Details

Features and Specifications

Display Colour touchscreen
Office Industrial
Buttons Power, Feed
Flash RAM 512 MB
LED Power, Status, Error
RAM 256 MB
Technology Direct Thermal and Thermal Transfer
Bluetooth Slot-in v4.2 (user option)
Bluetooth profiles SPP (Bluetooth classic), GATT (Bluetooth low energy)
Serial RS-232 (Max. 115200 bps)
USB interface USB 2.0, USB Host
Wired network interface 10/100 Mbps
Wireless network interface Slot-in 802.11 a/b/g/n module (user option)
Dimensions 276mm (W) x 412mm (H) x 502mm (D)
Weight without carton (includes toner & drum) 18.93 kg
AC adaptor power cord Yes
Label design software Bartender Ultra Lite Edition (downloadable)
USB cable Yes
Quick setup guide Yes
Android V8 or later
iOS iOS® 11 or later
Macintosh Mac OS 10.13.x or higher
Windows Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 7, Windows 8.1
1 dimensional barcode symbologies Code128UCC, Code128 subsets A、B、C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPENN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2 dimensional barcode symbologies CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417, TLC 39
Label detection sensor Yes
Maximum label width 114 mm
Maximum print length 11,430 mm
Maximum print width 104 mm
Resident fonts 8 alpha-numeric bitmap fonts, Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
Resolution (dpi) 300
Standard print speed 305 mm per second
Supported commands FBPL-EZD (EPL2, ZPL2, DPL)
SDK (Software Development Kit) Yes
