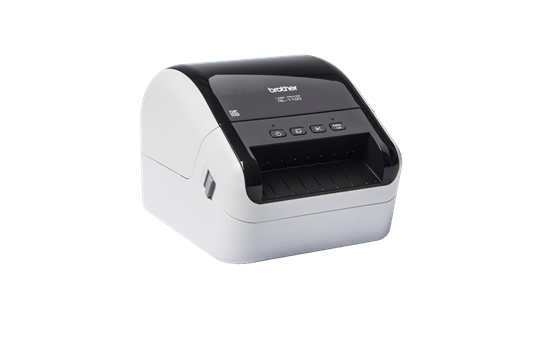

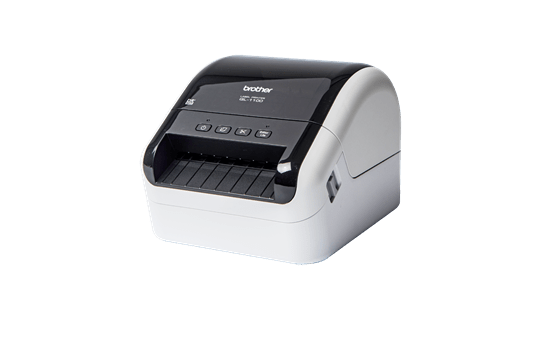

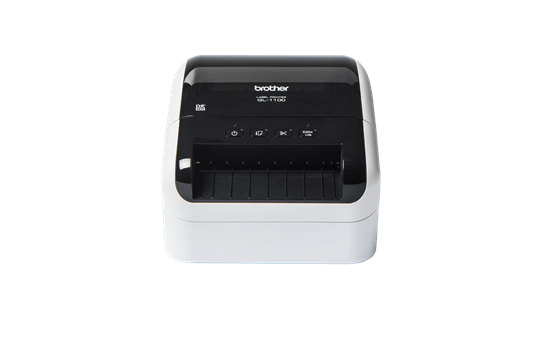

QL-1100 Desktop Label Printer

High-speed label printer engineered to print up to 4" wide labels

QL-1100 Desktop Label Printer QL-1100 Desktop Label Printer 2 QL-1100 Desktop Label Printer 3
Back Next
  1. QL-1100 Desktop Label Printer
  2. QL-1100 Desktop Label Printer 2
  3. QL-1100 Desktop Label Printer 3
$349.95 RRP (Inc. GST)
Find a local store

Featuring a 4 inch width (101.6mm) print head, the QL-1100 offers maximum compatibility with third party shipping label software packages from couriers and parcel delivery companies.

This printer has full PC and Mac compatibility thanks to its USB connection, and the free P-touch Editor label design software lets you add text, images and barcodes to your labels.

The QL-1100 can easily be integrated into your own systems and software using the Windows SDK (Software Development Kit).

Key Features

  • Print labels up to 103.6mm wide and at up to 110mm/second print speed
  • USB connectivity for PC and Mac
  • Store up to 99 label templates in the printer's memory, then access and print using the built-in USB host function
  • Built-in cutter to create your own length labels using unique continuous rolls
  • Windows SDK (Software Development Kit) available to add label printing to your own apps

  • 4-Year Return-to-Base Warranty_405x405px
  • 247 NZ-based Helpdesk V2_405x405px
  • Free Recycling V3_405x405px

Overview

P-touch Editor label design software

Print from PC and Mac

The free P-touch Editor label design software for PC and Mac lets you add text, images, barcodes and frames to your labels. Link to data contained in an Excel spreadsheet or .csv file, then merge the data onto your label layout to quickly print many labels at once.

QL1100-4-Excel

Support for Microsoft Office

The P-touch editor add-in for Microsoft Office (Windows only) allows you to select and print data directly from Word, Excel and Outlook. From Microsoft Word, highlight an address and click the add-in, in the toolbar, to print this on a label. Highlight cells in Excel and again click the add-in. For Outlook, select the contact with the address you require to print this label.

Specification Details

Features and Specifications

Database upload from PC Yes
Housing colour Glossy black and white
Image upload from PC Yes
Memory capacity 6 MB
Memory locations 99
Technology Direct thermal
Template upload from PC Yes
Type DK rolls (DK die-cut labels / DK continuous length tape)
USB interface Ver 2.0 (full speed)
Dimensions 170mm (W) x 222mm (D) x 151mm (H)
Weight without carton (includes toner & drum) 1.71 kg
Power supply cord Yes
Supplies 103mm x 164mm large shipping labels (41 labels) - 62mm continuous length paper tape (8.1 metres)
USB cable Yes
User guide Yes
Warranty card Yes
Quick setup guide Yes
Wireless network security WEP, WPA-PSK/WPA2-PSK (TKIP/AES), LEAP (CKIP), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES)
1 dimensional barcode symbologies CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
2 dimensional barcode symbologies PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENTION, MSI, Aztec
Bitmap fonts Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Maximum label width 103.6 mm
Maximum print length 3000 mm
Maximum print width 101.6 mm
Outline/Vector fonts Helsinki, Brussels, Letter Gothic
Resolution (dpi) 300 x 300
Standard print speed 110 mm per second
Database file compatibility csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 126
Label orientations Horizontal, Vertical
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Sequential numbering 1 - 9999 / A - Z / a - z
Text alignment Centre, Justify, Left, Right
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Vertical print Yes
SDK (Software Development Kit) Yes
Warranty 4 years
