TD2020

The smart choice for any workplace

Discontinued

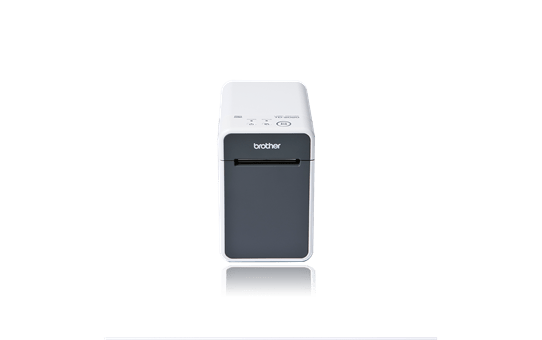

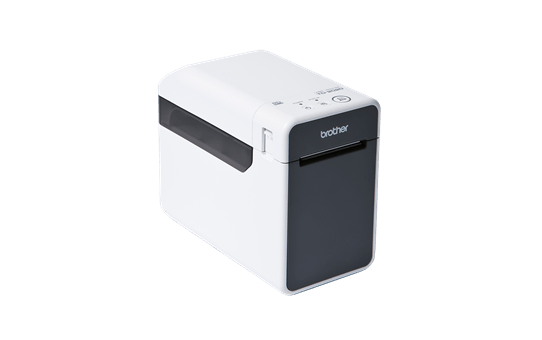

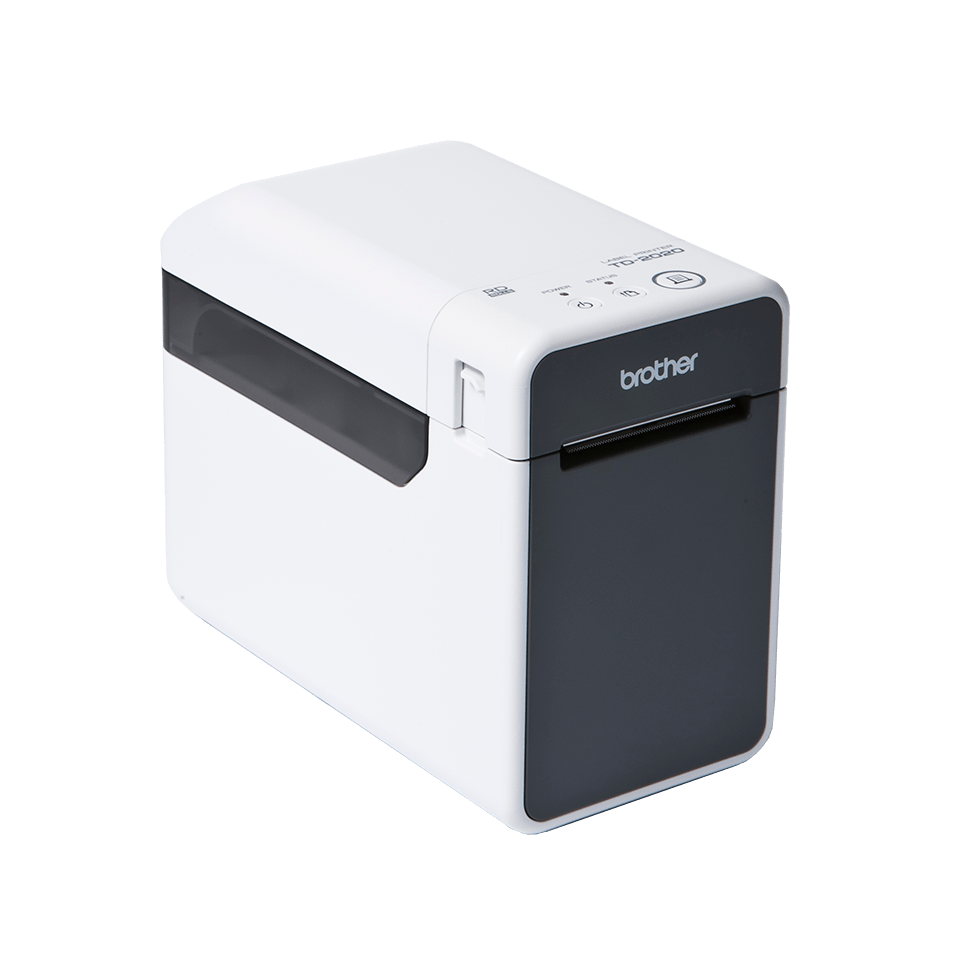

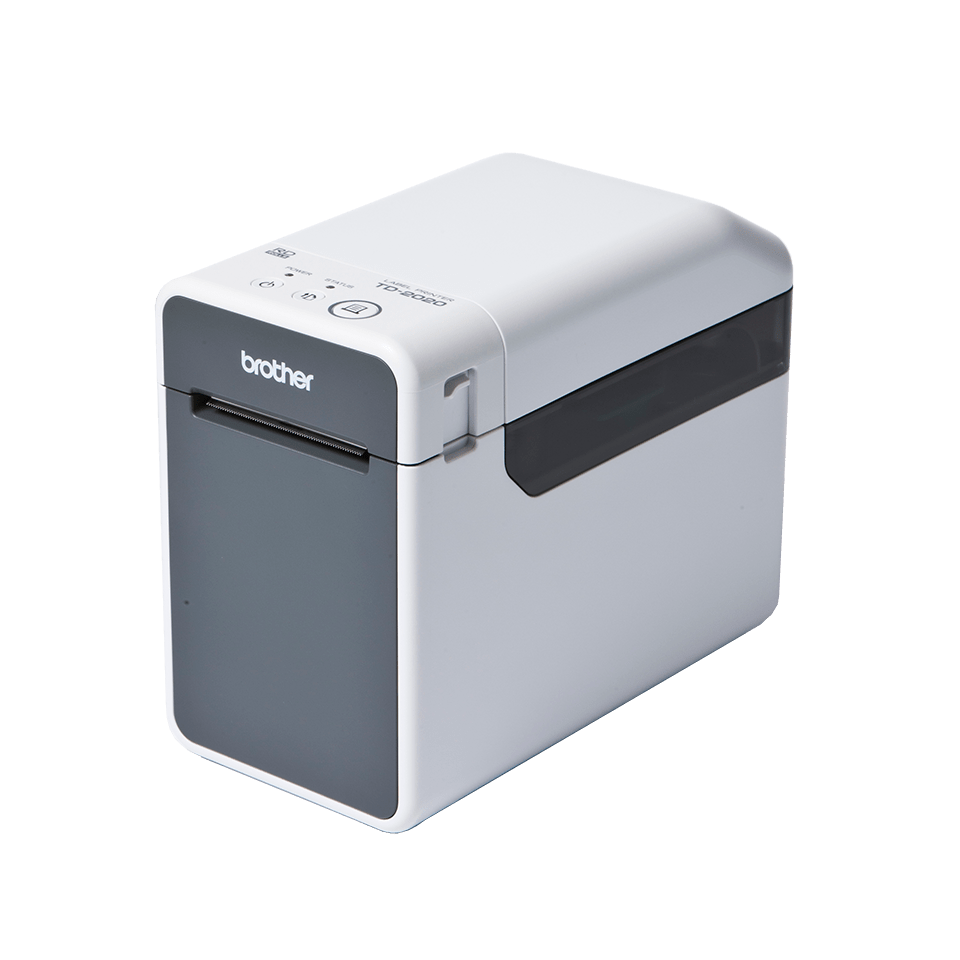

TD2020 TD2020 2 TD2020 3
Back Next
  1. TD2020
  2. TD2020 2
  3. TD2020 3

At a glance

  • p-touch-editor
  • usb
Increasing productivity and reducing costs are priorities in any workplace. And when it comes to label printing, the TD2020 combines proven desktop printer performance with new levels of efficiency to help you do more for less.

Key Features

  • Up to 6 inches per second print speed
  • 203dpi print resolution
  • USB and serial connectivity
  • 32MB RAM, 16MB Flash
  • ZPL II printer language
  • P-touch Editor 5 software - works on Windows

  • 24_7 Helpdesk
  • Free Recycling
  • 2-Year Return-to-Base Warranty

Overview

Professional labels, whatever the job

Increasing productivity and reducing costs are priorities in any workplace. And when it comes to label printing, the TD-2020 combines proven desktop printer performance with new levels of efficiency to help you do more for less.

The TD-2020’s spindle-less design accommodates rolls of up to 127mm diameter, so you won’t have to reload as often. With sharp 203dpi print definition, this handy label printer turns out impressive results at up to 152mm per second.

There’s also a 6MB on-board memory, or the capacity to hold 99 label templates so you can take your labelling productivity to a new level.



Specification

Features and Specifications

Memory capacity 6 MB
Technology Direct thermal
Serial Option: RS-232C
USB interface Ver 2.0 Full Speed
Wireless network interface Option: IEEE802.11 b/g/n
Dimensions 110 mm (W) x 215 mm (D) x 172 mm (H)
Weight without carton (includes toner & drum) 1.34 kg
AC adaptor Yes
Power supply cord Yes
Software Yes
USB cable Yes
User guide Yes
Quick setup guide Yes
Wireless network Option: IEEE802.11 b/g/n
Wireless network security Infrastructure Mode/Adhoc Mode
Windows Windows 8, Windows 7, Windows Server 2003 & 2008 (32 & 64 bits), Windows Vista, Windows XP
Bitmap fonts Up to 10 (depending on emulation used)
Copies 1-999 (P-touch Template mode)
Maximum label width 63 mm
Maximum print length 1000 mm
Maximum print width 56 mm
Outline/Vector fonts Up to 4 (depending on emulation used)
Resolution (dpi) 203
Standard print speed 152.4 mm per second
Supported commands P-touch Template 2.0 (includes ZPLII® emulation), Raster, ESC/P
Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 154
Languages English, German, French, Dutch, Italian, Spanish, Portuguese, Danish, Norwegian, Swedish, Finnish, Hungarian, Czech, Polish, Romanian, Slovenian, Slovakian, Croatian, Russian, Turkish, Brazilian Portuguese, Japanese, Simplified Chinese
Screen capture Yes
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround
SDK (Software Development Kit) Yes
Optional accessories Serial Adapter (PA-SCA-001)
Rolls RD rolls (die-cut and continuous)
