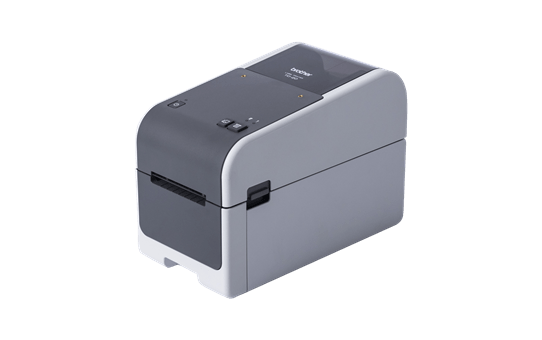

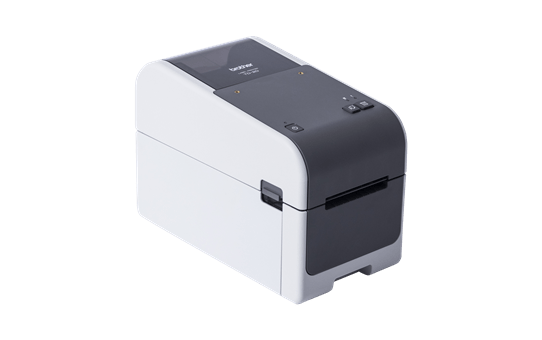

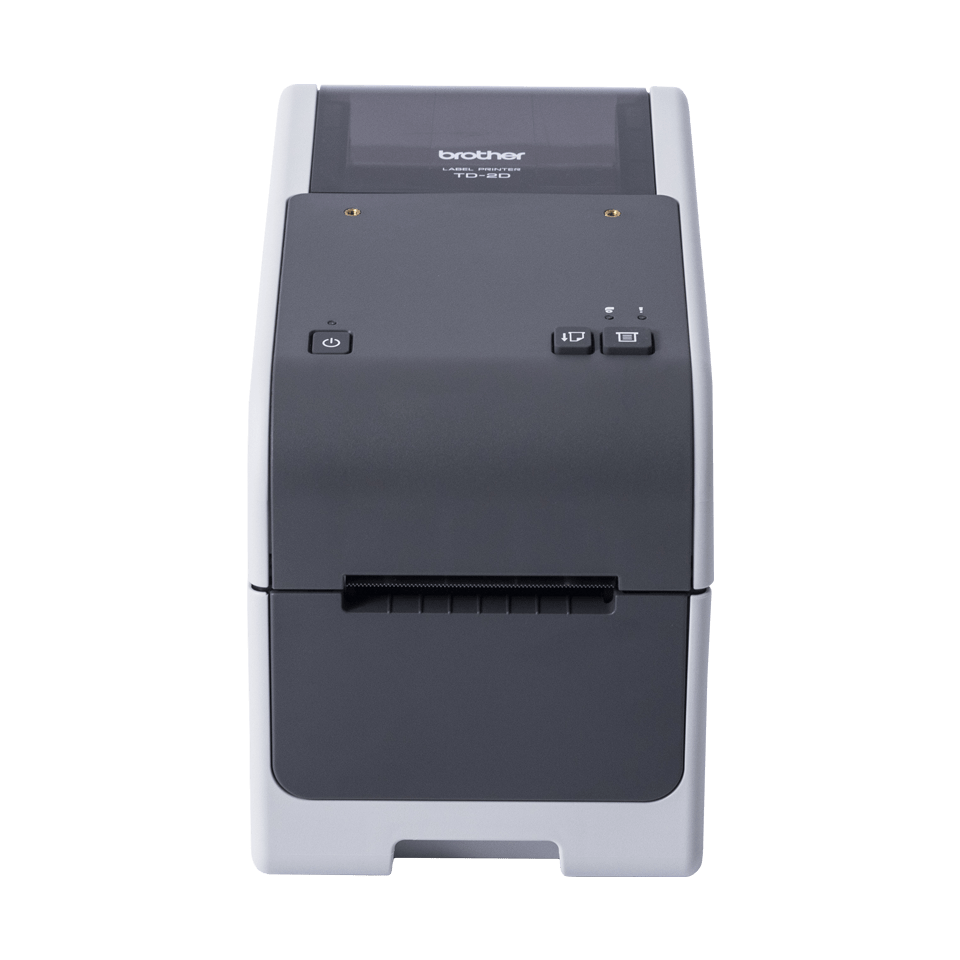

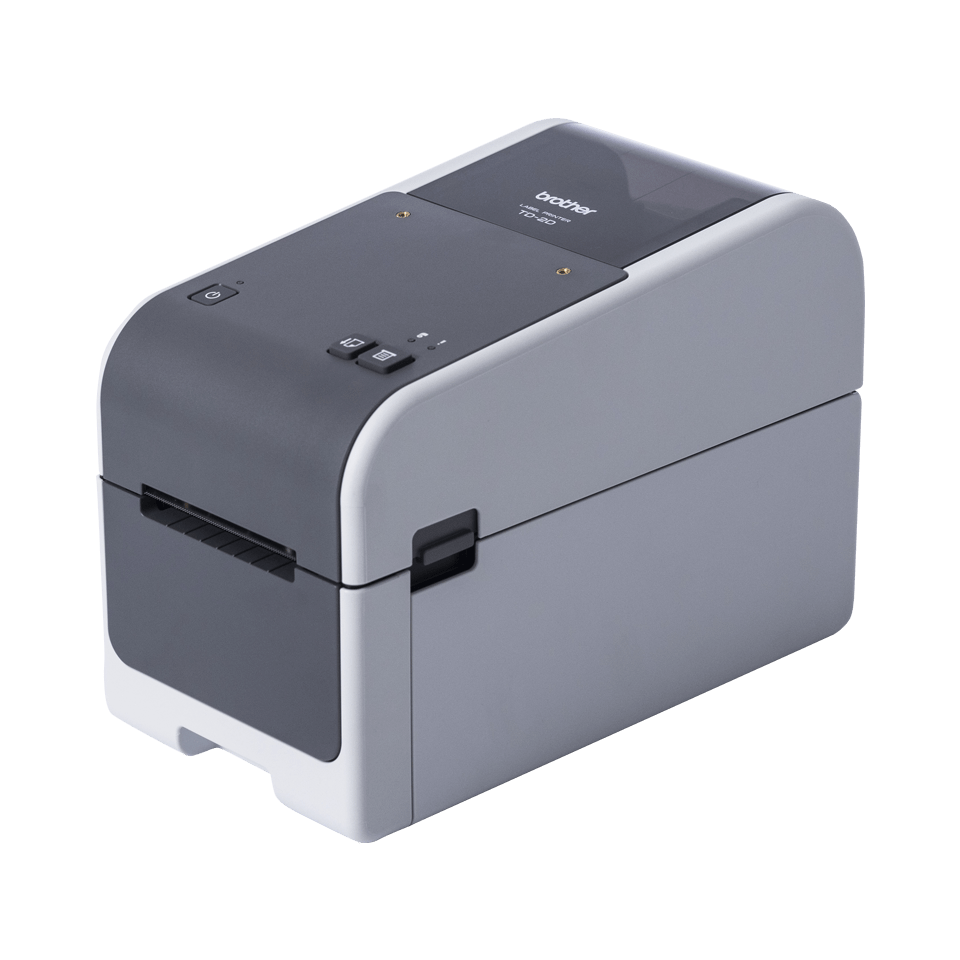

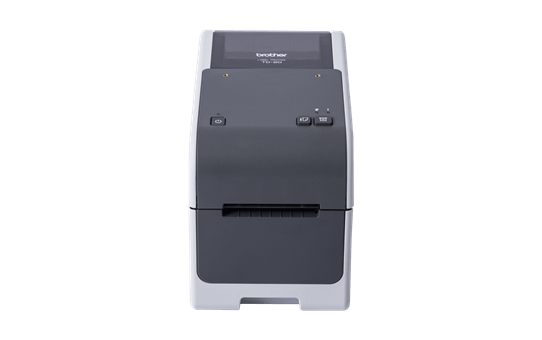

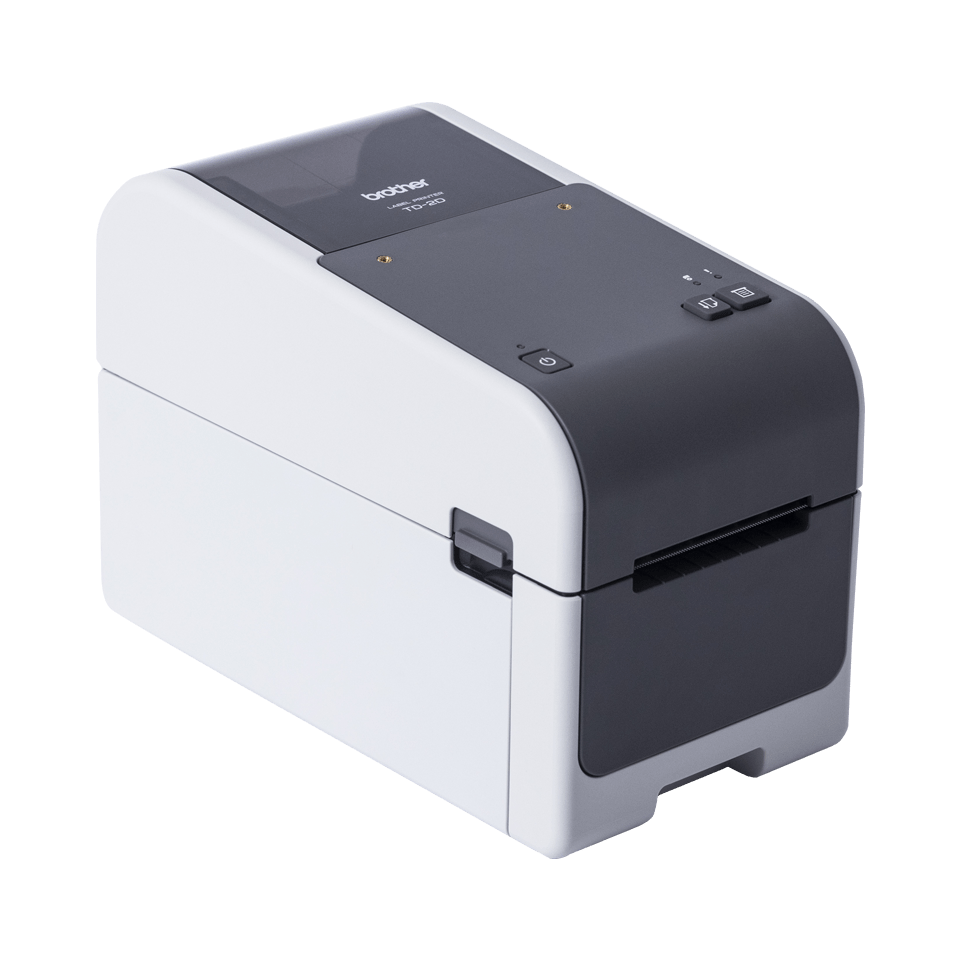

TD-2320D Desktop Label Printer - Network + USB

Compact thermal direct label printer capable of printing labels, wristbands and receipts up to 59mm wide.

$649.95 RRP (Inc. GST)
Find a local store

At a glance

  • p-touch-editor

Unlock Greater Efficiency with the TD-2320D Label Printer

Take your labeling capabilities to the next level without costly system upgrades. The TD-2320D is engineered for versatility, making it ideal for a wide range of applications. It works seamlessly with your existing label rolls, so you can start printing immediately without the hassle or expense of changing supplies. Plus, with a suite of optional accessories for customization and a range of FSC-certified labels as options, the TD-2320D delivers a cost-effective, flexible solution that meets your operational and environmental goals.

Ideal for a wide range of applications, the TD-2320D label printer is the perfect choice for expanding your label printing capabilities without requiring extensive system overhauls. With a spindle-less design, the TD-2320D can accommodate rolls of up to 127mm in diameter, meaning less downtime. There are a range of optional extras available to fulfil virtually any requirement while keeping costs to a minimum.

Ready to transform your labelling process? Contact us today.

Key features

  • Compatible with multiple command languages: Raster, ESC/P, ZPL2, CPCL, EPL & DPL
  • Comes with our powerful P-Touch Editor software
  • Versatile, compact and modular
  • High-quality and crisp 203dpi outputs
  • Ethernet, USB-C, USB host and Serial
  • Maximum print width 59mm

  • 2-Year Return-to-Base Warranty
  • 24_7 Helpdesk
  • Free Recycling

Overview

Your 'out of the box' labelling solution

Each model is a complete labelling solution that comes with a professional label design and printing software application developed by Brother with advanced design tools and features included as standard.

Powerful-integration-td-2320d

Powerful integration

Designed to work with your existing infrastructure, supporting a variety of operating systems. It also supports multiple printer command languages, including ZPL2, EPL2 & DPL emulation. This makes it a flexible solution for businesses looking to upgrade or expand printing capabilities without extensive system overhauls.

Simple-and-efficient-TD-2320D

Simple and efficient

Uses direct thermal printing technology, eliminating the need for traditional printing ribbons and ink. This reduces maintenance costs and ensures reliable, on-demand printing, making it ideal for high-volume tasks.

Versatile-applications-TD-2320D

Versatile applications

The versatility of the label printer makes it ideal to the demanding requirements of many verticals such as the retail and healthcare industries. It allows you to print a wide range of labels, wristbands, receipts, tags and barcodes with ease, meaning that you only need one printer for a variety of applications.

Compact-and-modular-TD-2320D

Compact and modular design

The printer’s compact design allows for easy placement in any workspace, and can be customised based on specific needs. Optional features like a label peeler, automatic cutter, and rechargeable battery add flexibility, making it easy to move and use the printer wherever work takes you.

Fast-and-crisp-outputs

Fast and crisp outputs

Whether you’re printing large batches or single items, the label printer delivers sharp, clear outputs every time. With print speeds of 152.4 mm per second and a resolution of 203 dpi, your printing tasks are completed quickly and to a polished, professional standard.

At-your-side-support

At your side support

Wherever you are in New Zealand, Brother offers support when you need it through our 24/7 NZ-based helpdesk.

Specification Details

Features and Specifications

Usage type Industrial, Office
Auto power off Yes
Control panel 3 LED, 3 button (Power/ Feed/ Print)
RAM 256 MB
Technology Direct thermal
Bluetooth No
Number of Bluetooth connections N/A
Number of Bluetooth pairings N/A
Number of Wi-Fi Direct connections N/A
USB Host Yes - USB Ver.2.0 (Full Speed) (Type A)
AirPrint No
MFi No
NFC No
Serial Yes. RS232C (RJ25). Conversion cable (PA-SCA-002, optional) is necessary.
USB interface Yes - USB Ver.2.0 (Full Speed) (Type C)
Wi-Fi Direct No
Wired network interface 10/100BASE-TX
Wireless network interface No
Dimensions 119 x 224 x 158 mm (4.7 x 8.8 x 6.2 inch) (Without option)
Android Android 9 or later
iOS N/A
Macintosh N/A
Windows Microsoft Windows 10(x86,x64), 11 Microsoft Windows Server 2016,2019,2022
Linux Linux
1 dimensional barcode symbologies P-Touch: CODE 39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar (Standard (Omnidirectional) /Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded), CODE93, POSTNET, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode ESC/P: CODE 39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar (Standard (Omnidirectional)/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded), CODE93, POSTNET, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode
2 dimensional barcode symbologies P-Touch: QR Code (model 1, model 2, micro QR), Maxicode, PDF417 (Standard, Truncate, MicroPDF417), Data Matrix (ECC200 Square, ECC200 Rectangular), Aztec, GS1 Databar Composite ESC/P: QR Code (model 1, model 2, micro QR), Maxicode, PDF417 (Standard, Truncate, MicroPDF417), Data Matrix (ECC200 Square, ECC200 Rectangular), Aztec
Maximum roll outside diameter 127mm (5")
Minimum core size 12.7 mm (0.5")
Resolution dpi 203/300 dpi
Bitmap fonts ESC/P: LetterGothicBold: 4 (16, 24, 32, 48 dot) Helsinki: 3 (16, 24, 32 dot) Brussels: 3 (24, 32,48 dot) SanDiego: 3 (24, 32, 48 dot) Brougham: 3 (24, 32, 48 dot) Gothic: 3 (16, 24, 32 dot)
Maximum label width 63 mm
Maximum print width 59 mm
Standard print speed 152.4 mm per second
Supported commands Raster, ESC/P, P-touch Template, ZPL emulation, EPL emulation, DPL emulation
Fonts Outline: 4. LetterGothicRegular, Helsinki, Brussels
SDK Software Development Kit Yes
Optional accessories PA-AD-005 (Standard adapter) PA-BB-004 (Battery base) PA-BC-004WW (battery charger) PA-BT-004 (Li-ion battery pack) PA-CU-007 (Cutter) PA-HU2-002 (Print head 203dpi) PA-LP-008 (Peeler) PA-PR2-002 (Platen roller 203dpi)
Warranty 2 year return-to-base

Rating and Reviews

Customer reviews

  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getReviews, 234ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Supplies and Accessories

Accessories

Cleaning and Maintenance

Routine maintenance to keep your printer performing at its best.

We recommend cleaning your printer on a regular basis to maintain its correct performance. Always disconnect the printer from any power source before cleaning.



Clean the exterior of the unit.

Wipe any dust and marks from the main unit using a soft, dry cloth. Use a cloth slightly damp with water on difficult to remove marks. Important - do not use paint thinner, benzene, alcohol or any other organic solvent. These may deform or damage the printer case.

Clean the label output slot.

Cleaning label output slot

If adhesive residue gets attached to the label output slot, it may cause label jams. Clean the label output slot with a dry cotton swab.



Important – do not use alcohol to clean the label output slot.



Always remove the ejected labels from the label output slot. If the slot becomes blocked, label jams may occur.


Clean the roller.

 Cleaning the roller

Wipe the roller with a lint-free cloth dipped in isopropyl alcohol or ethanol. After cleaning the roller, make sure that no lint or other material remains on the roller.



Use isopropyl alcohol or ethanol according to the manufacturer’s safety guidelines, as applicable.


Clean the print head.

 Cleaning the print head

Wipe the print head with a lint-free cloth or cotton swab dipped in isopropyl alcohol or ethanol. We recommend cleaning the print head monthly.



Use isopropyl alcohol or ethanol according to the manufacturer’s safety guidelines, as applicable.
