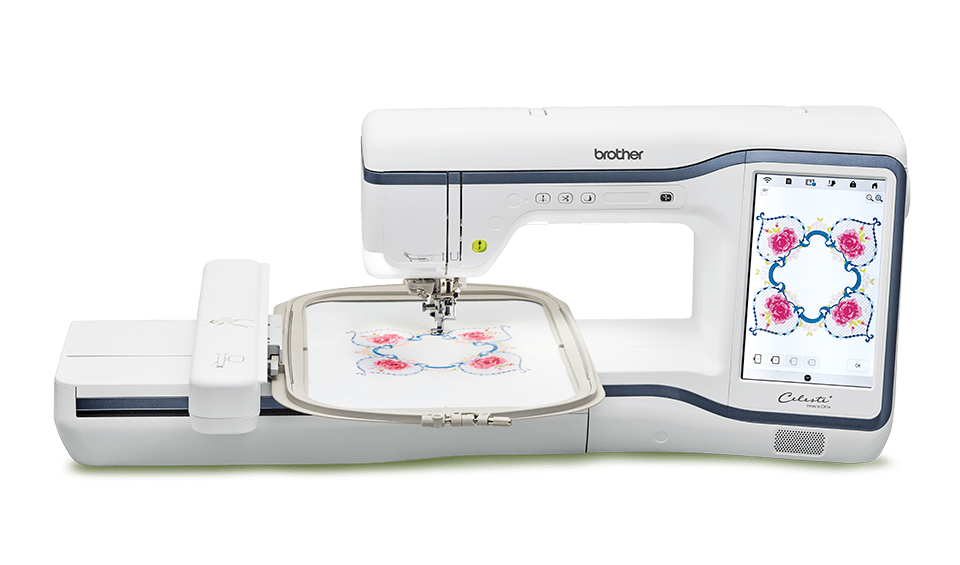

Celeste CX1E

With a large embroidery area and a bright beautiful screen to give you a complete embroidery experience, the Brother Celeste CX1E Embroidery Machine is a pure delight.

$7,995.95 RRP (Inc. GST)

Find a Brother Authorised Sewing Dealer

The Brother Celeste CX1E Embroidery Machine brings large format embroidery. Enjoy time-saving embroidery features like the 2-point positioning LED pointer to help align designs for pin-point embroidery placement. With 521 embroidery designs, a large 360mm x 240mm (14” x 9.5”) embroidery area. Equipped with wireless integration for Artspira, and Design Database Transfer, the Brother CX1E will elevate your embroidery skills.

  • 5-Year Return-to-Base Warranty

Overview

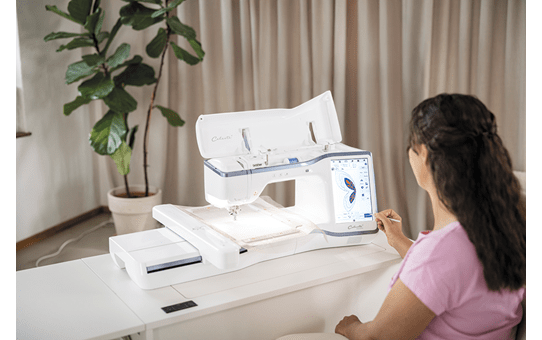

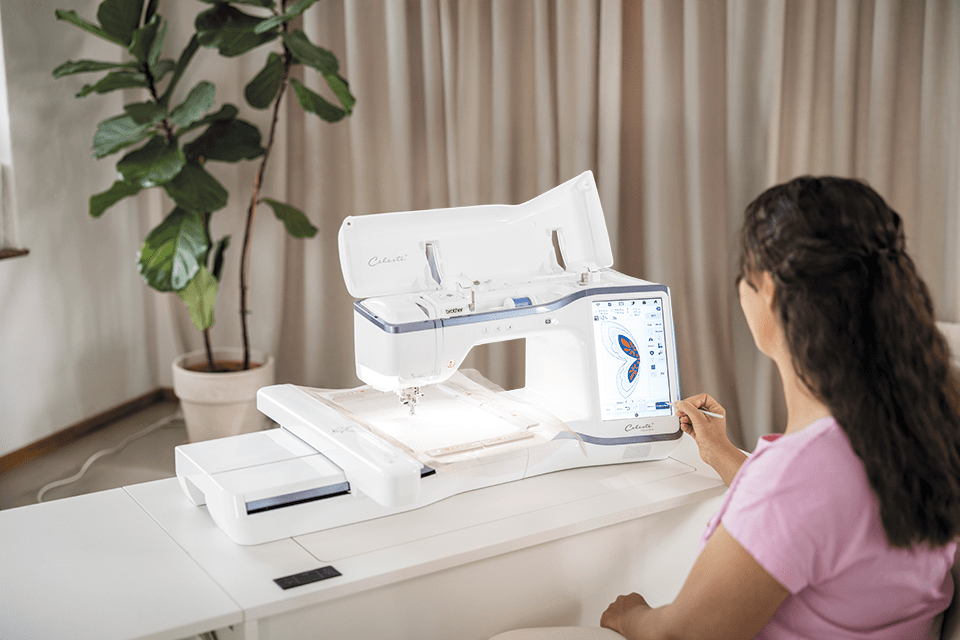

With an extra-large 10.1” HD touchscreen display, enhanced lighting, a embroidery area of 360 x 240mm (14 x 9.5”), and speeds of up to 1,050 stitches per minute, it’s never been so easy to express yourself.

You'll love using the 2-point embroidery positioning function. Badges have never been simpler using the new Matrix Copy feature for repeating designs.

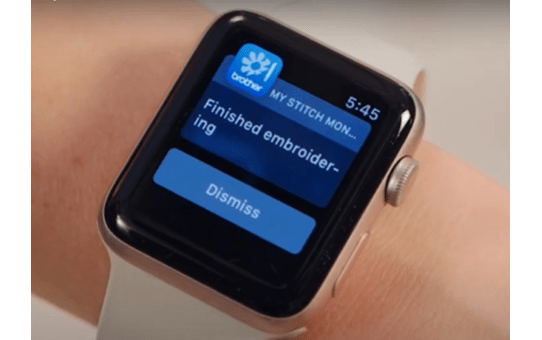

Of course, you’ll be able to keep an eye on your stitch out while you’re in the other room making a coffee, using the My Stitch Monitor app for iOS and Android.

With 521 designs built-in as standard, 26 lettering styles. Whether it’s one big motif, or smaller repeated designs, you won’t need to re-hoop with the CX1E's large 360 x 240mm (14 x 9.5”) frame and matrix copy function.

Take your bespoke ideas even further with easy-to-use text editing, colour shuffling, and enhanced thread palettes. There are nine built-in colour memory slots and expanded brand and colour choices.

Work smarter, not harder. The wireless enabled Brother CX1E Embroidery Machine in perfect harmony with a range of Brother apps, including Artspira and My Stitch Monitor.

Quilters will love the echo quilting options with 32 different fills to choose from and the ‘no sew’ edit feature is a great way to modify patterns by thread colour.

Key Features

  • Extra-large embroidery area: 360 x 240mm (14 x 9.5”)
  • 521 built-in embroidery designs
  • 26 embroidery fonts (24 alphabets and 2 Cyrillic)
  • Advanced colour shuffling – save up to nine of your favourite palettes
  • Up to 1050spm embroidery speed
  • 10.1” high resolution HD LCD screen
  • Wireless capability to work with Brother apps, Artspira, and PE-Design 11

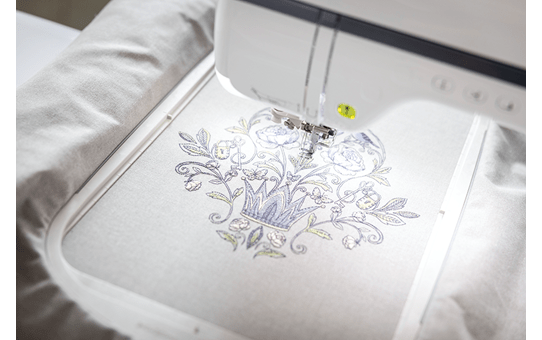

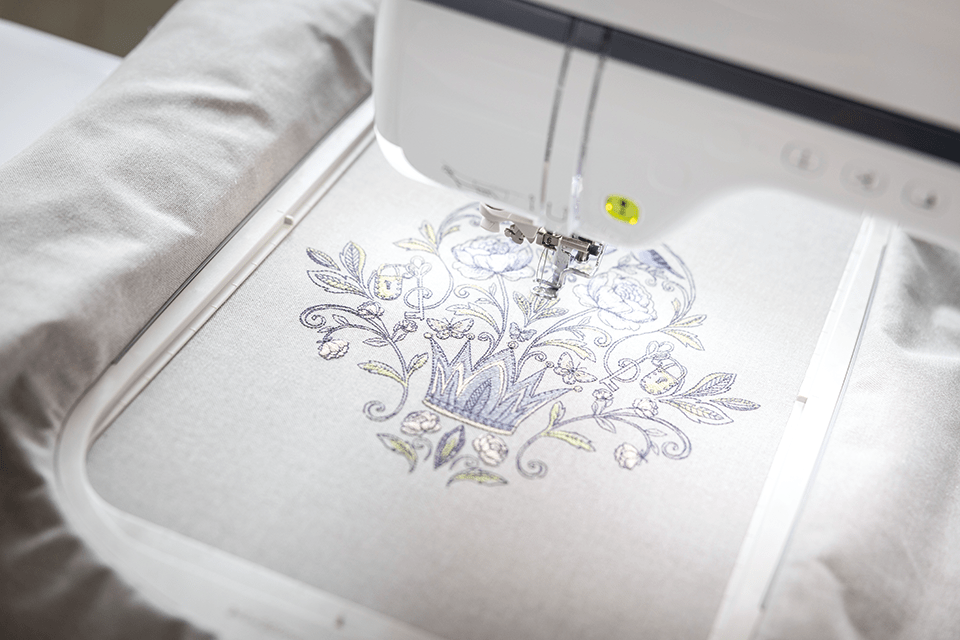

  • LED pointer embroidery foot

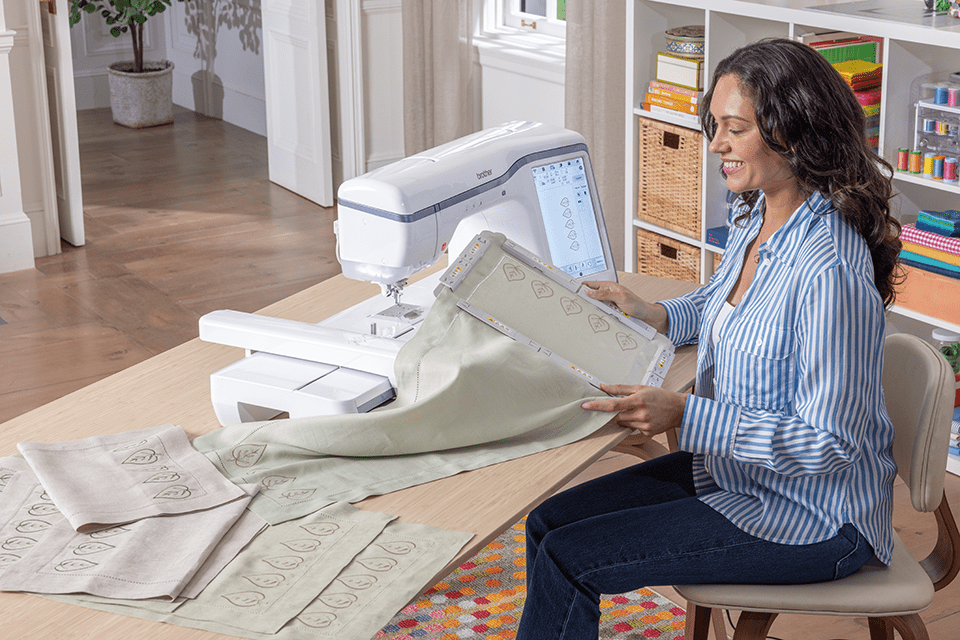

  • Matrix setting – automatically place repeated designs for the perfect layout
  • Auto jump stitch trimmer
  • USB port – making it easy to import designs
  • Movie tutorials and upload function
  • 5-Year Return-to-Base Warranty (1 year for commercial use)
  • No Sew Editing – for simple changes to designs by electing not to stitch particular sections

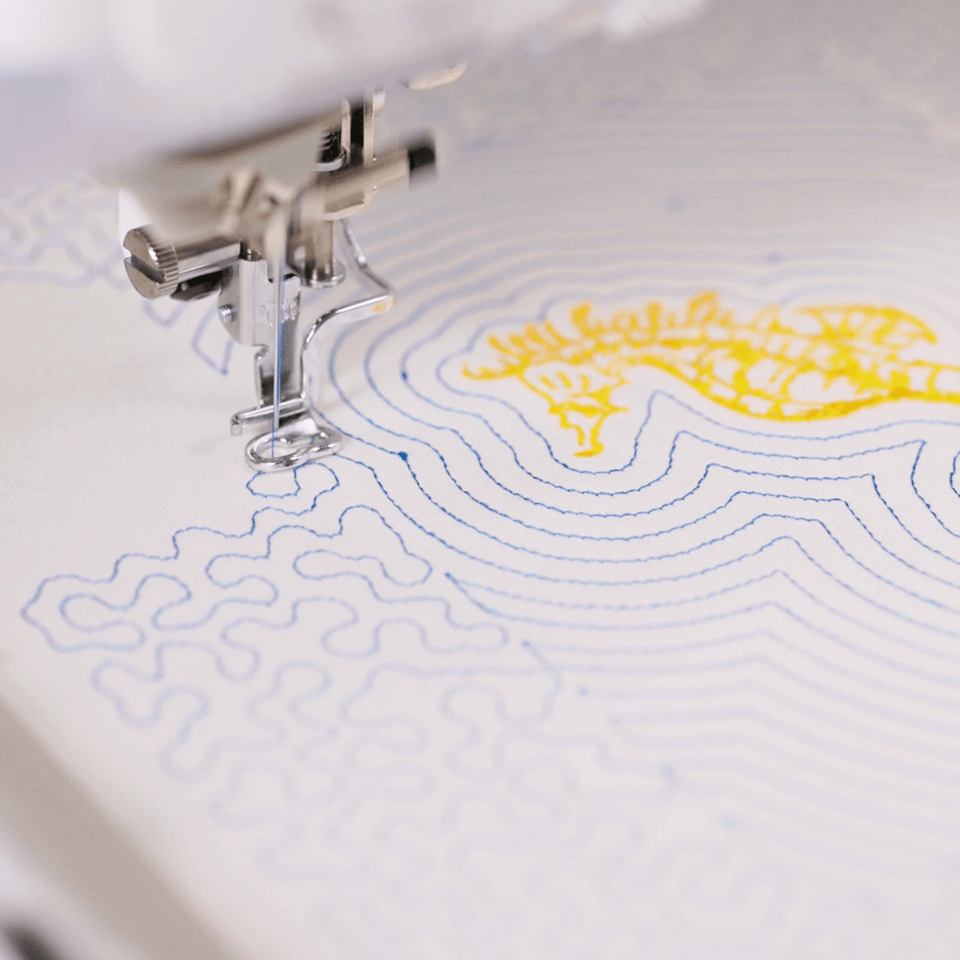

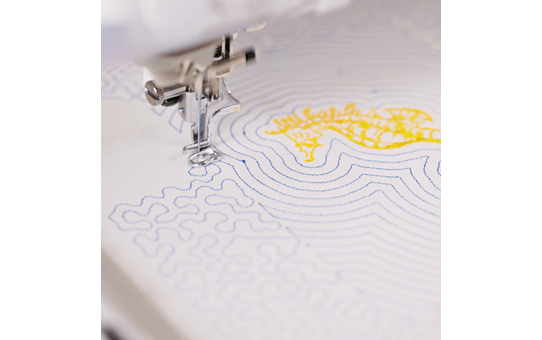

  • Echo Quilting – select a frame size and echo from the selected pattern all the way out to the frame edge in a choice of 32 different styles, then edit the spacing or enlarge the stitch for variation.

Features in Depth

General Features

Lighting 4 LED lights provides a bright workspace.

Needle threader Easy to use, automatic needle threading system.

Bobbin winder Independent bobbin winder system with adjustable winding speed.

Wireless Wireless LAN capability for exchange of embroidery data with PE-Design 11 and mobile apps.

Thread tension Automatic thread tension.

Thread cutter Trims upper and lower threads automatically.

Presser foot Automatic presser foot lift and extra high lift.

Thread sensors Gives you a warning when your upper and lower threads are running low.

Start/stop button Ergonomic large start/stop button.

Environment Save energy with the Eco and Deep Sleep modes.

App connectivity receive exciting new projects and designs or create your own via Brothe’s mobile device app, Artspira, and keep an eye on your work whatever you’re doing with My Stitch Monitor.

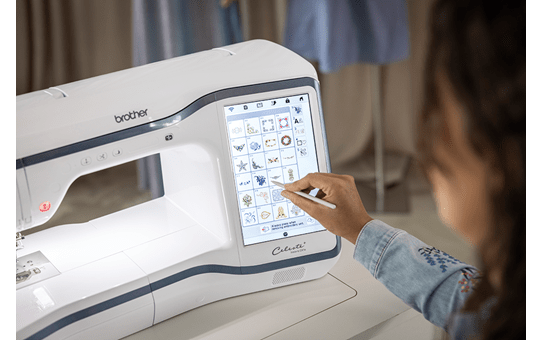

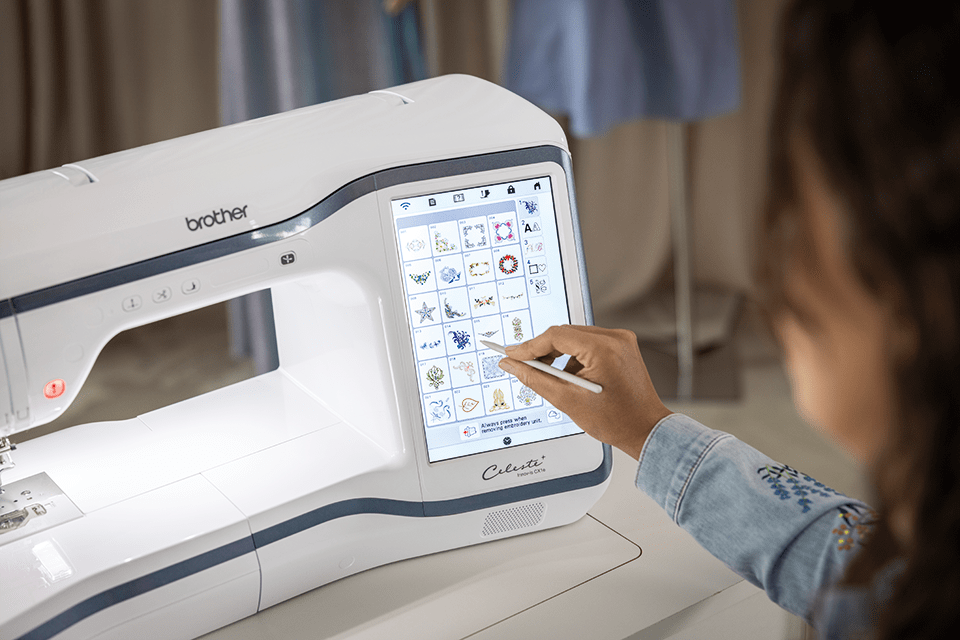

LCD Display Large and clear 10.1” (800 x 1280px) built-in HD LCD display.

Intuitive user interface Easy-to-use screen layout and realistic preview of selected patterns.

USB connectivity Two high-speed ports.

Multilingual operational languages 12 built-in languages.

Safety features Easily disengage needle to make changing needles safer, and lock the screen to avoid any accidental changes.

Updates Automatic software update capability.

Embroidery Features

Embroidery area Large 14 x 9.5” / 360 x 240mm embroidery area.

Embroidery speed Embroidery up to 1,050 stitches per minute.

Built-in designs Total 521 embroidery patterns.

Thread trimming Jump stitch thread trimming with thread wiper.

Density On-screen auto density adjustment (Stitch-To-Block) available for embroidery and letters.

Laser pointer for precise two-point pattern placement.

Advanced editing functions Design editing, flip designs horizontally, pattern rotating (0.1, 10 and 90 degrees), drag and drop operation, zoom up to 200%.

Basting Embroidery basting.

Colour Shuffling Colour shuffling function that can choose from your favourite thread brands with more colour variations, with pinning, and favourite mark capability.

Selecting designs Advanced multiple design selection.

Colour change Direct touch button for changing colours of embroidery patterns.

Resume function Resume your embroidery at the exact spot where you stopped in case of a power failure or accidental interruption.

Frame detection Automatic embroidery frame size detection.

Progress bar View the progress of an embroidery pattern or individual colour, and use to move forwards/backwards through the design.

Thread palettes Select various thread brands for built-in and external designs and save up to nine of your favourite combinations.

Included frames Two standard frames, included – 360 x 240mm (14 x 9.5”) and 180 x 130mm (7 x 5”).

What's in the Box

Accessories included:

Embroidery Foot With LED Pointer
Touch Pen (Stylus)
Embroidery Frame and sheet 240mm × 360mm
Embroidery Frame and sheet 130mm × 180mm
Operation Manual
Quick Reference Guide
Embroidery Bobbin Thread (#90, White)
Stabiliser material
Embroidery Needle Plate Cover
Needle Set 75/11 (6)
Bobbins (10)
Bobbin Clips (10)
Thread Spool Insert (Mini King Thread Spool)
Small Spool Cap
Medium Spool Cap (2)
Large Spool Cap
Spool Net (2)
Multi-purpose Screwdriver
Small Screwdriver
Large Screwdriver
Disc Shaped Screwdriver
Cleaning Brush
Seam Ripper
Scissors
Accessory Bag
Vertical Spool Pin
Bobbin Centre Pin (for use with prewound bobbins)



Optional accessories:

MF300AP 180mm x 300m (7 x 12") Magnetic Embroidery Frame
MF180AP 130mm x 180mm (5x7”) Magnetic Embroidery Frame
SASEBXJE Luggage



Specification Details

Features and Specifications

Brand Innov-is
Design Computerised
Function Embroidery
Machine Size X-Large
Machine Type Embroidery Machine
Skill Level Advanced, Intermediate, Small Business Use
Use Business, Home
USB Port 2 Hosts (2.0/2.0) / 0 Slave
WiFi Capability Yes
Display Resolution (Pixel) 480 x 800
Built-In Lettering Styles (Embroidery) 24 (22 Alphabet Fonts 2 Cyrillic
Built-In Patterns 521
Colour Shuffling Yes
Embroidery Area in mm 240 x 360mm
Embroidery Frame Clearance for Bobbin Change Yes
Font Editing Functions/Multiple Lines and Alignment (L-C-R) Yes
Font Size Selection (L-M-S) Yes
Frames Included Embroidery Frame: 5" x 7" (130 x 180 mm), Embroidery Frame: 9.5 x 14" (240 x 360 mm)
Jump Stitch Trim Yes
LED Pointer Embroidery Foot Included
Max Embroidery Speed (Stitches per Minute) 1050
Multiple Line Input Yes
New UI (Slide Scroll Operation) Yes
Number of Hoops (Standard Accessory) 2
Number of Spool Stands 1
Pattern - Size, Change Rotation & Mirror Yes
Realistic Preview of Patterns Yes
Single Colour Pattern Converter Yes
Thread Colour Sorting Yes
Eco Mode (Auto Power Off/Sleep Mode) Yes
Bobbin Type Horizontal
Case Soft Cover
Hardware Type Electronic
Insertion of Bobbin Top Load Drop-in Bobbin
Instructional Manual PDF Viewer Yes
Number Of Needles 1
Warranty 5 years (12 months for machines used for commercial purposes)
Adjustable Thread Tension Automatic
Automatic Thread Cutter Yes
Bobbin Winder Independant
Lower Thread Sensor Yes
Needle Threading System Automatic
Upper Thread Sensor Yes
Machine Dimension 662 x 321 x 348 mm
Weight 15.3 kg
