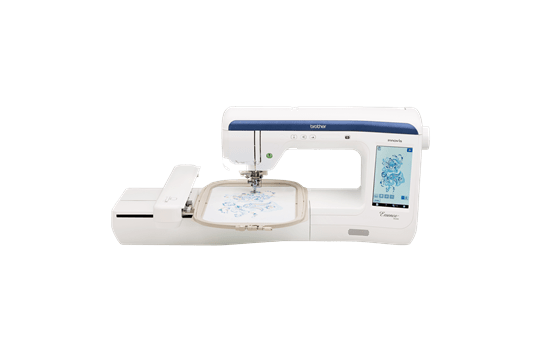

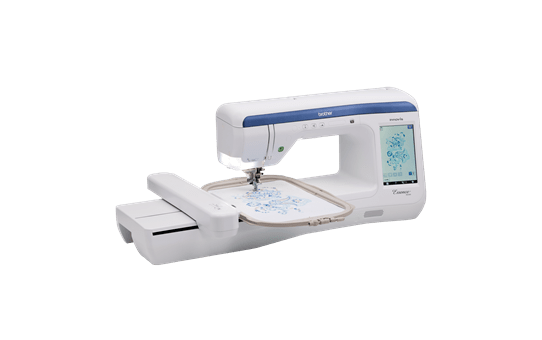

Innov-is Essence VE2300 Embroidery Machine

Embroidery only machine with large 8" x 12" embroidery area.

$5,999.95 RRP (Inc. GST)

The Innov-is Essence VE2300 features an expansive 8" x 12" maximum embroidery area, giving you the power to tackle larger projects with ease. With the use of the Ultrasonic Sensor Pen, you can position your embroidery design on your fabric and always know exactly where your stitches will go.

Find an authorised reseller

Key Features

  • 8" x 12" maximum embroidery area
  • Automatic thread trimming and touch-of-a-button needle threader
  • Stitch jumping - move through your design up to 500 stitches at a time
  • V-Sonic ultrasonic sensor pen
  • Droplight LED embroidery positioning marker
  • Quick set bobbin

  • 5-Year Return-to-Base Warranty


With the freedom and flexibility of touch screen technology, you can achieve endless possibilities and unveil a whole new level of creativity. The VE2300 carries a library of 318 embroidery designs including 12 bobbin work designs, 17 embroidery fonts and 140 frame pattern combinations. Spend more time creating with a stitch velocity reaching 1,050 SPM, plus a 10" bright LED light allowing you to see your work clearly.
Droplight Embroidery Positioning Marker
Droplight Embroidery Positioning MarkerThe LED droplight shows the needle drop position with pinpoint accuracy - providing perfect embroidery results.
V-Sonic pen for embroidery

V-Sonic Pen For Embroidery Positioning

Ultrasonic sensing allows you to position your embroidery designs on your fabric and alter the angle rotation with a simple touch.

Features in Depth

318 built-in embroidery designs

Including 13 bobbin work designs, 17 embroidery fonts (12 Alphabet, 2 Cyrillic, 3 Japanese embroidery fonts) and 140 frame pattern combinations.


V-Sonic pen for embroidery positioning

Ultrasonic sensing provides embroidery positioning and angle rotation with a simple touch.


Large 7” LCD touch screen display

See up to 260,000 colours with little or no on-screen colour shifting; view on-screen tutorials, and control the machine with the large, intuitive icons.


Up to 1,050 stitches per minute

Create more works of art in less time.


Ultra-bright LED lighting

No more task lights needed, surround the work area with 10” of bright and adjustable lighting.


Droplight embroidery positioning marker

The LED pointer shows the needle drop position with pinpoint accuracy - critical for embroidery.


Built-in USB port

Connect to a computer for importing and exporting designs or performing machine updates. Use the second port to import and export designs from a memory stick.


Large embroidery area

The space to create with a maximum embroidery field of 300 x 200mm; two embroidery frames are included; 300 x 200mm and 180 x 130mm.


Automatic thread trimming system

Cuts threads between colour stitch blocks, convenient and a real time saver.


Sleep and shut-off modes

Energy efficiency you can expect from Brother.


Stitch jumping

Move through your design up to 500 stitches at a time - a huge benefit if you break a thread.

Specification Details

Features and Specifications

Brand Innov-is
Design Computerised
Function Embroidery
Machine Type Embroidery Machine
Use Home
USB Port USB Port
Display Size 7"
Stitch Selection LCD Touchscreen
Type of Screen LCD-Touchscreen 260,000 Colours
Built-In Patterns 318
Embroidery Area in mm 200 x 300
Max Embroidery Speed (Stitches per Minute) 1050
Projector Embroidery Pointer LED droplight
Ultrasonic Sensor Pen to Help Set Embroidery Patterns Position Yes
Eco Mode (Auto Power Off/Sleep Mode) Yes
Case Soft Cover
Hardware Type Electronic
Insertion of Bobbin Quick Set Bobbin
Warranty 5 year warranty (1 year for commercial use)
Adjustable Thread Tension Automatic
Automatic Thread Cutter Yes
Needle Threading System Automatic
