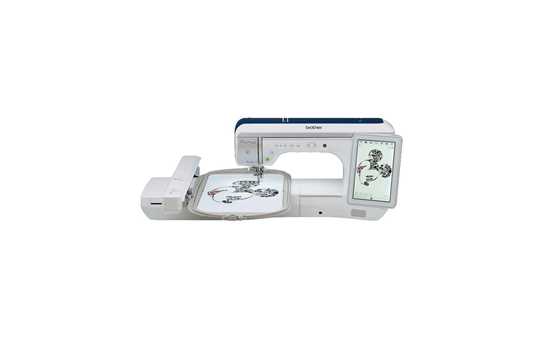

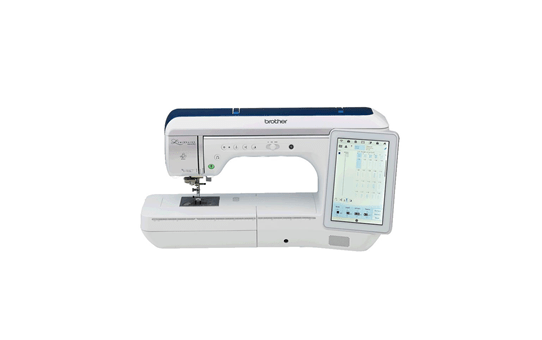

Innov-is Luminaire 2 XP2

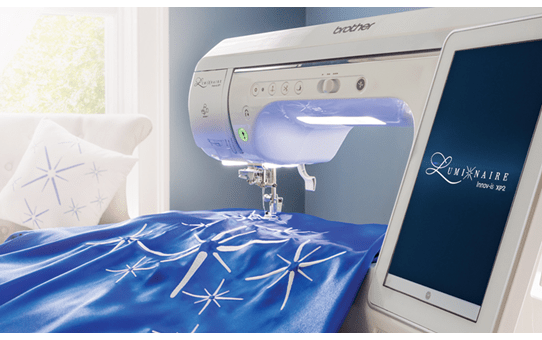

Introducing our flagship sewing, embroidery and quilting machine, offering industry-first technology and our most advanced features yet.

Discontinued

Innov-is Luminaire 2 XP2 Innov-is Luminaire 2 XP2 2 Innov-is Luminaire 2 XP2 3 Innov-is Luminaire 2 XP2 4 Innov-is Luminaire 2 XP2 5 Innov-is Luminaire 2 XP2 6 Innov-is Luminaire 2 XP2 7 Innov-is Luminaire 2 XP2 8 Innov-is Luminaire 2 XP2 9 Innov-is Luminaire 2 XP2 10 Innov-is Luminaire 2 XP2 11 Innov-is Luminaire 2 XP2 12 Innov-is Luminaire 2 XP2 13 Innov-is Luminaire 2 XP2 14 Innov-is Luminaire 2 XP2 15
Back Next
  1. Innov-is Luminaire 2 XP2
  2. Innov-is Luminaire 2 XP2 2
  3. Innov-is Luminaire 2 XP2 3
  4. Innov-is Luminaire 2 XP2 4
  5. Innov-is Luminaire 2 XP2 5
  6. Innov-is Luminaire 2 XP2 6
  7. Innov-is Luminaire 2 XP2 7
  8. Innov-is Luminaire 2 XP2 8
  9. Innov-is Luminaire 2 XP2 9
  10. Innov-is Luminaire 2 XP2 10
  11. Innov-is Luminaire 2 XP2 11
  12. Innov-is Luminaire 2 XP2 12
  13. Innov-is Luminaire 2 XP2 13
  14. Innov-is Luminaire 2 XP2 14
  15. Innov-is Luminaire 2 XP2 15

Now you can enjoy all of the advanced features of the original Luminaire such as revolutionary StitchVision Technology, plus brilliant new quilting innovations and app-based features available from your mobile devices. Available from Brother Luminaire Dealers.



Find a Luminaire Premier Reseller

Find out more about the Luminaire XP2

  • 5-Year Return-to-Base Warranty

Overview

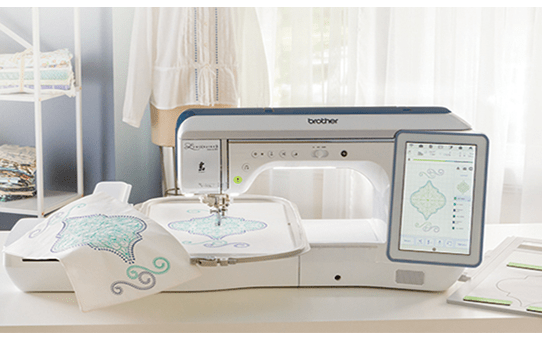

Creative perfection has never been easier. Packed with cutting-edge such as StitchVision Technology and Quiltbroidery, the Innov-is XP2 Luminaire 2 projects embroidery designs, multiple quilting guides and sewing stitches onto your fabric for precise placement.

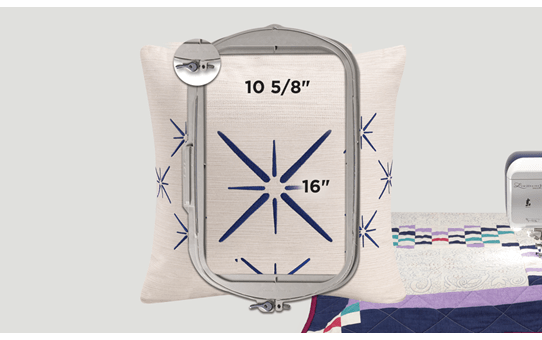

  • 272 x 408mm (10.7" x 16") embroidery area.
  • WLAN data transfer.
  • 13 inches from needle to arm.
  • 10.1 inch touch screen with 34 built in movies.
  • Mobile-App connectivity for stitch monitoring & transferring of images.

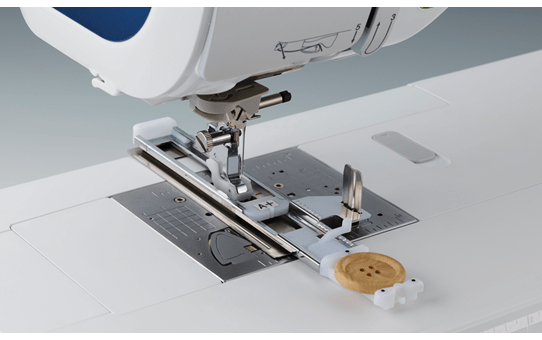

  • Quick-Release Needle Plate with markings for seam allowance & angles and 15 different camera-detecting one-step buttonholes up to 47mm.

Key Features

• Brother-Exclusive ‘Quiltbroidery’ for beautiful, unique quilt designs

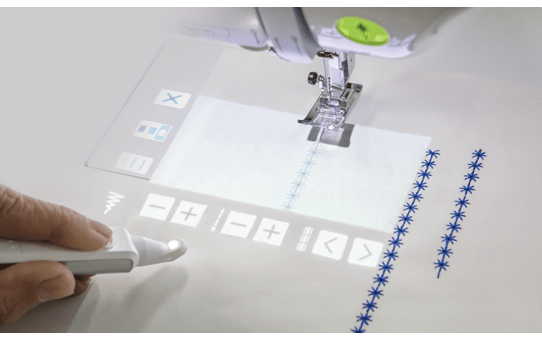

• Revolutionary built-in projector for precise previews and virtually perfect positioning
• Huge embroidery area: 272 x 408 mm (10.7" x 16")

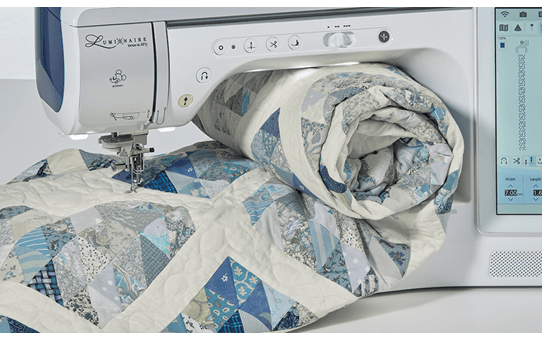

• Super long needle-to arm 13.1" (332 mm) for 65 square inches of workspace
• Over 1,300 built in embroidery designs including 192 built-in Disney designs!
• My Design Snap Mobile App for image capture and transfer via your mobile device
• My Design Center for converting images and developing unique embroidery directly on your machine.
• My Stitch Monitor Mobile App – allows remote monitoring of your machine via your iOS or Android™ mobile device

 The Innov-is Luminaire XP2 has many additional features.



Click here to learn more

What's in the Box

• Embroidery frame 10 x 10cm (4” x 4”)
• Embroidery frame 18 x 13cm (7” x 5”)
• Embroidery frame 27.2 x 27.2cm (10.7” x 10.7”)
• Embroidery frame 40.8 x 27.2cm (16” x 10.7”)
• Scanning frame
• Embroidery Foot “W”
• Zigzag foot “J” (on machine)
• Monogramming foot “N”
• Overcasting foot “G”
• Zipper foot “I”
• Buttonhole foot “A+”
• Buttonhole foot stabilizer
• Blind stitch foot “R”
• Button fitting foot “M”
• MuVit Digital Dual feed Foot
• Regular dual feed foot sole
• Couching Dual Feed foot sole
• Straight stitch foot
• Free motion quilting foot “C”
• Free motion echo quilting foot “E”
• Free motion open toe quilting foot “O”
• 1/4 Inch Quilting Foot (Piecing Foot) with Guide
• Adapter
• Screw (small)
• Needle set (75/11 2 needles, 90/14 2 needles, 90/14 2 needles: Ball point needle (gold))
• Twin needle 2.0/11 needle
• Ball point needle set (75/11 2 needles ball point for embroidery HAX130EBBR)
• Bobbin × 10 (one is on machine)
• Seam ripper
• Scissors
• Cleaning brush
• Eyelet punch
• Screwdriver (small)
• Screwdriver (large)
• Multi-purpose screwdriver
• Spool cap (small)
• Spool cap (medium) × 2 (one is on machine)
• Spool cap (large)
• Thread spool insert (mini king thread spool)

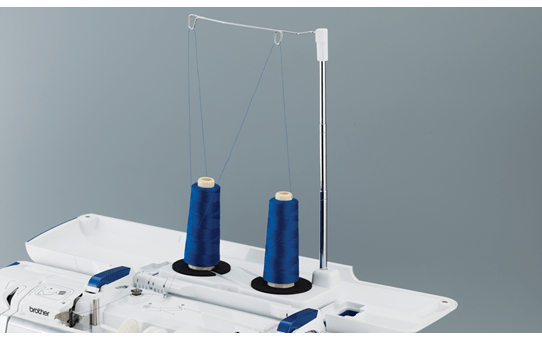

• Kind Spool Thread Stand
• Bobbin clip × 10
• Spool felt (on machine)
• Spool net × 2
• Embroidery needle plate cover
• Knee Lifter
• Alternate bobbin case (no colour on the screw)
• Standard bobbin case - green marking on the screw (on machine)
• Straight Stitch Needle Plate
• Cord guide bobbin cover (with single hole)
• Bobbin cover (with centre mark)
• Bobbin cover (on machine)

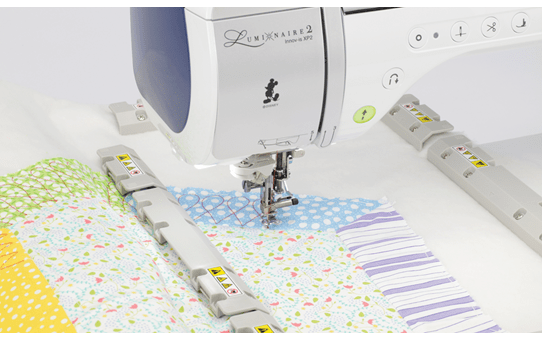

• Magnet × 6
• Embroidery bobbin thread
• Embroidery Positioning Sticker (Snowman Sticker)
• White calibration stickers (solid)
• Stabilizer material
• Grid sheet set
• Chalk pencil

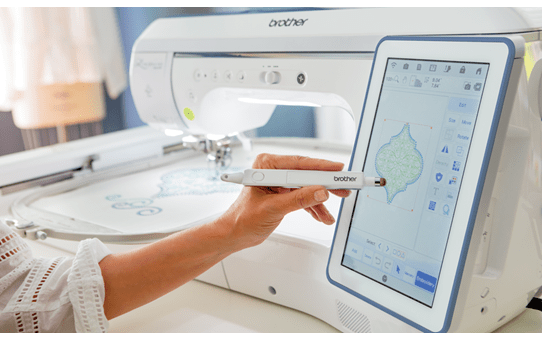

• Dual purpose stylus (battery not included)
• Dual purpose stylus holder
• Accessory Box
• Yarn guide for sewing couching
• Embroidery couching foot “Y”
• Yarn guide for embroidery couching
• Yarn threader
• End point stickers (4 sheets)
• Multi-function Foot Controller
• Dust cover
• Operation manual (Sewing)
• Operation manual (Embroidery)
• Operation Manual Addendum
• Quick Reference Guide
• Embroidery Design Guide
• Disney Design Guide









Included accessories subject to change without notice.



Specification Details

Features and Specifications

Brand Innov-is, Luminaire
Design Computerised
Function Embroidery, Quilting, Sewing
Machine Size X-Large
Machine Type Embroidery Machine, Sewing Machine
Skill Level Advanced
Use Business, Home
USB Port 2 Hosts (2.0/2.0) / 0 Slave
WLAN Function Yes
Display Resolution (Pixel) 800 x 1280
Display Size 10.1"
Display Size 257 mm
Stitch Selection LCD Touchscreen
Type of Screen High-Resolution IPS LCD-Touchscreen
Brother Mobile Device App My Stitch Monitor, My Design Snap
Built-In Lettering Styles (Embroidery) 24（22 Alphabet, 2 Cyrillic)
Built-In Patterns 1322, including 192 Disney characters
Camera To Help Set Embroidery Patterns Position (Camera Sensor) Yes (1M pixel, Wide-view)
Camera with Scan Function (Built-in Camera) Yes - InnovEye Plus Technology
Colour Shuffling Yes
Couching Embroidery Couching embroidery foot and thread guide included
Creating a Custom Thread Table Yes
Decorative Fill 42 decorative fills
Deselect Region Yes
Echo Quilting Around the Motif Button Yes
Embroidery Area in mm 270 x 410
Embroidery Frame Clearance for Bobbin Change Yes
Extension Wide Table Yes
Font Editing Functions/Multiple Lines and Alignment (L-C-R) Yes
Font Size Selection (L-M-S) Yes
Frames Included Embroidery Frame: 4 x 4" (100 x 100 mm), Embroidery Frame: 10.7 x 16" (272 x 408 mm), Embroidery Frame: 5" x 7" (130 x 180 mm), Embroidery Frame: 10.7" x 10.7" (272 x 272mm), Scan Frame
High Speed Camera Scanning Yes
Jump Stitch Trim Yes
LED Pointer Yes
Line Motifs 17, including E and V applique stitches, and with flipping capability.
Max Embroidery Speed (Stitches per Minute) 1050
Multiple Line Input Yes
My Design Center Yes
New UI (Slide Scroll Operation) Yes, Enhanced (Slide Scrolling, Pinch-in/out, Flick)
Number of Spool Stands 2 plus 2 (foldable)
On Screen Video Tutorials Yes
Pattern - Size, Change Rotation & Mirror Yes
Progress Indication Bar Yes
Projector 3x 5'' area, DLP type
Projector Embroidery Pointer Yes
Quiltbroidery Auto Split of quilt block sashes function with 30 built-in designs (incl. 5x Hexagon/5x 2-colour), Echo Quilting.
Realistic Preview of Patterns Yes
Redo/Undo When Embroidery Editing Yes
Single Colour Pattern Converter Yes
Snowman Embroidery Positioning Marker Yes
Stippling Function Trapunto-like Camera Scan and Add Stippling/ Stippling in Embroidery Edit/ Free Hand Quilting
Zoom Up to 1600% zoom with an easy pan tool
Eco Mode (Auto Power Off/Sleep Mode) Yes
Accessory Box Yes
Accessory Compartment Yes
Bobbin Type Horizontal
Hardware Type Electronic
Insertion of Bobbin Quick Set Bobbin
Instructional Manual PDF Viewer Yes
Number Of Needles 1
One-Finger Needle Plate Removal Yes
On-Screen Video Help 40 instructional videos and a built-in PDF manual
Adjustable presser foot Electronic
Automatic reverse / reinforcement stitch Yes
Couching Sewing mode thread guide and Digital Dual Feed Couching Sole included
Digital Dual Feed Included, with two different soles
Bobbin Work Optional
Built-In Lettering Styles 3
Camera Detecting Buttonhole foot Yes
Circular Sewing Optional
Combine stitches Yes
Customizable Presser Foot Movement Yes
Direct Dual Feed Yes
Drop feed setting Electronic
Electronic slide speed control yes

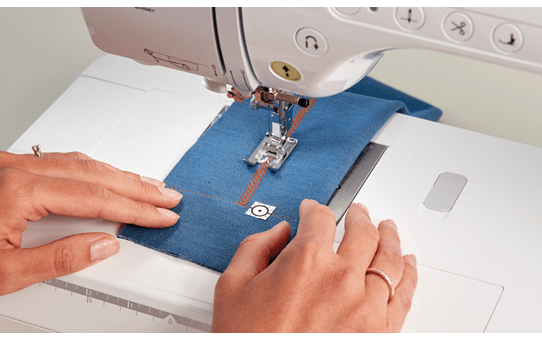

End Point Sewing Function Yes, using built-in camera and Snowball End Point Sticker
Extension Wide Table Optional
Feed Dog 7 Point
Free arm sewing Yes
Knee lift 5 Steps Electronic
Lock stitch button Yes
Max. Sewing Speed (Stitches per minute) 1050
Max Sewing Speed for Decorative Stitches 710spm for wide stitches
Mechanical Dual Feed Optional
Mirror imaging Yes
Multi-Directional Sewing Yes (up to 8 sideways)
Foot controller Yes
My Custom Stitch Yes

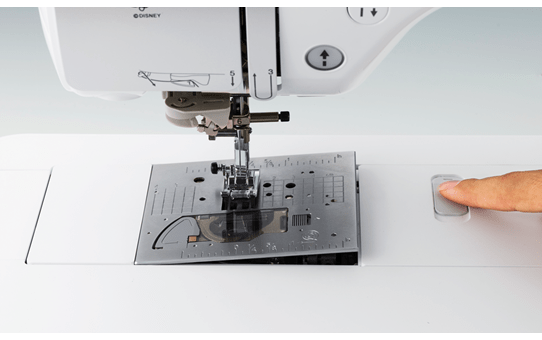

Needle Plate One-touch needle plate removal and needle plate detector for safe operation. Straight stitch needle plate included.
Needle Positions 57
Needle Stop Position Control Up/Down Yes
Number of Included Presser Feet 16 (2 embroidery, 14 sewing)
Number of Sewing Stitches Including Buttonholes 154 utility, 670 decorative, 10 Disney, 15 one-step buttonholes (up to 47mm)
Pivot function Yes
Presser Foot Levelling Button Yes

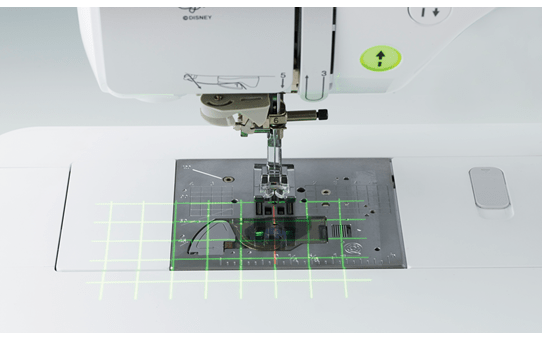

Projector Gridline Marker Yes (gridlines, 3 colours)
Projector Guideline Marker Yes
Repeated single sewing Yes
SFDS (Square Feed Drive System) Yes
Snap on Presser Feet System Yes
Speed control customised for zigzag width Yes
Workspace (mm) 333
Warranty 5 year warranty (1 year for commercial purposes)
Adjustable Bobbin Winding Amount Yes
Adjustable Thread Tension Automatic
Automatic Thread Cutter Yes
Bobbin Winder Independant
Lower Thread Sensor Yes
Needle Threading System One-touch needle threading button
Upper Thread Sensor Yes
Machine Dimension 690 x 322 x 349 mm
Weight 19.6 kg
