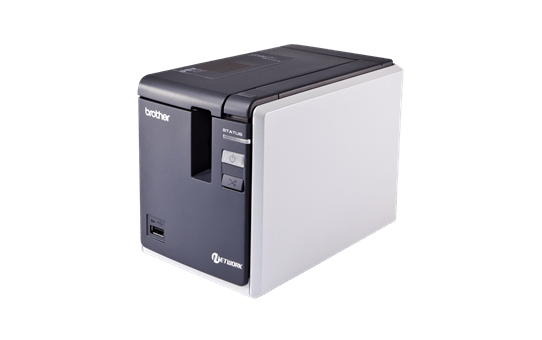

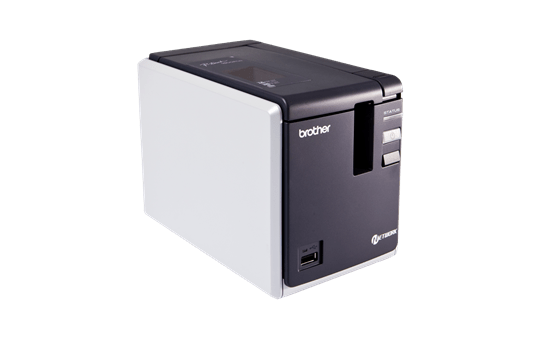

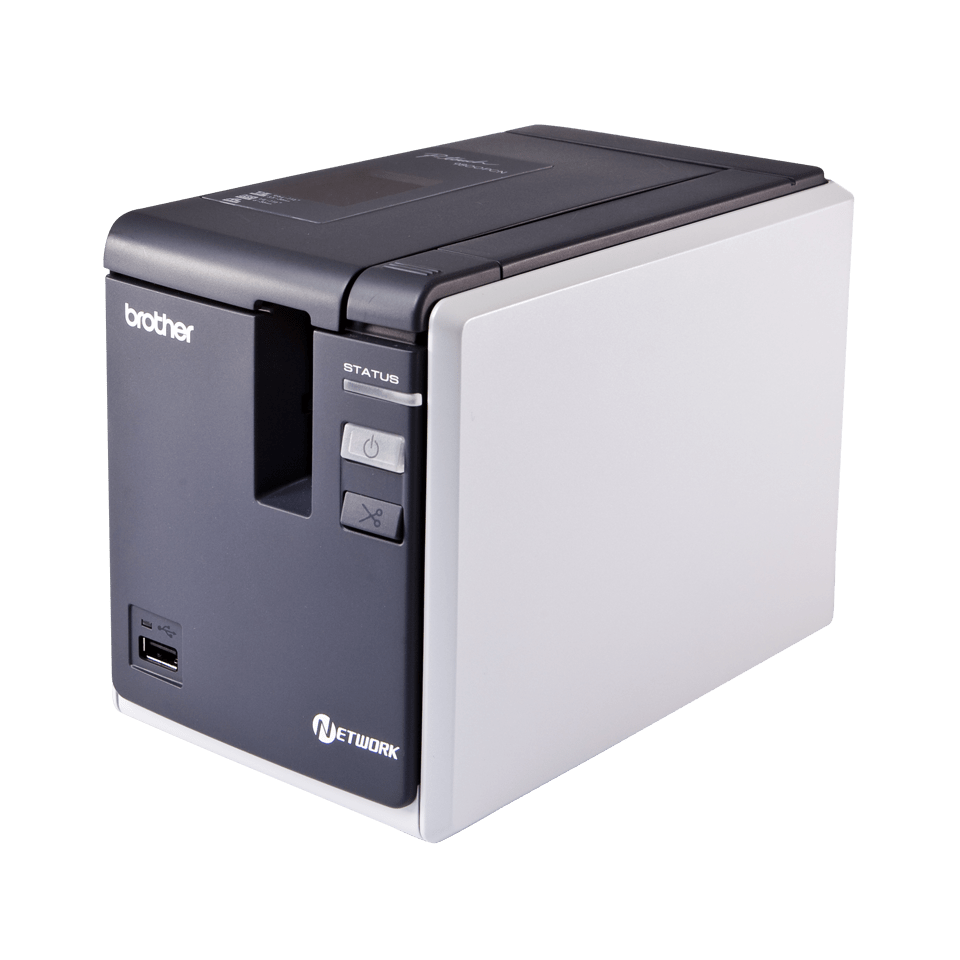

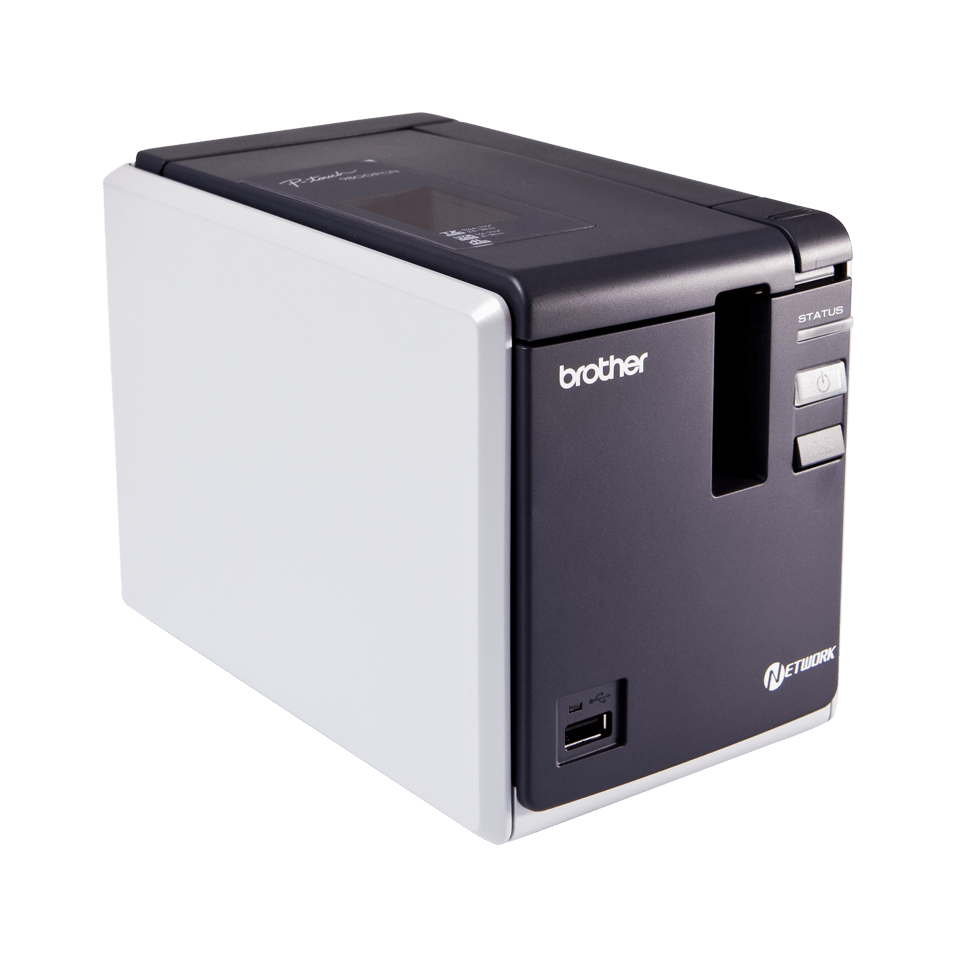

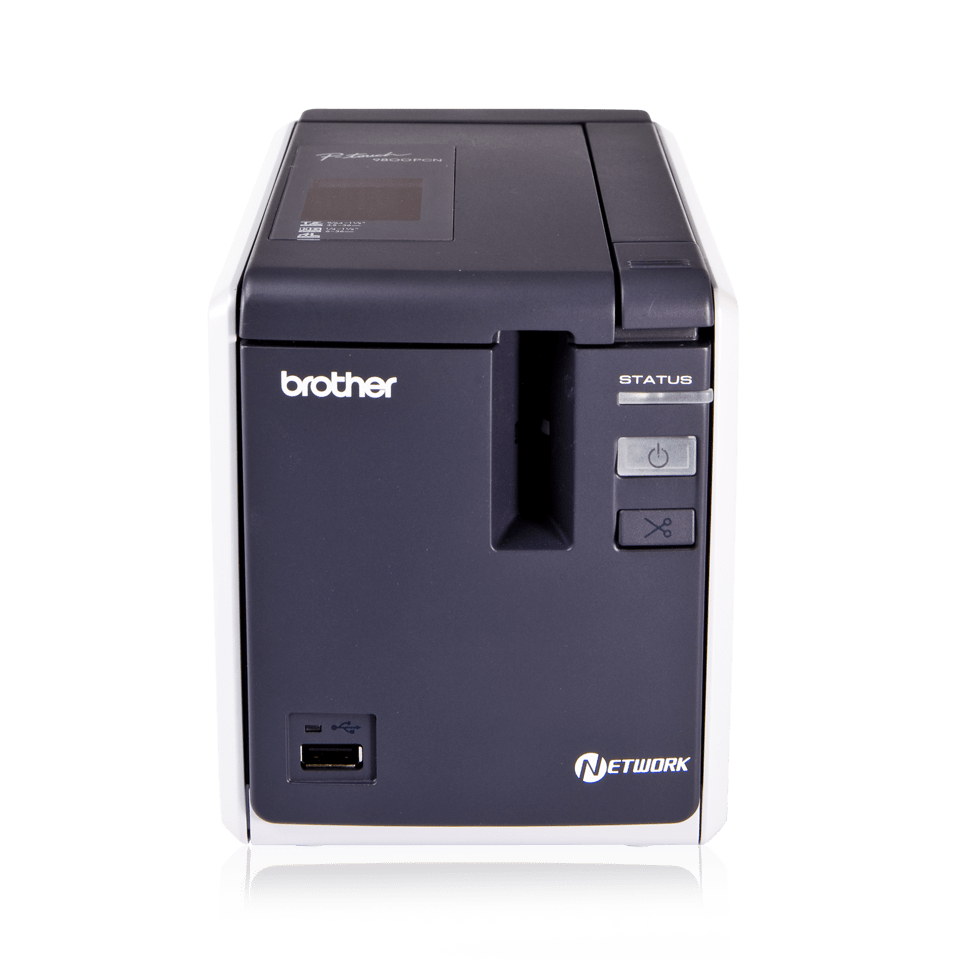

PT-9800PCN Professional Network Label Printer

Ideal for the busy workplace with multiple users

This product has been discontinued. Our nearest equivalent is the PT-P950NW.

Keeping labelling clear and consistent can be a problem when everyone is producing their own versions from different devices and printers. That’s when the network-ready PT-9800PCN really comes into its own.

Key Features

  • USB and network connectivity + USB host port for external devices (eg barcode scanner)
  • Prints up to 36mm wide tapes
  • Up to 80mm/sec (HG tape) and 20mm/sec (TZe tape)
  • Up to 360dpi print resolution
  • Up to 27mm print height
  • Built-in automatic tape cutter

Specification

Features and Specifications

AC adaptor Yes
Machine type PC connectable
Maximum tape width (mm) 36
Usage type Industrial
Buttons Power, Feed, Cut
Cutter type Full and half, Auto
Flash RAM 7 MB
Housing colour Dark grey & pearl white
Housing design Desktop
Image upload from PC Yes
LED Status
Real-time clock Yes
Template upload from PC Yes
Unit setting (mm / inches) Yes
Width TZ tape: 3.5, 6, 9, 12, 18, 24, 36 mm - HG tape: 6, 12, 24, 36 mm
Type TZ and HG tape
Adapter type AD-9100ES 100-220 auto switching AC adapter
USB interface ver 2.0 full speed
Dimensions 116mm (W) x 193mm (D) x 140mm (H)
Weight without carton (includes toner & drum) 1.58 kg
AC adaptor Yes
AC adaptor power cord Yes
Label design software CD-ROM
Software P-Touch editor
Software disc 1
Tape cassettes 36 mm HG-261 black on white label cassette (8mm)
USB cable Yes
User guide Yes
Warranty card Yes
Windows Windows 7, Windows 8, Windows Vista, Windows XP
Block format Yes
Download contents from Brother cloud via P-Touch editor
Line format Yes
Rotate text Yes
Text alignment Centre, Justify, Left, Right
Text widths 2x, Normal
Underline Yes
Vertical printing Yes
Database file compatibility csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Download content from Brother cloud Yes
Image format support DIB, GIF, ICO, JPG, PNG, TIFF, WMF
Label orientations Horizontal, Vertical
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Sequential numbering 1 - 5000, A - Z, a - z
Table Yes
Tape size detection Yes
Text alignment Centre, Justified, Left, Right
Typestyles Bold, Italic, Normal, Shadow
Vertical print Yes
AC adaptor ADS-9100ES 100-220 auto switching AC adaptor
Tape widths TZ tape: 3.5, 6, 9, 12, 18, 24, 36 mm - HG tape: 12, 24, 36 mm
Barcode scanner compatibility COD3E39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN-13(JAN13), EAN-8, GS1 DataBar (RSS) (Omnidirectional, Truncated, Stacked), PDF417 (Standard, Truncated, Micro), QR Code (Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode
Warranty 3 year back to base warranty (upon registration)
