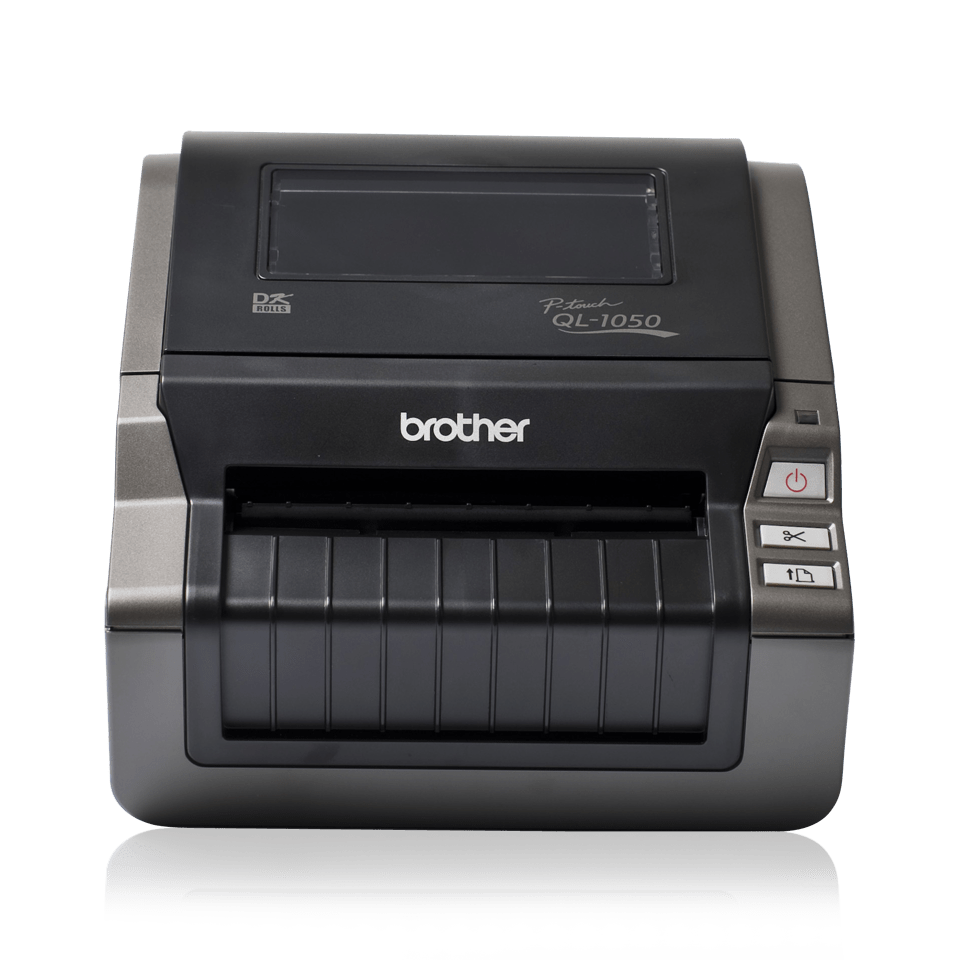

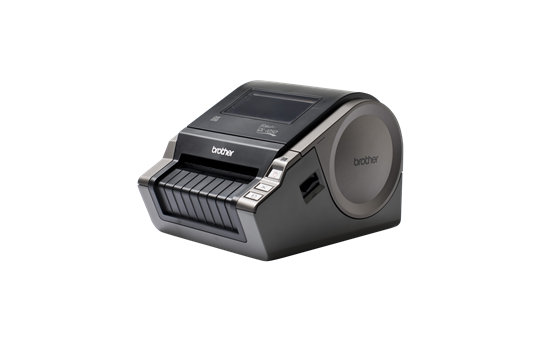

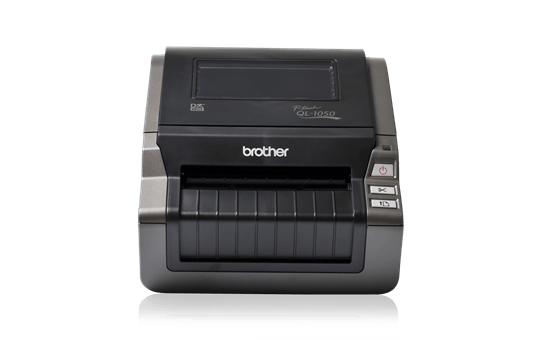

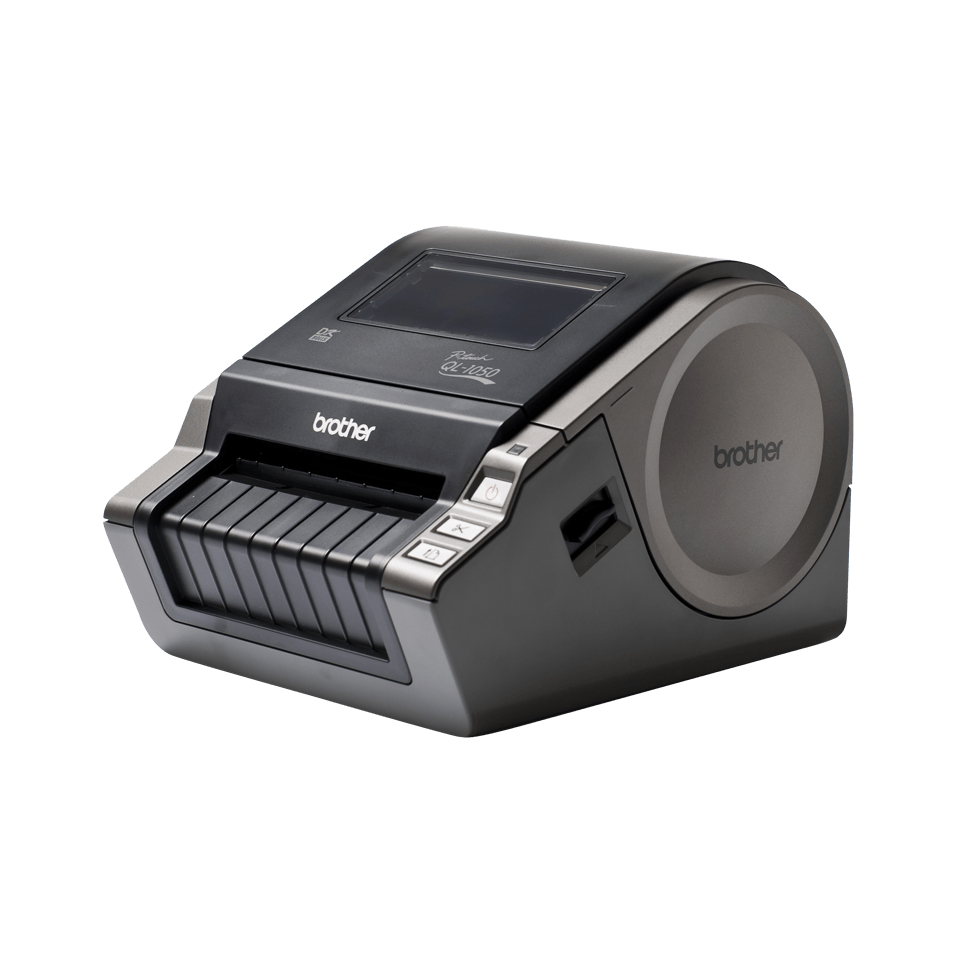

QL-1050 Wide Label Printer

The heavy-duty label printer for the busy office

This product is now discontinued. You can find the nearest equivalent here: QL-1100

Label printers now need to be more versatile and robust than ever to keep up with businesses like yours – and the QL-1050 is more than capable. Offering high quality labels in sizes from 12mm up to a massive 102mm wide, the 300dpi resolution is perfect for consistent barcode and logo reproduction.





Key Features

  • 102mm label width (DK labels) and up to 98mm height
  • 300dpi print resolution
  • Prints up to 69 labels per minute / 110mm per second
  • High-speed automatic tape cutter
  • Easy to install label rolls
  • USB and RS-232 serial port as standard

Overview

Ideal for high-volume environments needing a larger label

Label printers now need to be more versatile and robust than ever to keep up with businesses like yours – and the QL-1050 is more than capable.

Offering high quality labels in sizes from 12mm up to a massive 102mm wide, the 300dpi resolution is perfect for consistent barcode and logo reproduction. And with printing speeds of up to 69 labels per minute and a built-in heavy-duty automatic cutter, high volumes are no problem.

USB and RS-232 serial ports allow you to simply connect this versatile machine with any relevant equipment, and you can print directly from MS Word, Excel and Outlook.

With durability built in, the QL-1050 is a truly dependable solution.

Specification

Features and Specifications

Maximum label width (mm) 102
Office Office
Built-in power supply Yes
Housing colour Black and grey
Memory capacity 2 MB
Memory locations 99
Technology Direct thermal
Template upload from PC Yes
Serial RS-232C
USB interface 1.1 or later
Dimensions 170mm (W) x 222mm (D) x 148mm (H)
Weight without carton (includes toner & drum) 1.7 kg
Power supply cord Yes
Software disc CD-ROM (Software, Driver, User Guide)
Tape cassettes DK11241 40 large shipping labels (102mm x 152mm) - DK2205 8m continuous paper tape roll (62mm x 8m)
USB cable Yes
User guide Yes
Warranty card Yes
Quick setup guide Yes
Windows Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP
1 dimensional barcode symbologies CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8
2 dimensional barcode symbologies PDF417 (Standard, Truncated, Micro), QR Code (Model 1, Model 2, Micro), Data Matrix
Bitmap fonts Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Maximum label width 102 mm
Maximum print length 3000 mm
Maximum print width 98.6 mm
Outline/Vector fonts Helsinki, Brussels, Letter Gothic
Resolution (dpi) 300 x 300
Standard print speed 69 labels per minute
Standard print speed 110 mm per second
Database file compatibility csv, Microsoft Access, Microsoft Excel
Date and time stamp Date, Date and time, Time
Fonts All installed truetype fonts
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Text alignment Centre, Justify, Left, Right
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround
Vertical print Yes
SDK (Software Development Kit) Yes
Rolls DK rolls (DK Die-cut Labels / DK Continuous Length Tape)
Warranty 3 year back to base warranty (upon registration)
