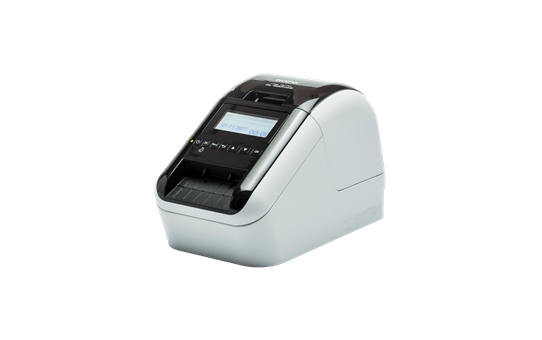

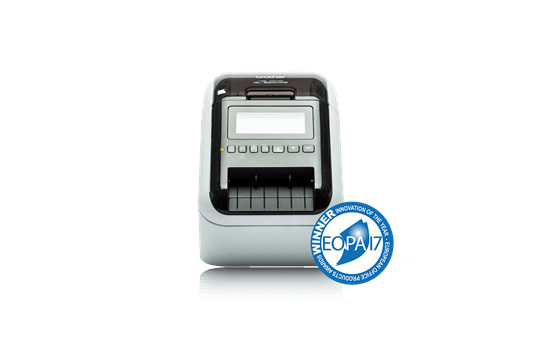

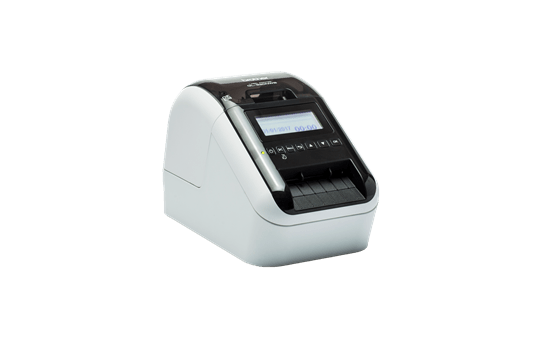

QL-820NWB Wireless Network Desktop Label Printer

The flexible label printer which integrates with your connectivity requirements

$349.95 RRP (Inc. GST)
Find a local store

At a glance

  • p-touch-editor

Print labels from your PC, Mac, smartphone or tablet using USB, Ethernet, Wi-Fi and Bluetooth. Or alternatively use it in standalone mode by selecting and printing labels previously designed and uploaded to the memory, using the integrated backlit LCD display. When used with special rolls, you can print labels that can contain both black and red print without needing any ink.

And when you can print custom sized labels up to one metre in length using the built-in cutter and continuous rolls, you can see why this is the most advanced label printer available.

Key Features

  • USB, Ethernet, Wi-Fi and Bluetooth connectivity with support for MFi and AirPrint
  • Print on pre sized labels or continuous rolls up to 62mm wide. Or print labels stored in memory using the integrated control panel.
  • Large backlit LCD display for easy set-up and operation
  • Print in black and red without needing ink or toner
  • Built-in cutter to create your own length labels
  • Optional rechargeable Li-ion battery base for mobile labelling applications

  • 4-Year Return-to-Base Warranty
  • 24_7 Helpdesk
  • Free Recycling

Overview

Brother QL-82NWB on deli counter with label printed

Print labels without a computer

The QL-820NWB works as a traditional label printer - simply design your label on your PC or Mac, and then print. In addition, your commonly used labels can be uploaded to the internal memory locations. Then, simply scroll through the stored labels using the control panel to select and print the label. You can even print the current date and time or let the printer calculate a future one, making it ideal for printing labels for food packaging and "tested on / next test due" applications.

QL-820NWB showing connectivity option - USB cable

Full range of connectivity

With USB, wired Ethernet, Wi-Fi, and Bluetooth as standard, you have all your options covered. AirPrint and MFi certification (Made for iPod/iPhone/iPad) ensures maximum compatibility with Apple products too.

QL-810W with iPad tablet visitor management

Print from PC, Mac, iOS and Android devices

Choose from several options for designing and printing labels. Download for free the P-touch Editor label design software for PC and Mac to design labels with text, barcodes, images and frames. Alternatively, head on over to your app store to download the free iPrint & Label app for iOS and Android, then quickly create and print labels from your mobile devices, wirelessly.

Print a label with address from laptop

Microsoft Office and database printing

The P-touch Editor add-in for Microsoft Office (Windows only) allows you to select and print data directly from within Word, Excel and Outlook with just a click! Or if you have text stored in an Excel or .csv file, you can import this into P-touch Editor. Simply place each field on your label layout to print many labels with the same format (design). Ideal for printing postage address, product and pricing labels.

Close-up of QL-820NWB LCD graphic display

Integrated LCD for easy operation

Easily select the labels stored in memory that you wish to print, thanks to the large backlit graphic display. Setting up and configuring the machine is made much easier, as is troubleshooting if any errors occur with on-screen guidance on the problem and how to easily resolve it.

Optional Li-ion battery base for QL-810W and QL-820NWB

Optional Li-ion battery base

There are situations where you may need to print labels away from a power source, such as use on a portable trolley and printing from a tablet in retail, healthcare or similar industries. The optional Li-ion battery base has a fast charge function, and lasts for thousands of labels on a full charge.

8-DK labels

Large range of labels for any application

The QL series label printers use Brother DK rolls - that easily slot-in for fast label changes. Several types are available:

  • Pre-sized die-cut adhesive labels in paper and plastic film material.
  • Continuous adhesive labels in paper and plastic film material that can be cut to the length you need (up to 1 metre).
  • Non-adhesive card ideal for receipts and name badges.
  • Removable adhesive for repositioning labels.

Industry Uses

Confidential documents

Office

With wired and wireless network, your whole workgroup can print highly visible black and red office labels using our two-colour continuous length roll. Also print in black on both continuous roll and pre-sized labels.

Create on-demand address labels, storage box labels, file folder labels, name badge labels, indoor temporary signage, office supplies labels, office equipment labels, office furniture labels, shelf labels, cabinet labels and more.

Labelled jar of food

Food Industry

Print standout compliant food labels with our two-colour continuous length roll and highlight allergens, use-by dates and special offers in black and red. With a standalone LCD touch panel and optional battery base, this label printer is perfect for printing labels at the point of preparation.

Create ingredient/allergen labels, food preparation labels, fridge shelf labels, barcode labels, product labels, pricing labels and more.

Shirts on sale

Retail

Give your sales a boost with eye-catching price tags and offers, printed in black and red on our two-colour continuous roll. This label printer has a standalone LCD touch panel and optional battery base which is ideal for printing labels on the shop floor.

Create product labels, pricing labels, promotion/special offer labels, barcode labels and indoor temporary signage.

ID card

Visitor Management

With attention grabbing black and red ID badges printed on our two-colour continuous roll you can improve visitor management. Simply highlight key information including access areas, fire points, dates and times. Wi-Fi and Bluetooth connection enables you to easily print labels from anywhere and across multiple devices including smartphones and tablets via the app. For a total mobile solution there is an optional battery base available.

Print visitor badge labels, indoor temporary signage, address labels and more.

Specification Details

Features and Specifications

Maximum label width (mm) 62
Database upload from PC Yes
Housing colour Glossy black and white
Image upload from PC Yes
Memory capacity 6 MB
Memory locations 255
Technology Direct thermal
Template upload from PC Yes
Type DK rolls (DK die-cut labels / DK continuous length tape)
AirPrint Yes
Bluetooth Ver 2.1 EDR
MFi Yes
Bluetooth profiles SPP/OPP/BIP/HCRP
USB interface Ver 2.0 (full speed)
Wi-Fi Direct Yes
Wired network interface 10/100 BASE-TX
Wireless network interface IEEE 802.11 b/g/n
Dimensions 125mm (W) x 234mm (D) x 145mm (H)
Weight without carton (includes toner & drum) 1.16 kg
AC adaptor Yes
AC adaptor power cord Yes
Tape cassettes 29mm x 90mm black print on white standard address labels (100 labels) - 62mm black/red print on continuous length paper tape (5 meters)
USB cable Yes
User guide Yes
Warranty card Yes
Quick setup guide Yes
Wireless network security WEP, WPA-PSK/WPA2-PSK (TKIP/AES), LEAP (CKIP), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES)
1 dimensional barcode symbologies CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
2 dimensional barcode symbologies PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION
Black and red printing capability Yes
Bitmap fonts Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Maximum label width 62 mm
Maximum print width 58 mm
Outline/Vector fonts Helsinki, Brussels, Letter Gothic
Resolution (dpi) 300 x 300, 300 x 600
Standard print speed 110 labels per minute
Standard print speed 176 mm per second
Database file compatibility csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 126
Label orientations Horizontal, Vertical
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Sequential numbering 1 - 9999 / A - Z / a - z
Text alignment Centre, Justify, Left, Right
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Vertical print Yes
SDK (Software Development Kit) Yes
Warranty 4 years
