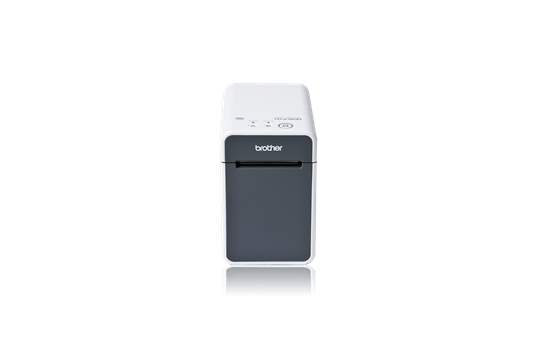

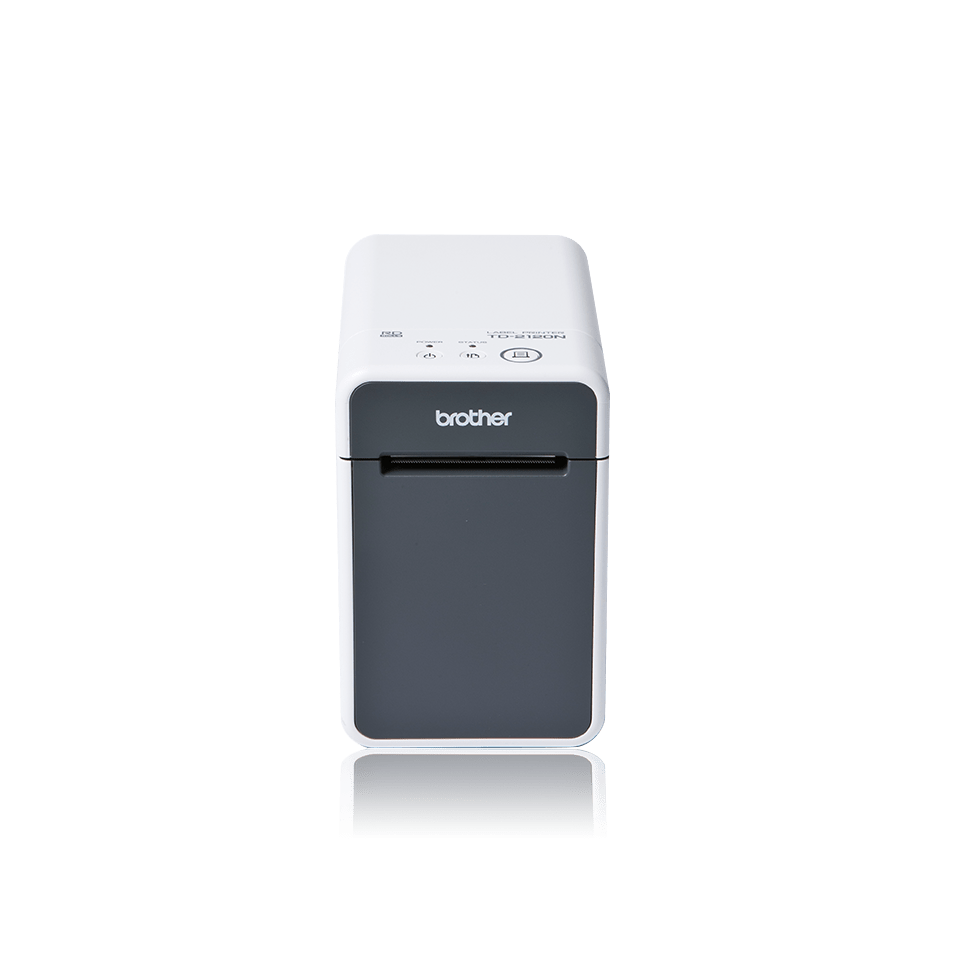

TD2120N

The versatile professional desktop labeller

At a glance

  • usb-icon
  • p-touch-editor

With a range of specialised features and print resolution up to 203dpi, the TD-2120N is the perfect label printer for warehousing, logistics, manufacturing and retail - plus any other sector where you need to be able to print high-quality receipts, labels or wristbands at your desk or on the move.

Key Features

  • Up to 6 inches per second print speed
  • 203dpi print resolution
  • Network capability + optional accessories available (touch panel display, label peeler, rechargeable battery, wireless LAN & Bluetooth)
  • USB and serial connectivity
  • 32MB RAM, 16MB Flash
  • ZPL II printer language

What sets us apart

  • 24-7-helpdesk

Overview

High-volume labelling for the network or on the move

A compact machine with the speed, features and media capacity of a desktop printer plus the option to get out and about if you need to, the TD-2120N allows you to print professional quality custom labels or receipts at 200dpi, wherever you are in the workplace.



Printing from your existing systems is simple thanks to our range of software developer kits, plus the optional wireless means you can connect direct from your mobile device or PC for ultimate convenience. You can also add a battery and touchscreen to go truly portable.



The flexible TD-2120N can accommodate rolls of up to 5” in diameter, meaning less time wasted reloading media, plus there’s a choice of optional extras that ensure it’s perfectly suited to your business needs.



Specification

Features and Specifications

Maximum label width (mm) 62
Office Industrial
Buttons Power, Feed
Memory capacity 6 MB
Serial RS232C Original serial cable -PA-SCA-001
USB interface USB Ver. 2.0 (Full Speed) (mini-B, Peripheral)
Wired network interface 10/100BASE-TX
Dimensions 110 mm (W) x 215 mm (D) x 172 mm (H)
Weight 1.34 kg
AC adaptor Yes
Label design software Included
Software disc CD ROM
USB cable Yes
User guide Yes
Quick setup guide Yes
Wireless network Wireless LAN IEEE802.11 b/g/n
Wireless network security Infrastructure Mode/Adhoc Mode
Windows Windows 7, Windows 8, Windows Vista, Windows XP
Maximum print length 1000 mm
Maximum print width 56 mm
Resolution (dpi) 203
Standard print speed 152.4 mm per second
Supported commands P-touch Template 2.0 (includes ZPLII® emulation), Raster, ESC/P
SDK (Software Development Kit) Yes
Optional accessories Rechargeable Battery (PA-BT-4000LI), Battery Base (PA-BB-001), Touch Panel Display (PA-TDU-001), Label Peeler (PA-LP-001), Bluetooth Interface (PA-BI-001), WLAN Interface (PA-WI-001), Serial Adapter (PA-SCA-001)
