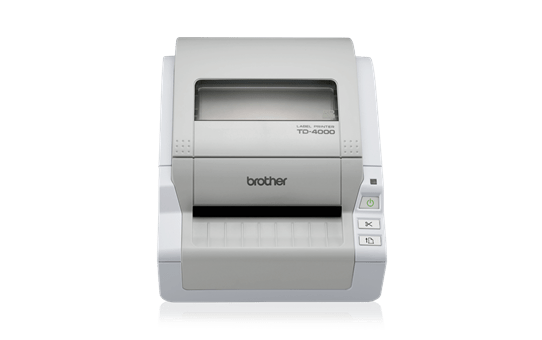

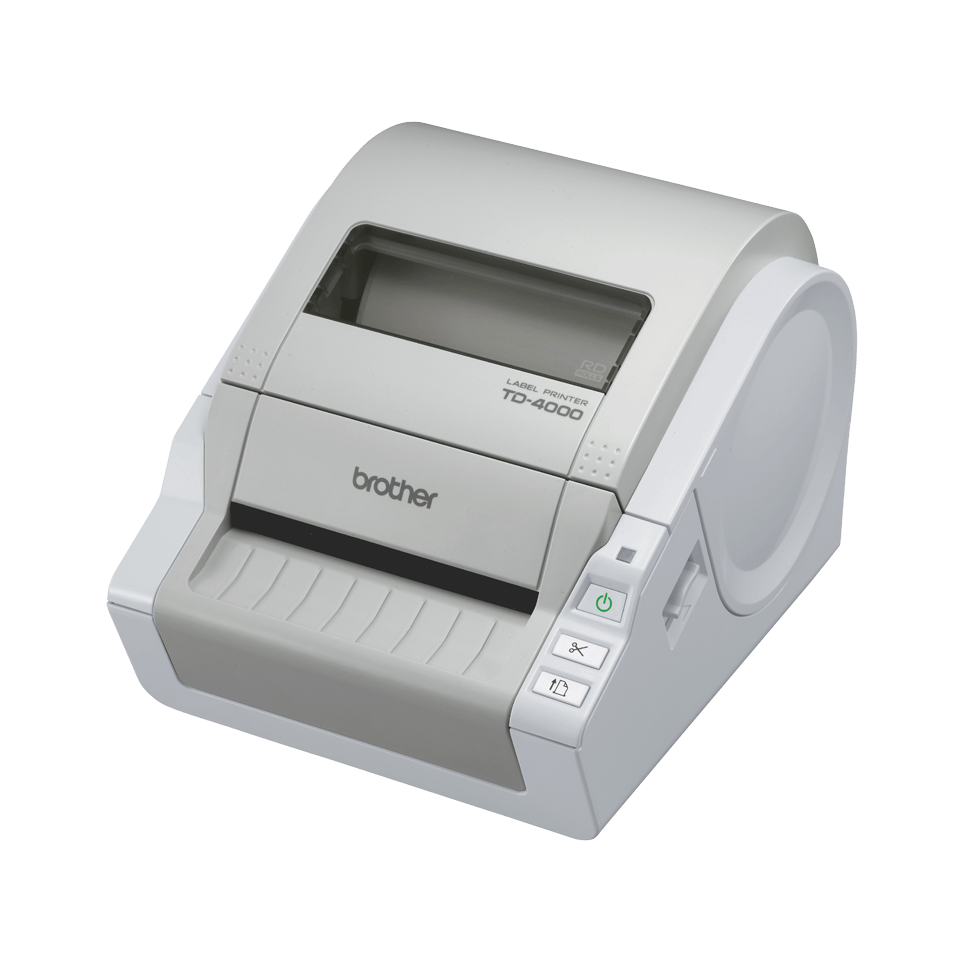

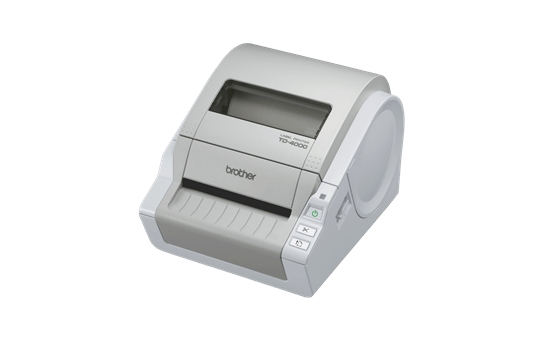

TD-4000 Professional Wide Label Printer

The industrial labeller for when size matters

At a glance

  • usb
  • p-touch-editor

Labels often have to incorporate a considerable amount of important information, so you need a printer with the capacity to put it all together efficiently and with consistently high-quality results.

Key Features

  • 102mm label width (RD labels)
  • 300dpi print resolution
  • Up to 92 labels per minute print speed
  • High-speed automatic tape cutter
  • Easy to install label rolls
  • USB and RS-232 serial port as standard

  • 24_7 Helpdesk

Overview

For the larger label

Labels often have to incorporate a considerable amount of important information, so you need a printer that can put it all together efficiently and with consistently high-quality results.

The TD-4000 prints at up to 110mm per second and 300dpi, with a built-in automatic cutter. Your labels can be up to 102mm wide, and anywhere from 25mm to 3m long.

The TD-4000’s P-Touch Editor software supports barcode printing, and also allows you to import graphics and date for a truly personalised solution – so this feature-packed professional label printer always delivers.

Specification

Features and Specifications

Maximum label width (mm) 102
Office Industrial
Buttons Power, Feed, Cut
Flash RAM 2 MB
Housing colour Light grey & pearl white
LED Status
Serial RS-232C Serial (9 pin)
USB interface USB Ver. 2.0 (Full Speed)
Dimensions 173 mm (W) x 229 mm (D) x 158 mm (H)
Weight without carton (includes toner & drum) (without RD rolls) 1.81 kg
AC adaptor power cord Yes
Others 102 mm continuous black on white label roll (2 metre starter roll)
Software disc CD ROM containing software, drivers and user guide
Supplies 51 mm x 26 mm black on white die cut label roll (60 labels)
USB cable Yes
Windows Windows 7, Windows Vista, Windows XP
Bitmap fonts Helsinki, Letter Gothic Bold, San Diego, Brougham, Brussels
Copies 1-9999 (ESC/P P-touch Template)
Label detection sensor Yes
Label margins 3 mm - 126 mm
Maximum label width 101.6 mm
Maximum print length 3000 mm
Maximum print width 98.6 mm
Mirror printing Yes
Outline/Vector fonts 33 - 400 dots (22 sizes)
Resolution (dpi) 300 x 300
Sequential numbering 1 - 9999 / A - Z / a - z
Standard print speed 110 mm per second
Supported commands Raster mode, ESC/P, P-touch template mode
Database file compatibility csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Fonts All installed truetype fonts / 17
Frames 126
Label length settings 25 mm (minimum) - 3 metres
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround
Languages English / Danish / Dutch / French / German / Italian / Norwegian / Portuguese / Spanish / Swedish / Finnish / Czech / Polish / Hungarian / Simplified Chinese / Russian / Turkish / Japanese
Rolls RD rolls (die-cut and continuous)
