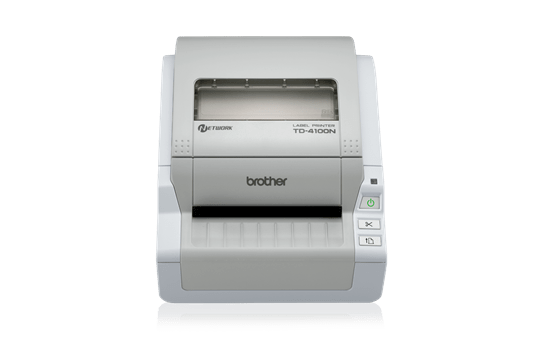

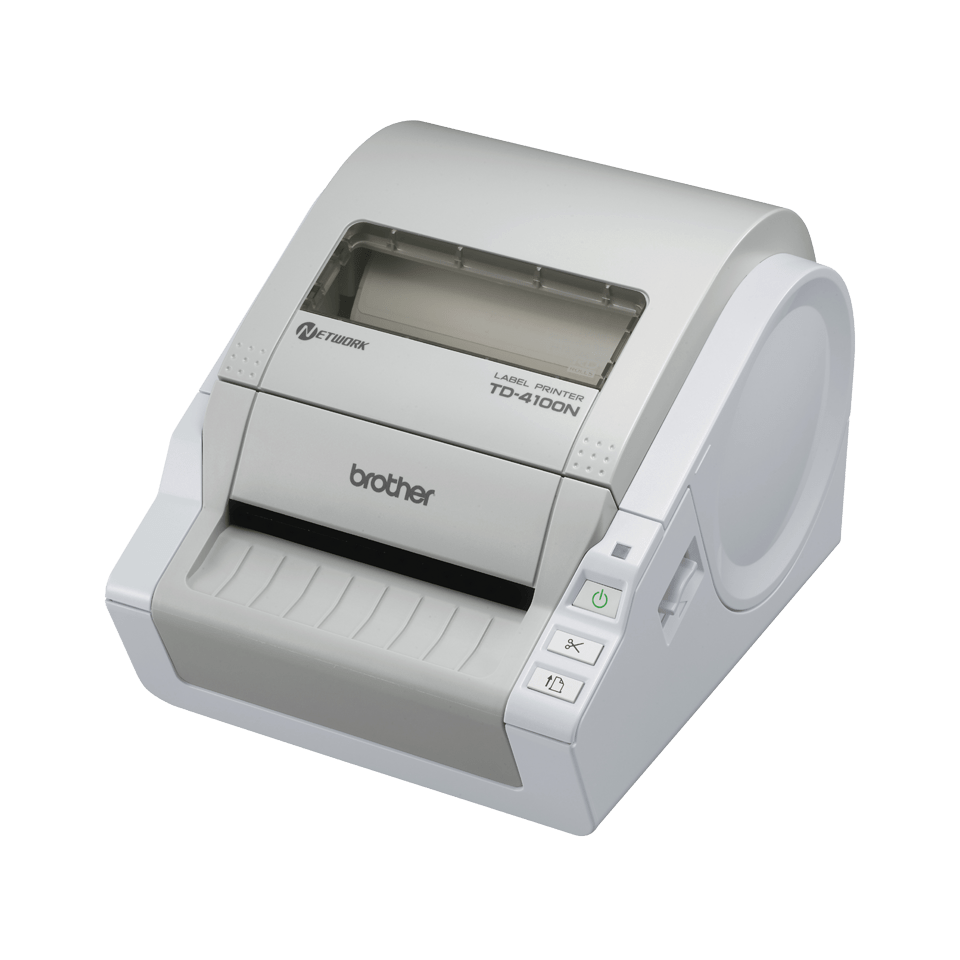

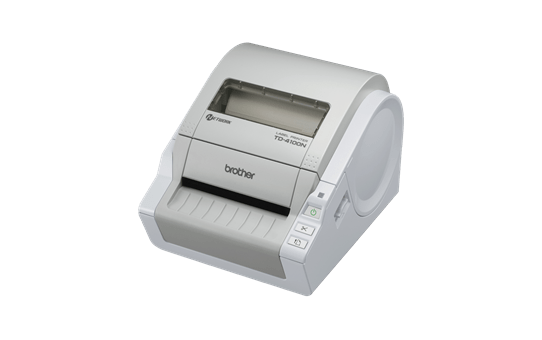

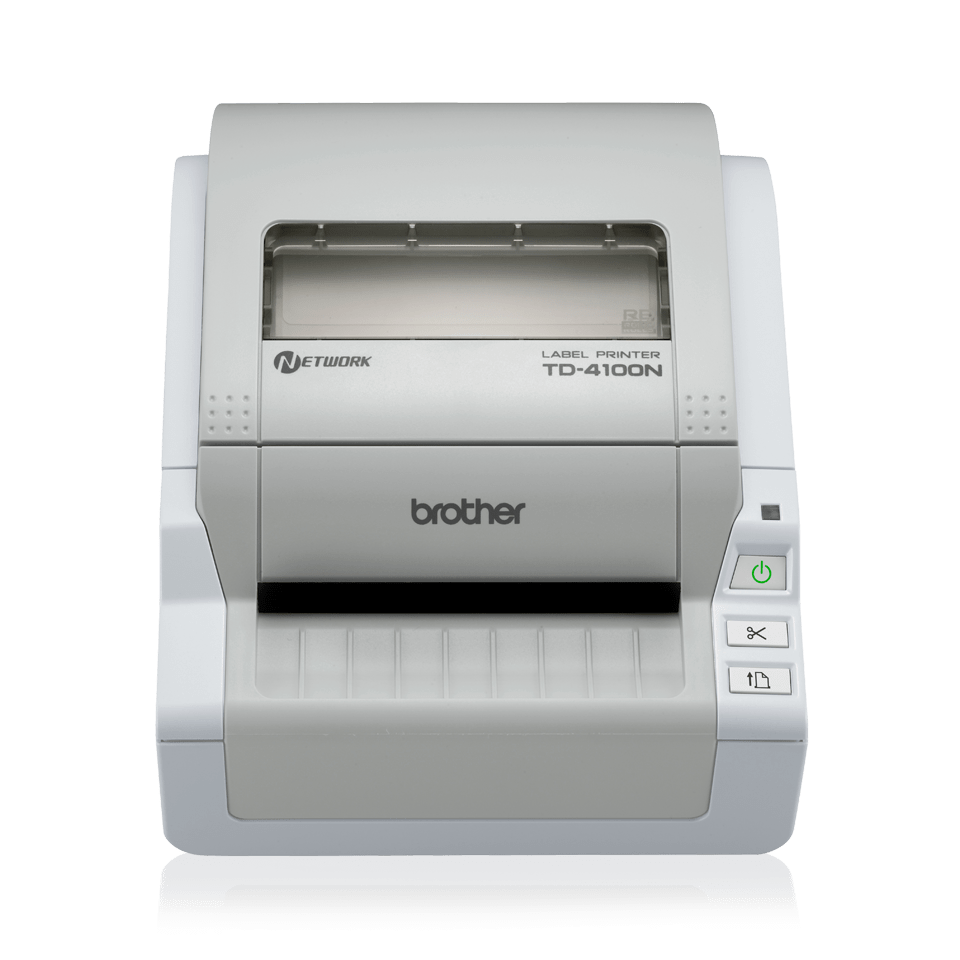

TD4100N

The networked labeller for when size matters

$889.95 RRP (Inc. GST)
Find a local store

At a glance

  • usb-icon
  • p-touch-editor
When you need a larger label, this professional network-ready labeller offers 300dpi print resolution on quality labels up to 102mm wide, and from 25mm to 3m long. It'll also save you time with up to 110mm per second print speed and an automatic built-in automatic cutter.

Key Features

  • 102mm label width (RD labels)
  • 300dpi print resolution
  • Up to 92 labels per minute print speed
  • High-speed automatic tape cutter
  • Easy to install label rolls
  • Network ready + USB and RS-232 serial port as standard

What sets us apart

  • 24-7-helpdesk

Overview



Specification

Features and Specifications

Maximum label width (mm) 102
Office Industrial
Buttons Power, Feed, Cut
Flash RAM 2 MB
Housing colour Light grey & pearl white
LED Status
Serial RS-232C Serial (9 pin)
USB interface USB Ver. 2.0 (Full Speed)
Wired network interface 10/100Base-TX
Dimensions 173 mm (W) x 229 mm (D) x 158 mm (H)
Weight 1.83 kg
AC adaptor power cord Yes
Others 102 mm continuous black on white label roll (2 metre starter roll)
Software disc CD ROM containing software, drivers and user guide
Supplies 51 mm x 26 mm black on white die cut label roll (60 labels)
USB cable Yes
Windows Windows 7, Windows 8, Windows Vista, Windows XP
Bitmap fonts Helsinki, Letter Gothic Bold, San Diego, Brougham, Brussels
Copies 1-9999 (ESC/P P-touch Template)
Label detection sensor Yes
Label margins 3 mm - 126 mm
Maximum label width 102 mm
Maximum print length 3000 mm
Maximum print width 98.6 mm
Mirror printing Yes
Outline/Vector fonts 33 - 400 dots (22 sizes)
Resolution (dpi) 300 x 300
Sequential numbering 1 - 9999 / A - Z / a - z
Standard print speed 110 mm per second
Supported commands Raster mode, ESC/P, P-touch template mode
Database file compatibility csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Label length settings 25 mm (minimum)
Languages English / Danish / Dutch / French / German / Italian / Norwegian / Portuguese / Spanish / Swedish / Finnish / Czech / Polish / Hugarian / Simplified Chinese / Russian / Turkish / Japanese
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround
Rolls RD rolls (die-cut and continuous)
