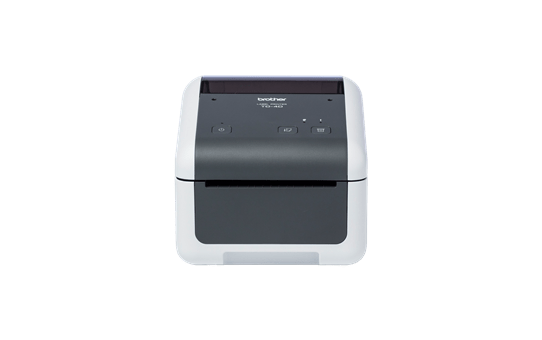

TD-4520DN Network Desktop Label Printer

Print high quality, continuous labels using media up to 118mm/4.65 inch wide. With built-in network for easy sharing.

TD-4520DN Network Desktop Label Printer TD-4520DN Network Desktop Label Printer 2 TD-4520DN Network Desktop Label Printer 3 TD-4520DN Network Desktop Label Printer 4 TD-4520DN Network Desktop Label Printer 5 TD-4520DN Network Desktop Label Printer 6
Back Next
  1. TD-4520DN Network Desktop Label Printer
  2. TD-4520DN Network Desktop Label Printer 2
  3. TD-4520DN Network Desktop Label Printer 3
  4. TD-4520DN Network Desktop Label Printer 4
  5. TD-4520DN Network Desktop Label Printer 5
  6. TD-4520DN Network Desktop Label Printer 6
$1,199.95 RRP (Inc. GST)

Using direct thermal print technology, accurate images with crisp definition is created. Great for printing high-volume, temporary labels with barcodes.

The length of media is automatically calculated with the media calibration function. Removing the need of manually entering label dimensions.

With network connectivity, data is quickly shared with different departments. Make the TD-4520DN bespoke to your needs with a range of accessories including a peeler and cutter.

  • Network connectivity
  • Professional quality up to 300dpi print resolution
  • Fast print speeds up to 152mm per second
  • Print width up to 4.27 inches / 108mm
  • Easy set-up with automatic media configuration
  • Ready to integrate with iOS and Android apps

  • 24_7 Helpdesk
  • Free Recycling
  • 2-Year Return-to-Base Warranty

Overview

TD4520_Crop

Crop function

Ideal for creating shipping labels. Your A4 dispatch document is scanned and the barcode information is automatically processed. Individual labels are then printed from your TD-4520DN desktop label printer.
TD4520DN_integration

Seamless integration

To support integration, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation enabling integration into legacy systems.
TD-4520DN_print-from-PC

Print from your Windows PC

Create customer labels using Brother P-touch Editor. Easily add your company logo or select from hundreds of built-in images, symbols, barcodes and frames. Also, link to excel data to batch print labels.
TD4520_Network

Network connectivity

Sharing the TD-4520DN is simple with the integrated network port. Increase your teams productivity with this network desktop label printer. Many users can share the printer in a variety of locations.

Specification

Features and Specifications

Maximum label width (mm) 102
Usage type Industrial
Buttons Power, Feed
Database upload from PC Yes
Flash RAM 40 MB
RAM 256 MB
Technology Direct thermal
Serial RS232C Original serial cable
USB interface USB Ver. 2.0 (Full Speed) (Type B)
Wired network interface 10/100BASE-TX
Dimensions 180 mm (W) x 224 mm (D) x 155 mm (H)
Weight without carton (includes toner & drum) 2.08 kg
AC adaptor Yes
Quick setup guide Yes
Windows Windows 10, Windows 7, Windows 8, Windows Server 2003 & 2008 (32 & 64 bits), Windows Vista, Windows XP
1 dimensional barcode symbologies Linear: CODE 39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar (Standard (Omnidirectional)/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded), CODE93, POSTNET, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode
Maximum print length 3000 mm
Maximum print width 104.1 mm
Resolution (dpi) 300
Standard print speed 203.2 mm per second
Supported commands Raster ESC/P P-touch Template ZPL emulation CPCL emulation(CPCL page print mode / CPCL line print mode) SBPL emulation (JP model only)
SDK (Software Development Kit) Yes
Warranty 2 Year Return to Base Warranty

Rating and Reviews

Customer reviews

  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getReviews, 218ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Supplies and Accessories

Supplies

  • RDS01C2 - Continuous length paper label

    RDS01C2 - Continuous length paper label

    102mm x 44.7m continuous label roll.

    View details
  • RDR55NZ25 - Die Cut Labels (5 pack)

    RDR55NZ25 - Die Cut Labels (5 pack)

    Die Cut Labels - 55mm x 25mm (box of 5).

    View details
  • RDS03C1 - Die-Cut Labels

    RDS03C1 - Die-Cut Labels

    Die Cut Labels 102mm x 50mm.

    View details
  • RDS02C1 - Die-Cut Labels

    RDS02C1 - Die-Cut Labels

    Die Cut Label Rolls - 102mm x 152mm.

    View details
  • RDR330NZPL Face Cut Courier Labels

    RDR330NZPL Face Cut Courier Labels

    Thermal Direct Roll - 100mm x 174mm. Ideal for NZ Post Courier Labels. Face Cut.

    View details
  • RDS05C1 - Die-Cut Labels

    RDS05C1 - Die-Cut Labels

    Die Cut Labels - 51mm x 26mm.

    View details
  • RDR40NZ25 - Die Cut Labels (6 pack)

    RDR40NZ25 - Die Cut Labels (6 pack)

    Die Cut Labels - 40mm x 25mm

    View details
  • RDR330STDL Courier Labels

    RDR330STDL Courier Labels

    Thermal Direct Label Roll - 330 labels sized 100mm x 174mm.

    View details
  • TD4100X149 - Thermal Direct Labels

    TD4100X149 - Thermal Direct Labels

    Thermal Direct Label Rolls - 100mm x 149mm

    View details
  • TD455X25 - Thermal Direct Labels

    TD455X25 - Thermal Direct Labels

    Thermal Direct Label Rolls - 55mm x 25mm

    View details
  • TD490X29 - Thermal Direct Labels

    TD490X29 - Thermal Direct Labels

    Thermal Direct Label Rolls - 90mm x 29mm

    View details
  • TD490X36 - Thermal Direct Labels

    TD490X36 - Thermal Direct Labels

    Thermal Direct Label Rolls - 90mm x 36mm

    View details
  • TD499X60 - Thermal Direct Labels

    TD499X60 - Thermal Direct Labels

    Thermal Direct Label Rolls - 99mm x 60mm

    View details
Back Next

Accessories

  • PALP002 Label Peeler for TD4 series

    PALP002 Label Peeler for TD4 series

    View details
  • PA-CU-001 Label Cutter

    PA-CU-001 Label Cutter

    Automatic label cutter accessory compatible with selected TD desktop label printers.

    View details
  • PAHU3001 Thermal Print Head (300dpi)

    PAHU3001 Thermal Print Head (300dpi)

    View details
  • PAPR3001

    PAPR3001

    View details
Back Next

Cleaning and Maintenance

Routine maintenance to keep your printer performing at its best.

We recommend cleaning your printer on a regular basis to maintain its correct performance. Always disconnect the printer from any power source before cleaning.



Clean the exterior of the unit.

Wipe any dust and marks from the main unit using a soft, dry cloth. Use a cloth slightly damp with water on difficult to remove marks. Important - do not use paint thinner, benzene, alcohol or any other organic solvent. These may deform or damage the printer case.

Clean the label output slot.

Cleaning label output slot

If adhesive residue gets attached to the label output slot, it may cause label jams. Clean the label output slot with a dry cotton swab.



Important – do not use alcohol to clean the label output slot.



Always remove the ejected labels from the label output slot. If the slot becomes blocked, label jams may occur.


Clean the roller.

 Cleaning the roller

Wipe the roller with a lint-free cloth dipped in isopropyl alcohol or ethanol. After cleaning the roller, make sure that no lint or other material remains on the roller.



Use isopropyl alcohol or ethanol according to the manufacturer’s safety guidelines, as applicable.

Clean the print head.

 Cleaning the print head

Wipe the print head with a lint-free cloth or cotton swab dipped in isopropyl alcohol or ethanol. We recommend cleaning the print head monthly.



Use isopropyl alcohol or ethanol according to the manufacturer’s safety guidelines, as applicable.
