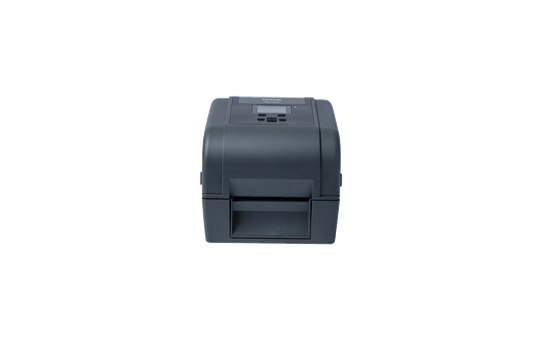

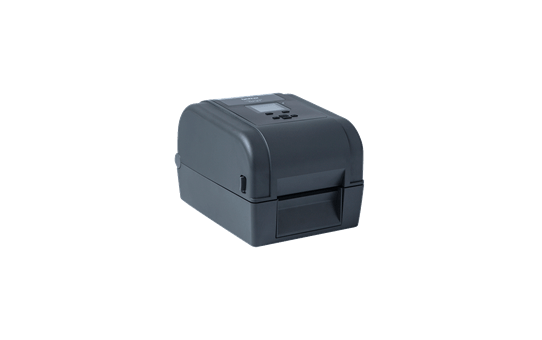

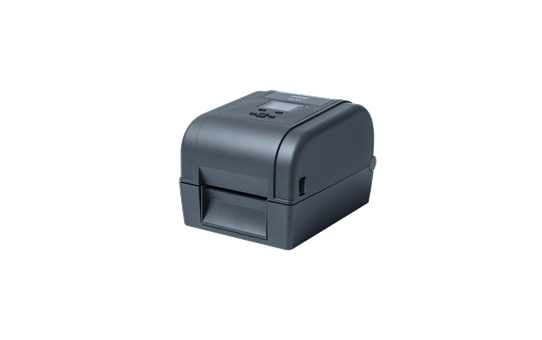

300dpi Thermal Transfer barcode, label and receipt printer. This precision built barcode label and receipt printer delivers performance, quality, and integration at an exceptional value.
Maximum label width (mm) | 105.7 |
---|---|
Office | Industrial |
Display | LCD |
Display size | 2.3" |
Flash RAM | 128 MB |
LED | Power |
RAM | 128 MB |
Technology | Direct Thermal and Thermal Transfer |
Bluetooth | Yes |
---|---|
WiFi Security | Authentication method (encryption scheme) *Infrastructure mode. Open system (None/WEP64/WEP128), WPA/WPA2-PSK (TKIP AES), EAP-FAST (TKIP/AES), PEAPv0 (TKIP/AES), EAP-TLS (TKIP/AES), EAP-TTLS (TKIP/AES) |
Bluetooth profiles | Ver.5.0 |
Serial | RS232 |
USB interface | USB Ver. 2.0 (Full Speed) Type B |
Wi-Fi Direct | IEEE 802.11 a/b/g/n |
Wired network interface | 10/100 Mbps |
Dimensions | 219 mm (W) x 284 mm (D) x 191 mm (H) |
---|---|
Weight without carton (includes toner & drum) | 3 kg |
AC adaptor | Yes |
---|---|
AC adaptor power cord | Yes |
Others | Documentation |
Supplies | 1" ribbon paper core, 30m standard wax starter ribbon |
USB cable | Yes |
Linux | Linux |
---|---|
Macintosh | Mac OS X 11, OS X 10 11, Mac OS X 10 12, Mac OS X 10 13, Mac OS X 10 14, Mac OS X 10 15 |
Windows | Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows 8.1, Windows Server 2012, Windows 10, Windows 7 |
1 dimensional barcode symbologies | Code128UCC, Code128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN-13, EAN-8, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS |
---|---|
2 dimensional barcode symbologies | CODABLOCK F mode, RSS Barcode (GS1 DataBar), GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39 |
Emulations | FBPL, ZPLII®, EPL2™, DPL |
Maximum print length | 25400 mm |
Maximum print width | 105.7 mm |
Resident fonts | 8 alphanumeric bitmap fonts. Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font. |
Resolution (dpi) | 300 |
Standard print speed | 152.4 mm per second |
Supported commands | FBPL-EZD (Compatible to EPL II, ZPL II, DPL) |
SDK (Software Development Kit) | Yes |
---|
Warranty | 2 Year Return-to-Base Warranty |
---|
