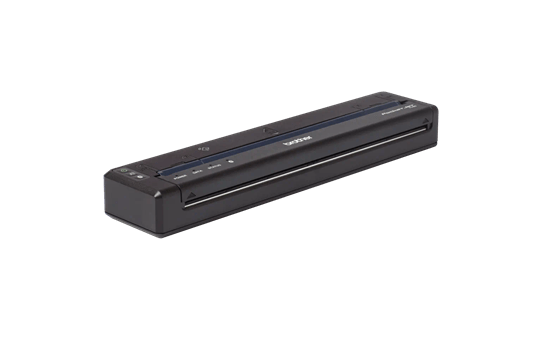

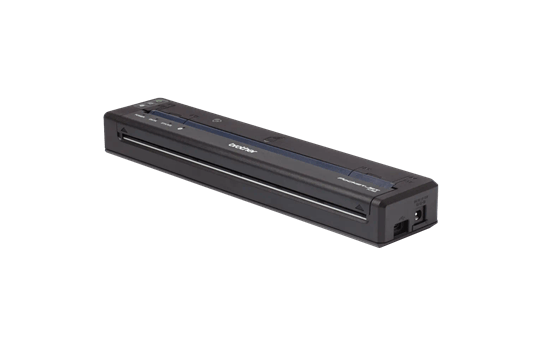

PJ-863 A4 Mobile Thermal Printer + Bluetooth

The PJ-863 is a compact, high-resolution mobile printer to print quotations, invoices, and other reports whilst on the move.

$869.95 RRP (Inc. GST)
Find a local store
Print quotations, invoices, and other reports whilst on the move and streamline the work of field sales, field service, logistics, delivery and the emergency service sectors.

The PJ-863 supports both charging and data transfer via USB-C, as well as Bluetooth connectivity to provide a mobile A4 print solution which is compact enough to fit easily into a briefcase or computer bag, but that can also be permanently installed in vehicles.

Thermal print technology at 300x300dpi produces high-resolution, crisp text at a print speed of up to 13.5 pages per minute.

Compatible with a wide range of mobile and desktop operating systems, the PJ-863 can easily be integrated into your own apps and software using the various SDK's (Software Development Kits) available. Also supports a variety of printer command languages, including ZPL2 emulation.

Key features

  • USB Type-C and Bluetooth connectivity
  • 300dpi print resolution
  • Up to 13.5ppm print speed
  • Android, Windows, Mac and Linux support
  • MFi - Made for iPhone
  • Customise your print solution with a vehicle mounting kit, chargers and protective cases. Optional high-capacity Li-ion battery for printing away from power sources

  • 247 NZ-based Helpdesk V2_405x405px
  • Free Recycling V3_405x405px

Overview

pj-8-mobile-printer-with-nurse

High quality A4 printing on the move

The Brother PJ range of mobile printers finally offer businesses a reliable way of producing high quality A4 sized prints wherever and whenever they are required. Featuring direct thermal printing, this technology is considered by many to be the only reliable solution for mobile print applications. And as no ink, toner or ribbons are used, this ensures workers don't have to source expensive replacements when they run out - the only consumable used is the paper itself.



pj-800-size

Compact and lightweight

Despite its incredibly small size and lightweight design, the development and manufacturing process has been focussed on producing a durable, professional printer that can be carried in a briefcase or computer bag, or permanently mounted in a vehicle.

pj-800-healthcare-worker

Integrate printing within your existing mobile apps and software

Enabling printing within existing apps or software used to be a difficult task.

However, as well as standard printer drivers for Windows®, Mac and Linux, Brother has a range of SDK (Software Development Kits) that allow developers to easily add printing capabilities into existing solutions, or allow new printing apps to be developed quickly and efficiently.

SDK's are available for iOS, Android and Windows® operating systems.



For more information, please visit the Brother Developer website at:

https://www.brother.co.jp/eng/dev/index.aspx

pj-800-series-bluetooth-usb

Bluetooth and USB connectivity

Offering the flexibility of both wired or wireless connections means you can connect to a wide variety of devices such as Android tablets and smartphones, or to Windows®, Mac or Linux based desktops and laptops.

Bluetooth data transmission is fast and secure thanks to Bluetooth v5.2, and with support for SPP, OPP, HCRP (Bluetooth Classic), GATT (Bluetooth Low Energy) and iAP profiles.

Specification Details

Features and Specifications

AC Adaptor Optional. (PA-AD-600A)
Usage type In vehicle
Approximate battery yield 600 sheets (under Brother standard environment)
Flash RAM 64 MB
Li-Ion rechargeable battery Optional. (PA-BT-002)
Memory capacity 256 MB
Bluetooth Ver.5.2 (Classic LE)
MFi Yes
Bluetooth profiles SPP, OPP, HCRP (Bluetooth Classic), GATT (Bluetooth Low Energy) Supported protocol: iAP
NFC Yes for paring
USB interface USB Ver.2.0 (Full Speed) (Type C)
Dimensions 255 mm(W) x 55 mm(D) x 30 mm(H)
Weight with battery 610g
Weight without battery 430g
Types and sizes A4, A5, Letter, Legal, continuous, custom sizes and pre-printed media are available upon request. Paper and Synthetic Full-page: Cut Sheet, Continuous Roll, Perforated Roll, Fan-Folded Labels: Cut Sheet, Fan-Folded.
Linux Linux
Macintosh Mac OS X 11, Mac OS X 12, Mac OS X 10 15
Windows Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
1 dimensional barcode symbologies CODE39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR(NW-7), CODE128, GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar (RSS), CODE93, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode
2 dimensional barcode symbologies QR Code, PDF417, MaxiCode, Aztec, Micro QR Code, MicroPDF417, DataMatrix,
Bitmap fonts Gothic (16, 24, 32dot), Letter Gothic Bold, Helsinki (16, 24, 32, 48dot), Brussel, San Diego, Broughham (24, 32, 48dot)
Maximum print length 279.4 mm
Maximum print width 203.2 mm
Resolution (dpi) 300 x 300
SDK (Software Development Kit) Yes
AC adaptor Optional - PA-AD-600A
DC Vehicle Adaptor Optional - PA-CD-600CG (Car Adapter) & PA-CD-600WR (Wired Car Adapter)
Li-ion battery Optional - PA-BT-002
Paper Guide Optional - PA-PG-004
Paper Roll Holder Optional - PA-RH-600
Paper Roll Mobile Printer Case Optional - PA-RC-001
Protective Rubber Cover Optional - PA-RB-001
Rolls PA-R-411
Thermal paper PA-C-411
USB Type C AC Adaptor Optional - PA-AD-003
Warranty 2-year return-to-base
