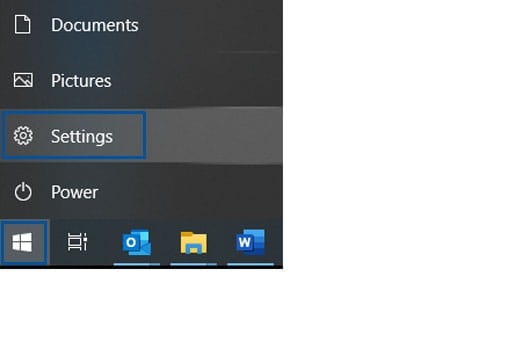

Right-click the Windows Start button in the bottom-left corner of your screen, then select Settings.
-
Label Size Configuration InstructionsSet up your brother label printer driver to correctly print a courier label size.
Step 1
Step 2
In the Settings window, select Devices.
Step 3

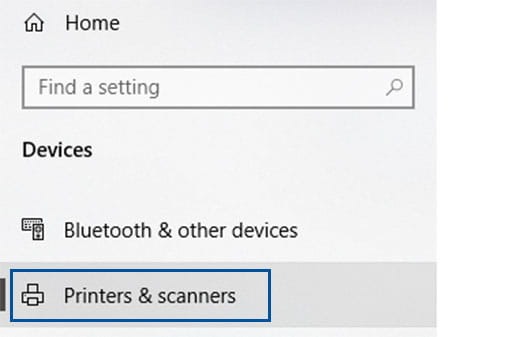

Click Printers & Scanners from the menu.
Step 4

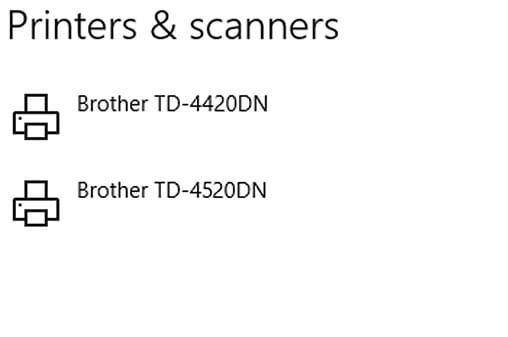

Select your Brother Label Printer
Step 5

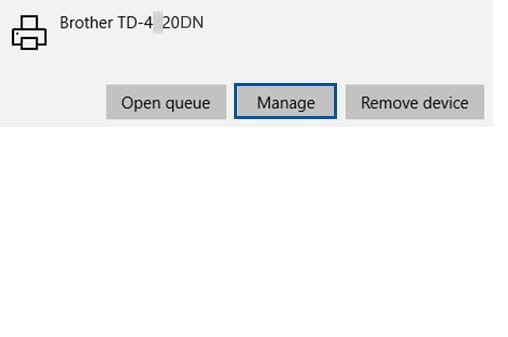

Click Manage.
Step 6

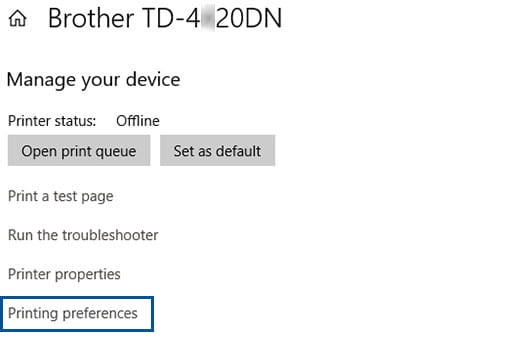

Click on Printing Preferences.
Step 7

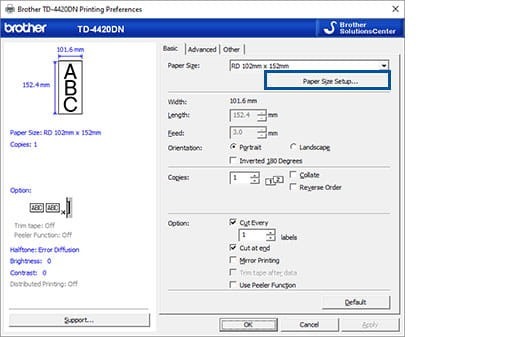

Click Paper Size Setup.
If prompted with a security message asking, “Do you want to allow this app to make changes to your device?”, click Yes.
Step 8

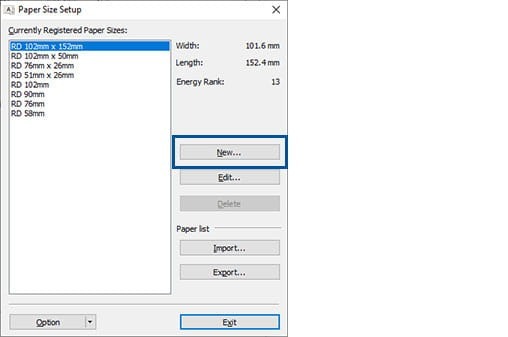

Select New.

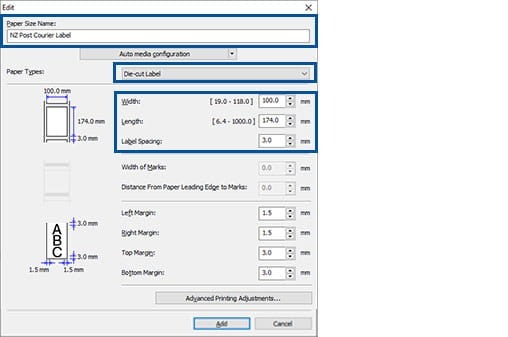

Step 9
Enter the following paper size details:
-
Paper Size Name: NZ Post Courier Label
-
Paper Type: Die-cut Label
-
Width: 100 mm
-
Length: 174 mm
-
Label Spacing: 3.0 mm
Once completed, click Add.
Step 10

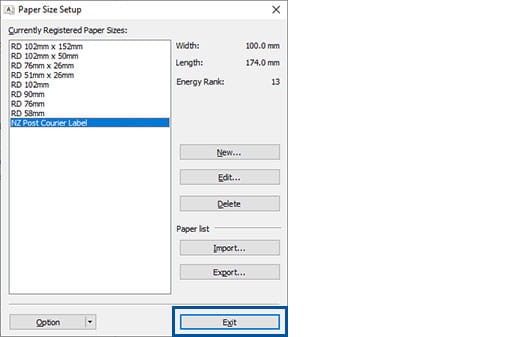

The custom paper size “NZ Post Courier Label” will now appear in the list. Click Exit
Step 11
- From the Paper Size drop-down list, select NZ Post Courier Label, then click Apply.
- Click OK to close the window.
Configuration complete.
Your Brother printer driver is now configured for courier label printing.
If you experience any issues, please contact Brother Helpdesk on 0800 329 111 for further assistance.
