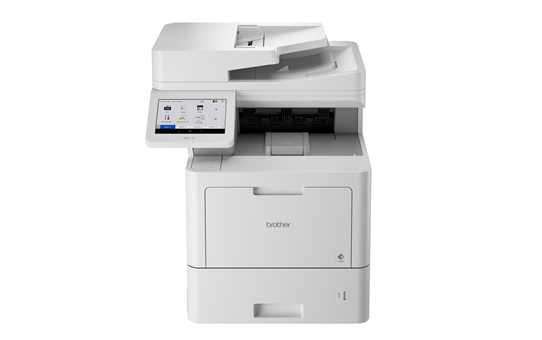

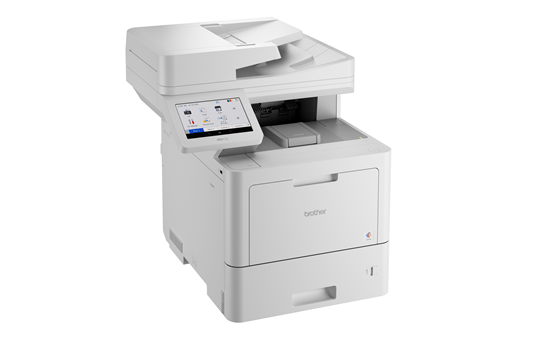

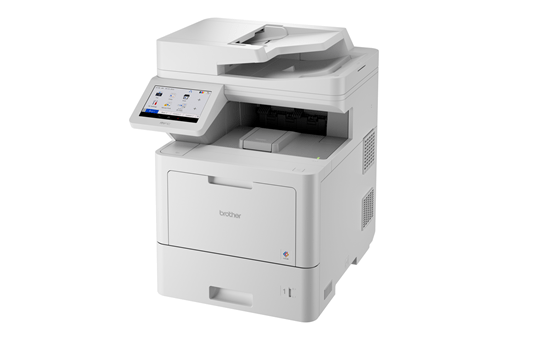

MFC-L9630CDN Colour Laser A4 Multi-Function Printer

MFC-L9630CDN A4 Print/Copy/Scan/Fax + Mobile Printing

$1,999.00 RRP (Inc. GST)

At a glance

Enhance performance with a large user-friendly touchscreen and super-fast 100 sheet ADF. With a number of optional lower paper trays, less time can be spent replenishing paper, maximising device up-time. With impressive scan and printing speeds, you can be sure that the MFC-L9630CDN will be a great asset to your business.

Key Features

Print, copy, scan, fax (2-sided)
2-sided print, up to 28 sides per minute
Up to 40ppm colour & mono print speed / up to 100ipm colour & mono 2-sided scan
Outstanding paper capacity due to optional trays, or transform this printer into a floor-standing model with a tower tray option
Integrated NFC reader
Fully compatible with 3rd party print management and document management solutions including PaperCut, YSoft and more

Overview

Is this the right printer for my needs?

Find out by answering five simple questions using our helpful
Printer Selector Tool.

Maximise Performance

The speedy new MFC-L9630CDN, enables you to easily improve efficiency and productivity. Enhanced document scanning and an Automatic Document Feeder that holds up to 100 sheets of paper, offer a quick and simple way to scan direct to the cloud or your network. With the touch of a button, you can also customise the touchscreen with your own time-saving shortcuts, while longer-life toners mean more time working and less time changing toner. And if your business grows, the MFC-L9630CDW can grow with it, providing expandable lower and tower paper trays that give you extra capacity.

Tighter Security

The advanced security capabilities of the MFC-L9630CDW, ensures you are always in full control of your print infrastructure. You can improve data protection by restricting machine access with network user authentication, and secure function lock, which allows you to password-protect certain device functions. Plus, the NFC reader can be used to integrate with secure printing, enabling users to release their print job from any chosen device by entering a PIN.

Better reliability

Built to perform for longer and meet the demands of high output work environments, Brother's latest colour laser range has been totally remodelled with robust build quality that’s even more resilient and hardwearing.

Eco-friendly

Brother's latest colour laser range is designed to help your business work more efficiently, it is also more energy efficient, reducing impact on the environment and lowering your costs at the same time.

Specification Details

Features and Specifications

Printer type	Colour
Function	Print, Copy, Scan, Fax
Display	Colour touchscreen
Display size	W:153.84mm x L:85.63mm (6.06 x 3.37 inch)
Laser classification	Class 1 laser product
Max paper size	A4
Memory	2GB
Processor	Main: 800MHz Sub: 133MHz
Technology	Laser
Number of shortcuts	64

Connectivity	Wired Network, USB
NFC	Yes (Card Reader / NFC Shortcut)
USB interface	Hi-Speed USB 2.0
Wi-Fi Direct	Optional add-on with Wi-Fi adaptor
Wired network interface	10Base-T/100Base-TX/1000Base-T
Wireless network interface	Wireless connectivity is optional with WiFi adaptor (available separately). Wireless LAN(2.4GHz). Wireless LAN(5GHz). Infrastructure Mode：IEEE 802.11 b/g/n Wi-Fi Direct: IEEE 802.11 g/n.

Supported	AirPrint, Mopria, NFC, Wi-Fi Direct™ option

2-sided copy	Yes
Resolution	Print: Max. 600 x 600dpi
Speed	Up to 40 pages per minute
N in 1	Yes (saves paper by copying two or four pages of your document onto one page of the copy)

Dimensions with carton	580 (W) x 663.7 (D) x 734 (H) mm
Weight with carton	42.2 kg
Dimensions without carton	503 (W) x 541 (D) x 586 (H) mm
Weight without carton (includes toner & drum)	36.2 kg

Printing	770 watts
Deep sleep mode	1.1 watts
Ready mode	85 watts
Sleep mode	16.8 watts
Off	0.04 watts
Sound power	6.79 dB
Sound pressure	55 dBA

Operating humidity	20-80%
Operating temperature	10-32 degrees C
Storage humidity	10-90%
Storage temperature	0-40 degrees C

Internet fax	Yes (ITU T.37 simple mode)

Contents	Inbox toner: Up to 6,500 pages (Black), Up to 5,000 pages (CMY) in accordance with ISO/IEC 19798

Types and sizes	Standard Tray: Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper. Sizes: A4, Letter, B5(JIS), B5(ISO), A5, A5(Long Edge), B6(JIS), A6, Executive, Legal, Mexico Legal, India Legal, A4 Short (270mm Paper), Folio, 16K
Weights	Standard, Duplex & MP Tray: 60 to 230g/m2, Optional Tray: 60 to 105g/m2, ADF: 45 to 120 g/m2

Wired network security	APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec
Wireless network security	WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) *Optional add-on Wi-Fi Direct supports WPA2-PSK (AES) only.

Supported	Windows Server 2008, Server 2008 R2, Server 2012, Sever 2012 R2, Server 2016, Server 2019, Server 2022, Windows 7 SP1, Windows 8.1, Windows 10, Windows 11, Linux, macOS 10.14.x, macOS 10.15.x, macOS 11.x, macOS 12.x, macOS 13.x, macOS 14.x

Paper input	Standard Tray: 520 sheets, MP Tray: 100 sheets, ADF: 100 sheets.
Paper output	Face Down: 250 sheets (80g/m2). Straight paper path (Face Up): 1 sheet.

A4 2-sided print speed	Up to 28 sides per minute (based on ISO/IEC 24734)
A4 standard print speed	Up to 40 pages per minute (based on ISO/IEC 24734)
Resolution	600 x 600 dpi, 2,400 dpi class (2400 x 600) quality
Automatic 2 sided print	Yes
Emulations	PCL5e, PCL5c, PCL6（PCL XL Class3.0), BR-Script3, PDF Version 1.7, XPS Version 1.0
First print out time	Less than 10 seconds
Recommended monthly volume	Up to 12,000 pages

2-Sided scan	Yes
Resolution	Max 600 x 600 dpi optical (from glass and ADF). Max. 19,200 x 19,200 dpi (Interpolated).
Scan to	Email, Image, OCR, File, Email Server, FTP, SFTP, USB, Network (Windows only).

Secure function lock v3	Yes
Setting lock	Yes

Accessories	Drum unit: Approx. 100,000 pages (3page/job), Belt Unit: Approx. 150,000 pages (2page/job), Waste Toner Box: Approx. 100,000 pages in accordance with ISO/IEC 19798 (JIS X6932)
High-yield toner	BK: Approx. 12,000 pages in accordance with ISO/IEC 19798 CMY: Approx. 9,000 pages in accordance with ISO/IEC 19798
Inbox toner	BK: Approx. 6,500 pages in accordance with ISO/IEC 19798 CMY: Approx. 5,000 pages in accordance with ISO/IEC 19798
Standard toner	BK: Approx. 9,000 pages in accordance with ISO/IEC 19798 CMY: Approx. 6,500 pages in accordance with ISO/IEC 19798
