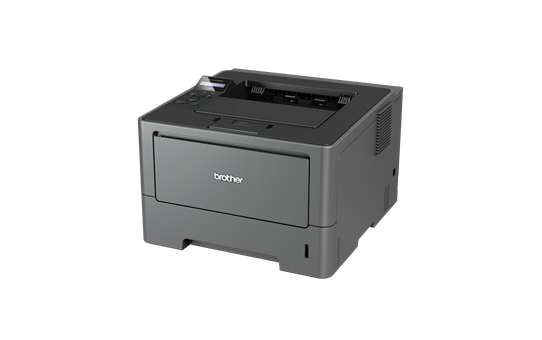

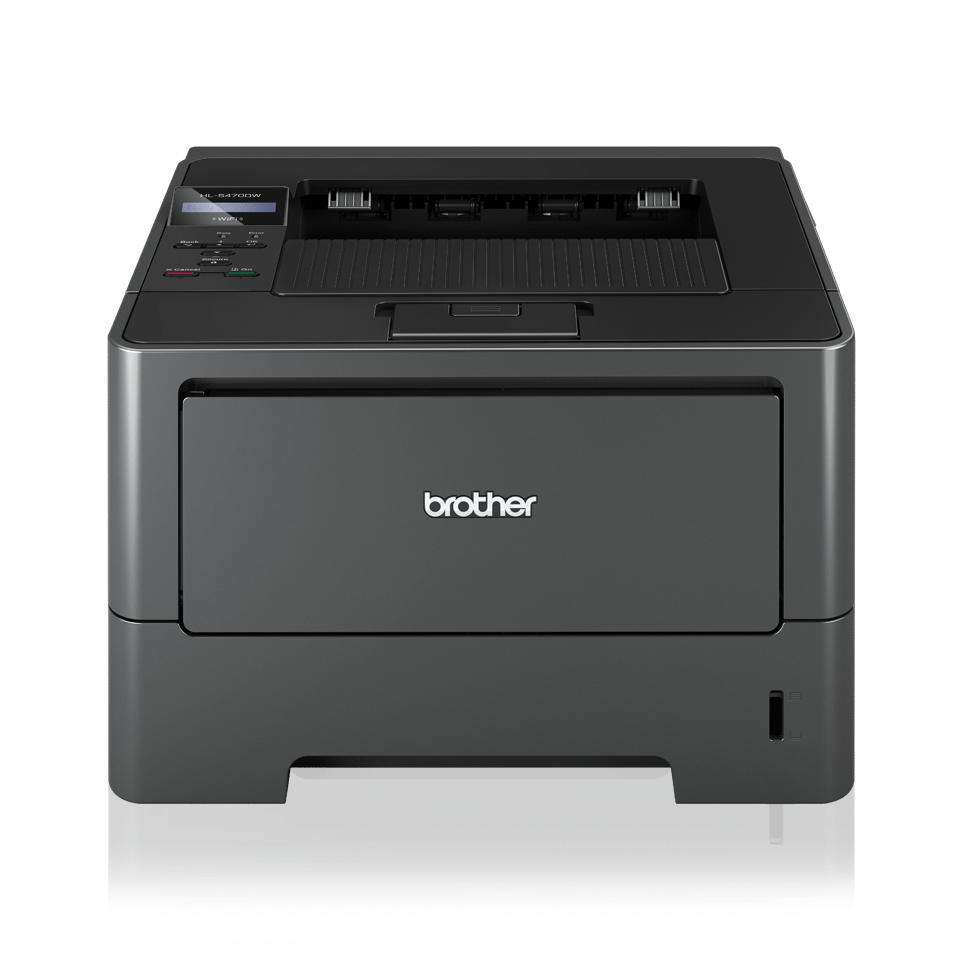

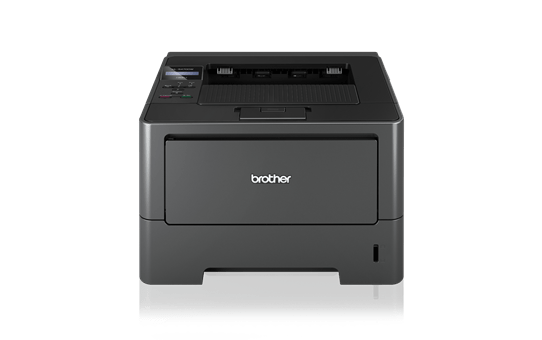

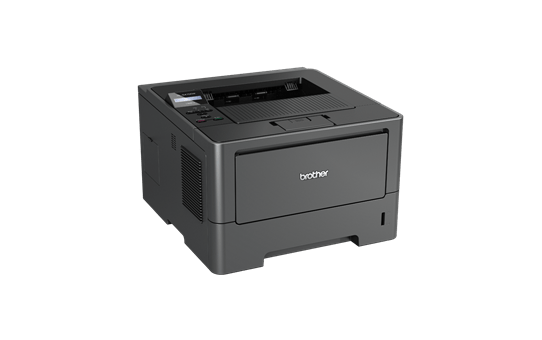

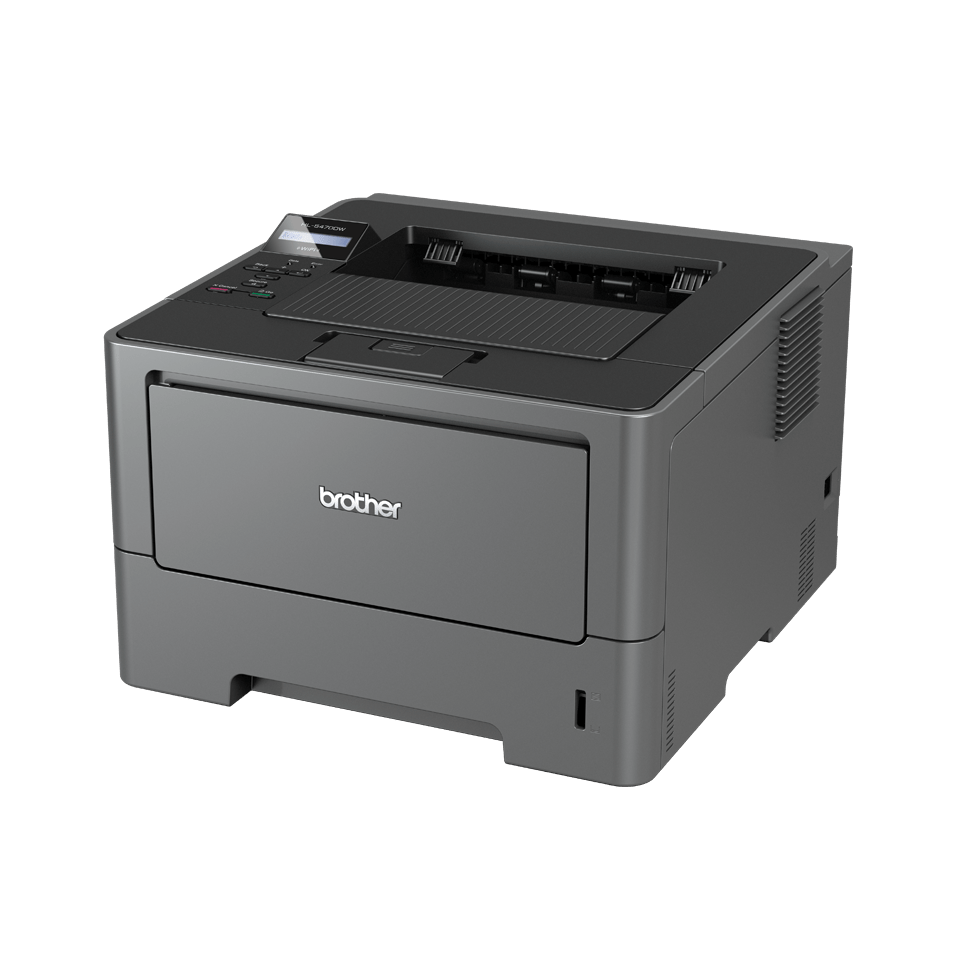

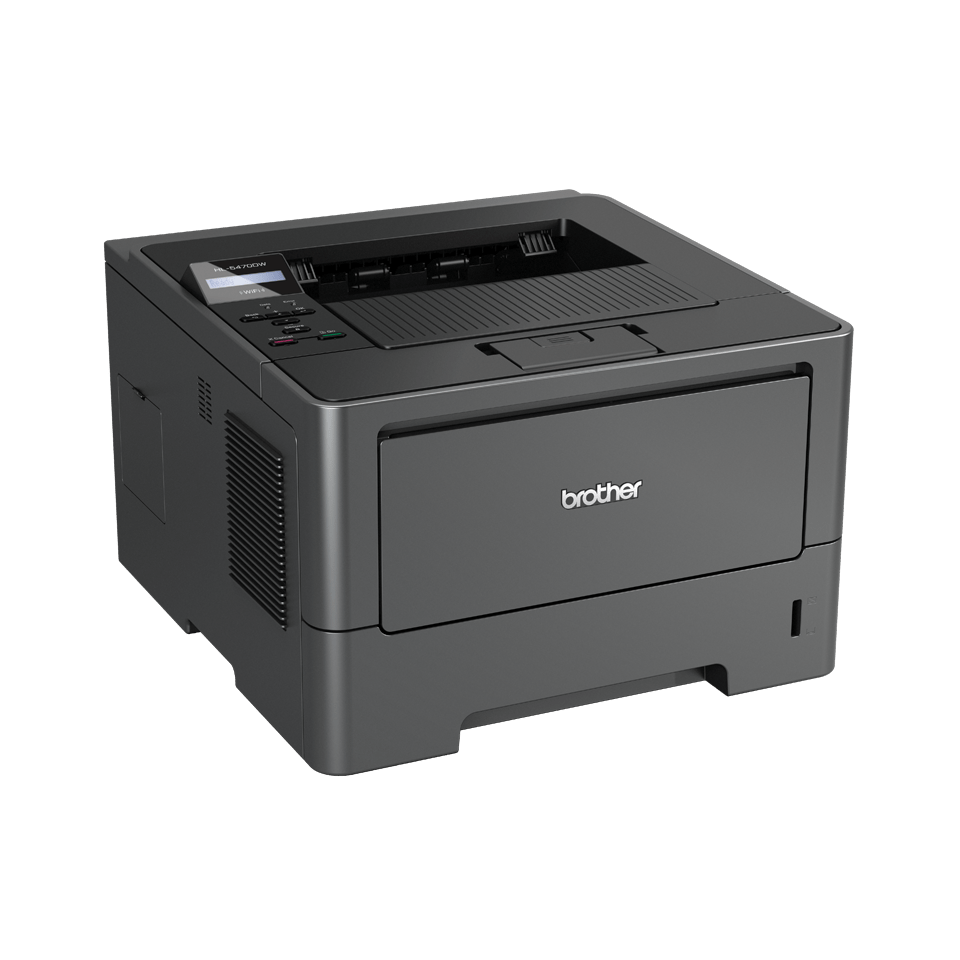

HL-5470DW High Speed Mono Laser Printer + Duplex, Network, Wireless

Our top-of-the-range mono laser for the busy office

Discontinued

HL-5470DW High Speed Mono Laser Printer + Duplex, Network, Wireless HL-5470DW High Speed Mono Laser Printer + Duplex, Network, Wireless 2 HL-5470DW High Speed Mono Laser Printer + Duplex, Network, Wireless 3
Back Next
  1. HL-5470DW High Speed Mono Laser Printer + Duplex, Network, Wireless
  2. HL-5470DW High Speed Mono Laser Printer + Duplex, Network, Wireless 2
  3. HL-5470DW High Speed Mono Laser Printer + Duplex, Network, Wireless 3

At a glance

  • airprint
  • mobile
  • Wifi / Wireless compatible
  • Citrix
  • Pira

This product has been discontinued. Our nearest equivalent can be found here

With high speed printing, automatic duplex and booklet printing, and both wired and Wi-Fi workgroup connectivity, the HL-5470DW can quickly and simply become a real asset to your business.

Key Features

  • Print only (inc. automatic double-sided)
  • Up to 38ppm print speed
  • Up to 1,200 x 1,200dpi print resolution
  • Up to 300 sheet paper capacity
  • 1 line LCD display
  • Wireless and wired network ready, Wi-Fi direct print + connect to your mobile device

  • 4-Year On-site Warranty
  • 24_7 Helpdesk

Overview

The ultimate mono laser for groups of up to 5 users

With both wired and Wi-Fi workgroup connectivity, the HL-5470DW can quickly and simply become part of your business systems – as well a real asset to your productivity.

With the HL-5470DW you can depend on up to 38ppm speeds with the first page out in less than 8.5 seconds, automatic duplex and booklet printing, and print quality at an impressive 1,200dpi. The standard paper tray capacity is 300 sheets, but you also have the option to add a 500-sheet lower tray for bigger jobs.

And with an up to 8,000 page high-yield toner cartridge, the running costs attached to the HL-5470DW are pleasingly low.


Buyer's Lab recently rated our HL-5470DW as Highly Recommended. Read what they say here


Specification

Features and Specifications

Printer type Mono
Function Print
Display Backlit LCD
Display size 16 characters x 1 line
Laser classification Class 1 laser product (IEC 60825-1:2007)
Max paper size A4
Memory 128MB (expandable up to 384MB using 1 x 144 pin, 16bit DDR2 DIMM)
Processor 400MHz
Technology Laser
Connectivity Wired Network, Wireless
Local interface Hi-Speed USB 2.0
Wired network interface Ethernet (10Base-T/100Base-TX)
Wireless network interface IEEE 802.11b/g/n
Supported AirPrint, Cortado Cloud Print, Google Cloud Print, iPrint&Scan, Wi-Fi Direct
Dimensions with carton 499(w) x 478(d) x 411(h) mm / 13.6kgmm / 12.5kg
Dimensions without carton 371(w) x 384(d) x 257(h) mm / 23.1kg
Sound power 6.79BA active, 6.4BA quiet mode, 4.7BA ready
Sound pressure 59dBA active, 54dBA quiet mode, 34dBA ready
Typical electrical consumption 2kWh / week
Contents Power supply cord, Product safety guide, Software disc, Supplies, User guide, Warranty card, Quick setup guide
Types and sizes Standard Paper Tray - A4, Letter, B5(ISO/JIS), A5, A5(Long Edge), B6(ISO), A6, Executive, Legal, Folio. Optional Paper Tray - A4, Letter, B5(ISO/JIS), A5, B6(ISO), Exective, Legal, Folio. Multi-Purpose Tray - Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm. (A4 only supported in automatic duplex print mode)
Weights Standard / Optional Paper Tray - Plain & recycled paper (between 60 - 105 g/m2), Multi-Purpose Tray - Plain, recycled & bond paper (between 60 - 163g/m2) per Tray - A4, Letter, B5(ISO/JIS), A5, A5(Long Edge), B6(ISO), A6, Executive, Legal, Folio (A4 only supported in automatic duplex print mode). Multi-Purpose Tray - Width: 76.2mm to 215.9mm (3” to 8.5”) x Length: 127mm to 355.6mm (5” to 14”)”)
Secure print Yes
Secure function lock v2 Restrict print activities to selected users and assign optional page limits
Wi-Fi Direct™ Yes
Wired network security APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos
Wireless network security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP), SNMP v3, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos
Wireless setup support Yes
Supported Windows® 8(32 & 64 bit editions), Windows® 7 (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows® XP Professional (32 & 64 bit editions), Windows® XP Home Edition, Windows® Server 2012R2, Windows® Server 2012, Windows® Server 2008R2, Windows® Server 2008 (32 & 64 bit editions), Windows® Server 2003 (32 & 64 bit editions). OS X 10.5.8, 10.6.x, 10.7.5, 10.8.x, 10.9.x, 10.10 or greater. Linux CUPS, LPD/LPRng (x86/x64 environment)
Paper input 250 sheet standard paper tray, 50 sheet multi-purpose tray, 500 sheet optional paper tray
Paper output 150 sheets face down, 1 sheet face up (straight paper path)
A4 2-sided print speed Up to 18 sides per minute
A4 standard print speed Up to 38 pages per minute
Resolution 1,200 x 1,200dpi, HQ1200 (2,400 x 600dpi quality), 600 x 600dpi
Automatic 2 sided print Yes
Emulations PCL6, BR-Script3 (Postscript®3TM Language Emulation), IBM Proprinter XL, Epson FX-850
First print out time Less than 8.5 seconds
Supported AirPrint, b-guard, Cortado Cloud Print, Google Cloud Print, iPrint&Scan, Managed Print Services
Supplies In-box Toner Approx. 3,000 pages* Standard Toner TN-3330 - Approx. 3,000 pages* High Yield Toner TN-3380 - Approx. 8,000 pages* Drum DR-3300 - Approx. 30,000 pages (one job per page). *Approx. cartridge yield is declared in accordance with ISO/IEC 19752000 pages1 Standard Toner TN-3330 - Approx. 3,000 pages1 High Yield Toner TN-3380 - Approx. 8,000 pages1 Drum DR-3300 - Approx. 30,000 pages (one job per page)

Rating and Reviews

Customer reviews

  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getReviews, 250ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Supplies and Accessories

Accessories

  • LT5400

    LT5400

    Optional Lower Paper Tray (500 sheet capacity)

    View details
Back Next

Supplies

  • TN3340 black high yield toner (8,000 pages) for Brother laser printer

    TN3340 black high yield toner (8,000 pages) for Brother laser printer

    The Brother TN3340 Black High Yield Toner Cartridge. Prints 8,000 pages.

    View details
  • TN3310

    TN3310

    The Brother TN3310 Black Standard Yield Toner Cartridge. Prints 3,000 pages (approx. cartridge yield is declared in accordance with ISO/IEC 19752).

    View details
  • DR3325

    DR3325

    The Genuine Brother DR-3325 Black Drum Unit – Single Pack. Prints 30,000 pages.

    View details
Back Next

Environment

Free Recycling

Our comprehensive recycling programme ensures you can access a variety of free and responsible pathways for recycling your empty consumables and old print hardware.

Operating since 2008 with the support of certified e-waste specialists, Recycling Group, Brother has made recycling simple and easy.

Explore Recycling

Toitu

Brother New Zealand is proud to be a certified carbon-neutral organisation, recognised by Toitū net carbonzero certification.

First achieved in 2013, Brother was the country's first printer brand to receive the certification, which at the time was called carboNZero certification. This certification acknowledges our commitment to effectively managing, reducing, and offsetting carbon emissions.

Visit Toitū Envirocare

HQ_308 x 410px

Eco Choice Aotearoa is New Zealand's official environmental label, initiated and endorsed by the New Zealand Government, although independently operated, and recognises the increasing effort of manufacturers to reduce the environmental impact of their products.

Eco Choice Aotearoa provides a credible and independent guide for people who want to purchase and use products that are proven to be better for the environment.

Selected Brother and Konica Minolta products hold Eco Choice Aotearoa certification. This is 'Copying machines, printers, fax machines & multi-functional devices' under Licence No. 2410083.

View Certified Products

young girl blowing bubbles in a field brother

The machine was tested in accordance with Appendix 2 of RAL-UZ-122:2006 Blue Angel criteria for Office Equipment with Printing Function (Printers, Copiers, Multifunction Devices) and found it satisfies air emissions.
