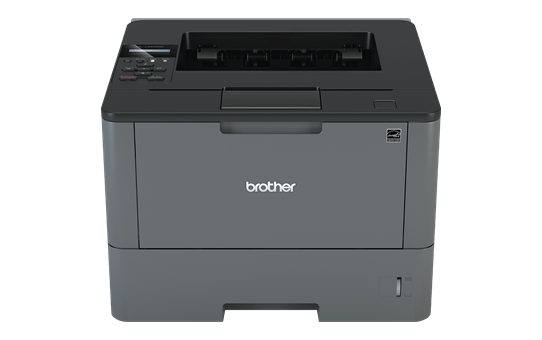

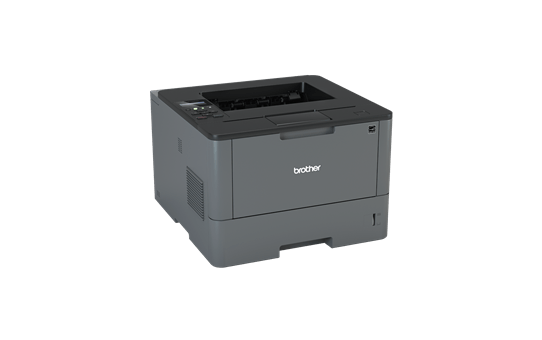

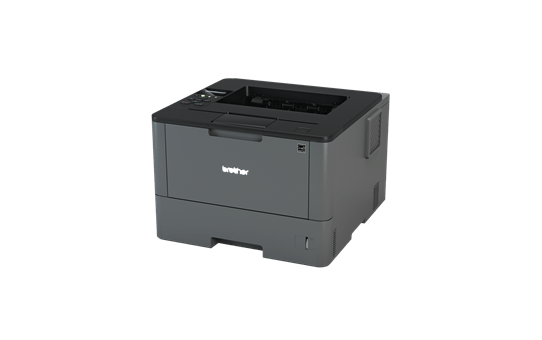

HL-L5100DN Mono Laser A4 Printer

High-volume printing for SMEs

At a glance

  • business
  • reports
  • invoice
  • excel

Ideal for small and medium sized businesses and busy workgroups. Best for printing text heavy reports, spreadsheets, invoices and other business documents. Industries such as legal, financial, medical, hospitality, logistics and administration are where the HL-L5100DN will perform well.

Key Features

  • A4 Print (+2-sided)
  • Up to 40 pages per min print speed
  • High speed wired (10Base-T/100Base-TX/) and USB 2.0 connectivity
  • 1 line, 16 character backlit LCD display

  • 5-Year Warranty Upgrade 607 x 405px
  • 24_7 Helpdesk
  • Free Recycling

Overview

This fast, high-performance printer allows you to scale your paper capacity for your business requirements by adding optional paper trays for a total capacity of 1,340 sheets of paper.  Reduces paper refills and saves time.

HLL5100DN also has advanced security features to help prevent unauthorised printing, protect sensitive business documents and save costs.

With a high yield toner enabling you to print 8,000 pages, you can reduce your print costs and the frequency of replacements, meaning less interruption and improved productivity for your business.

printer-selector_585x400px_v2

Is this the right printer for my needs?

Find out by answering five simple questions using our helpful
Printer Selector Tool.
Women sat in front of computer

Maximise Performance & Reduce Print Spend

Versatile paper handling enables you to add multiple lower trays across the range. This provides maximum device uptime, as less time is spent replenishing paper trays. With the optional high yield toner cartridges, productivity is enhanced whilst reducing your overall printing costs.
Mobile phone with laser printer

Better reliability

Built to perform for longer and meet the demands of high output work environments, the L5000 range has been totally remodelled with robust build quality that’s even more resilient and hardwearing.
Put put coming out of laser printer

Tighter security

In today's business environment, we understand that organisations demand the highest levels of security. In order to address this, the L5000 range is enabled with secure function lock 3.0, 802.1x network security and Internet Protocol Security (IPsec). The range also boasts Print Archive, Secure Reset and Certificate Management.
group of people sat with laser printer

Flexible print solutions from Brother

Our L5000 range is designed to seamlessly integrate and meet your business requirements. Compatible with a range of print software and services, Brother Solutions can be specifically tailored to your requirements and enables you to maximise your print efficiency and minimise costs.
Eco-friendly

Eco-friendly

The L5000 range is designed to help your business work more efficiently, it is also more energy efficient, reducing impact on the environment and lowering your costs at the same time.

Specifications

Features and Specifications

Printer type Mono
Display Backlit LCD
Display size 16 characters x 1 line
Laser classification Class 1 Laser Product (IEC 60825-1:2007)
Max paper size A4
Memory 256MB
Processor Cortex-A9 800MHz
Technology Laser
Connectivity Wired Network
Local interface Hi-Speed USB 2.0
Wired network interface Ethernet (10Base-T/100Base-TX)
Dimensions with carton 485 (w) x 450 (d) x 377 (h) mm
Weight with carton 13 kg
Dimensions without carton 373 (w) x 388 (d) x 255 (h) mm
Weight without carton (includes toner & drum) 10.7 kg
Sound power Printing 6.90BA, Quiet mode printing 6.47BA, Ready mode up to 4.70BA
Sound pressure Printing 52dbA, quiet mode printing 50dbA, ready mode up to 34dbA
Typical electrical consumption 1.763 KWh / Week
Contents Inbox Toner - Up to 2,000 pages, Drum Unit, Power supply cord, Product safety guide, Software disc, Warranty card, Quick setup guide
Types and sizes Standard Tray - A4, Letter, A5, A5(Long Edge), A6, Executive, Folio. Optional Tray - A4, Letter, A5, Executive, Folio. Multi Purpose (MP) Tray - Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm. 2-sided Print – A4
Weights Standard & Optional Trays – plain, recycled, coloured and letterhead paper (between 60 - 120gsm). Multi Purpose Tray - plain, recycled, coloured and letterhead paper (between 60 - 200gsm). 2-sided Print - plain, recycled, coloured and letterhead paper (between 60 - 105gsm)
Wired network security SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP), SNMP v3, Kerberos, IPsec, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Supported Windows®: Windows 10® (32 & 64 bit editions), Windows 8® (32 & 64 bit editions),Windows 7® (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows® XP Professional (32 & 64 bit editions), Windows® XP Home Edition, Windows® Server 2012, Windows® Server 2008R2, Windows® Server 2008 (32 & 64 bit editions), Windows® Server 2003 (32 & 64 bit editions). / Mac: OS X 10.8.5, 10.9.x, 10.10.x, 10.11.x or greater / Linux CUPS, LPD/LPRng (x86/x64 environment)
Paper input Lower Tray – 250 sheets, Multi Purpose Tray – 50 sheets
Paper output Face Down - 150 sheets Face Up (Straight Paper Path) - 1 sheet
A4 2-sided print speed Up to 20 sides per minute
A4 standard print speed Up to 40 pages per minute
Resolution Up to 1,200 x1,200dpi
Automatic 2 sided print Yes
Emulations PCL6, BR-Script3 (Postscript®3™ Language Emulation), IBM Proprinter XL, Epson FX-850, PDF Version 1.7, XPS Version 1.0
First print out time Less than 7.2 seconds
Recommended monthly volume Up to 3,500 pages
802.1x Yes
IP filter Yes
Secure function lock v3 Yes
Secure print Yes
Secure printing with SSL Yes
Supported AirPrint, Android Print Service Plugin, Cortado Cloud Print, Google Cloud Print 2.0, iPrint&Scan, Managed Print Services, Mopria™, PrintSmart Solutions
Accessories Optional Lower Tray LT-5500 - 250 sheets, Optional Lower Tray LT-6500 - 520 sheets
Supplies Inbox Toner Approx. 2,000 pages, Standard Toner TN-3415 - Approx. 3,000 pages, High Yield Toner TN-3425 - Approx. 8,000 pages, Drum DR-3415 - Approx. 50,000 A4 pages (3 pages per job) / 30,000 A4 pages (1 page per job)

Rating and Reviews

Customer reviews

  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getReviews, 0ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Supplies and Accessories

Supplies

Accessories

Environment

Free Recycling

Our comprehensive recycling programme ensures you can access a variety of free and responsible pathways for recycling your empty consumables and old print hardware.

Operating since 2008 with the support of certified e-waste specialists, Recycling Group, Brother has made recycling simple and easy.

Explore Recycling

Toitu

Brother New Zealand is proud to be a certified carbon-neutral organisation, recognised by Toitū net carbonzero certification.

First achieved in 2013, Brother was the country's first printer brand to receive the certification, which at the time was called carboNZero certification. This certification acknowledges our commitment to effectively managing, reducing, and offsetting carbon emissions.

Visit Toitū Envirocare

HQ_308 x 410px

Eco Choice Aotearoa is New Zealand's official environmental label, initiated and endorsed by the New Zealand Government, although independently operated, and recognises the increasing effort of manufacturers to reduce the environmental impact of their products.

Eco Choice Aotearoa provides a credible and independent guide for people who want to purchase and use products that are proven to be better for the environment.

Selected Brother and Konica Minolta products hold Eco Choice Aotearoa certification. This is 'Copying machines, printers, fax machines & multi-functional devices' under Licence No. 2410083.

View Certified Products

young girl blowing bubbles in a field brother

The machine was tested in accordance with Appendix 2 of RAL-UZ-122:2006 Blue Angel criteria for Office Equipment with Printing Function (Printers, Copiers, Multifunction Devices) and found it satisfies air emissions.
