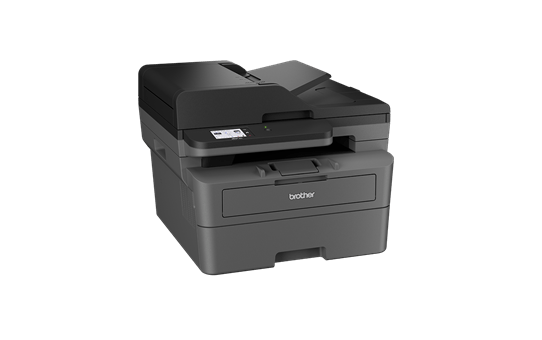

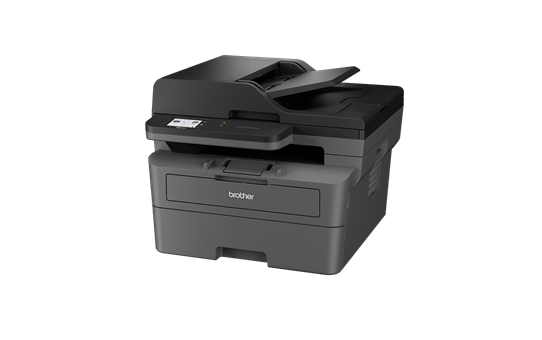

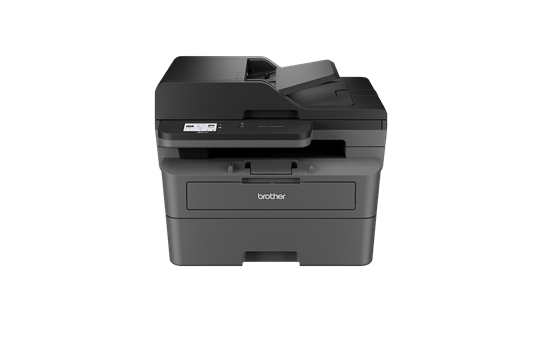

MFC-L2820DW Mono Laser A4 Multi-Function Printer

Effortlessly efficient.

New product!

$359.95 RRP (Inc. GST)

At a glance

Work smarter with an expertly designed machine, built for effortless efficiency. Keep your home or small office moving with long-lasting supplies with up to 3,000-page replacement toners and fast print speeds of up to 32ppm. Offering the latest industry-standard security, this compact device features a generous 6.8cm touchscreen. Experience flawless results reliably, every day.

Key Features

Mono (black and white) printing
Automatic 2-sided print up to 16 sides per minute
Print speeds up to 32 pages per minute (based on ISO/IEC 24734)
USB 2.0, Network, Wireless LAN and WiFi Direct connectivity
Single-sided ADF (Automatic Document Feeder) scans up to 22.5 images per minute (based on ISO/IEC 17991)
Up to 1,200 pages inbox toner (based on ISO/IEC 19752) plus optional high yield toner cartridges to reduce printing costs

Overview

Work smarter - the 2-sided (duplex) print, high-capacity input and output tray and 50-sheet Automatic Document Feeder (ADF) help save you time, enabling you to get on with other tasks.

Is this the right printer for my needs?

Find out by answering five simple questions using our helpful
Printer Selector tool.

Effortless

Make your day easier and your printing tasks a breeze, with simple set up using the Brother Mobile Connect app, enabling you to print documents from your mobile devices.

Stay connected

Make the most of 100Mbps Ethernet, 2.4/5GHz WiFi or USB connection and an easy to use 6.8cm colour touchscreen.

Print longer

Make the most of a generous 1,200 page in-box toner and easy to change high-yield replacement toners that print up to 3,000 pages, reducing your frequency to replace.

Secure by design

Keep pace with the ever-evolving legislation on privacy and data security - our devices offer the latest industry-standard security features to securely protect your data. Robust features include triple-layer security at a device, network and document level which is verified through external security certification.

Compact and expertly engineered

Our most compact monochrome range delivers high-quality outputs in a small footprint, allowing you to make the most of your home or small office space. Every component has been optimised to reduce the overall size of the device without compromising on performance.

Specifications

Features and Specifications

Printer type	Mono
Function	Print, Copy, Scan, Fax
Display	Colour touchscreen
Display size	6.8cm TFT Colour LCD. W54.0mm x L40.5mm
Laser classification	Class 1 Laser Product (IEC60825-1:2014)
Max paper size	A4
Memory	128MB
Processor	600MHz
Technology	Laser

Connectivity	Wired Network, Wireless, USB
NFC	No
USB interface	Hi-speed USB 2.0 interface for connecting to a computer
Wi-Fi Direct	Yes
Wired network interface	Ethernet 10Base-T/100Base-TX
Wireless network interface	Wireless LAN 2.4GHz and 5GHz. Infrastructure Mode: IEEE 802.11b/g/n, IEEE 802.11a/n, Wi-Fi Direct: IEEE 802.11g/n, IEEE 802.11a/n.

Supported	AirPrint, Wi-Fi Direct™, Mopria™

2-sided copy	No
Resolution	Up to 600 x 600dpi
Speed	Up to 32 copies per minute. （Quiet Mode: Up to 13 copies per minute).
Enlargement / reduction ratio	25%-400% in 1% increaments
N in 1	Yes (saves paper by copying two or four pages of your document onto one page of the copy)

Dimensions with carton	W580 x D517 x H434 mm
Weight with carton	15.3 kg
Dimensions without carton	W410 x D399 x H319 mm
Weight without carton (includes toner & drum)	11.6 kg

Operating humidity	20 - 80 %
Operating temperature	10 - 32.5 degrees Celsius
Storage humidity	35 - 85 %
Storage temperature	0 - 40 degrees Celsius
Sound power	Printing: LWAc = 6.63 B(A), Ready: Inaudible, Quiet Mode: LWAc = 6.12 B(A) * In accordance with ISO 7779
Sound pressure	Printing: LpAm = 49 dB(A), Ready: LpAm =30 dB(A), Quiet Mode: LpAm = 44 dB(A) * In accordance with ISO 7779

Fax modem	33.6 kbps
Internet fax	Yes (ITU T.37 simple mode)

Contents	Inbox toner: Approx. 1,200 pages in accordance with ISO/IEC 19752

Types and sizes	Standard Tray: Plain Paper, Thin Paper, Recycled Paper, Thick Paper, A4, Letter, B5(JIS), B5(ISO), A5, A5(Long Edge), B6(JIS), A6, Executive, A4 Short, 16K(195x270mm). Manual Feed Slot: Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Width 76.2 to 215.9 mm, Length 127 to 355.6 mm (Width 3" to 8.5", Length 5" to 14") Envelope; COM-10, DL, C5, Monarch. Duplex: Plain Paper, Thin Paper, Recycled Paper, A4. ADF: Plain Paper, Recycled Paper, Width 105 to 215.9 mm, Length 147.3 to 355.6 mm
Weights	Standard Tray: 60 to 163gsm, Manual Feed Slot: 60 to 230gsm, Duplex & ADF: 60 to 105gsm

Types and sizes

Standard Tray: Plain Paper, Thin Paper, Recycled Paper, Thick Paper, A4, Letter, B5(JIS), B5(ISO), A5, A5(Long Edge), B6(JIS), A6, Executive, A4 Short, 16K(195x270mm). Manual Feed Slot: Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Width 76.2 to 215.9 mm, Length 127 to 355.6 mm (Width 3" to 8.5", Length 5" to 14") Envelope; COM-10, DL, C5, Monarch. Duplex: Plain Paper, Thin Paper, Recycled Paper, A4. ADF: Plain Paper, Recycled Paper, Width 105 to 215.9 mm, Length 147.3 to 355.6 mm

Weights

Standard Tray: 60 to 163gsm, Manual Feed Slot: 60 to 230gsm, Duplex & ADF: 60 to 105gsm

Wi-Fi Direct™	Yes
Wired network	Node type: NC-9800h type 2. Ethernet.
Wired network security	APOP, SMTP-AUTH, SSL/TLS (SMTP, POP3, IMAP4,FTP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth(SMTP, POP3, IMAP4) *When Internet FAX is downloaded.
Wireless network	Node type: NC-9300w type2. Wireless LAN(2.4GHz & 5GHz)
Wireless network security	APOP, SMTP-AUTH, SSL/TLS (SMTP, POP3, IMAP4,FTP), SNMP v3, 802.1x ( EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth(SMTP, POP3, IMAP4) When Internet FAX is downloaded. WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) Wi-Fi Direct supports WPA2-PSK (AES) only.

Supported	Server 2012, Server 2012 R2, 10, Server 2016, Server 2019. Windows11, Server2022, Linux.

Paper input	Standard tray: 250 sheets, ADF: 50 sheets, Manual Feed Slot: 1 sheet
Paper output	120 Sheets Face Down (80g/m2) 1 sheet face-up (straight paper path) *Actual output tray capacity may vary depending on environmental conditions.

A4 2-sided print speed	Up to 16 sides per minute (based on ISO/IEC 24734)
A4 standard print speed	Up to 32 pages per minute (based on ISO/IEC 24734)
Resolution	Up to 1200 x 1200 dpi
Automatic 2 sided print	Yes
Emulations	No
First print out time	Less than 8.5 seconds
Recommended monthly volume	Up to 1,500 pages

2-Sided scan	No
Resolution	Glass(Optical): Max 1200 x 1200 dpi, ADF(Optical): Max 600 x 600 dpi, Resolution (Interpolated): Max. 19,200 x 19,200 dpi
Scan to	Email, Image, OCR, File, Email Server, FTP, FTPS, HTTPS.
Speed	A4：22.5 images per minute (mono), 7.5 images per minute (colour) In accordance with ISO/IEC17991

Secure function lock v3	Yes
Setting lock	Yes

High-yield toner	TN2530XL: Approx. 3,000 pages in accordance with ISO/IEC 19752
Inbox toner	Approx. 1,200 pages in accordance with ISO/IEC 19752
Standard toner	TN2530: Approx. 1,200 pages in accordance with ISO/IEC 19752
Supplies	Drum Unit DR2530 Approx. 15,000 pages (1page/job)

Ratings and Reviews

Customer reviews

Supplies and Accessories

Supplies

DR2530 Drum

Genuine Brother DR2530 Black Replacement Drum Unit – Single Pack. Delivers approximately 15,000 pages (1 page/job).

View details
TN2530 Black Toner

Brother TN2530 black toner cartridge. Prints approximately 1,200 pages (in accordance with ISO/IEC 19752).

View details
TN2530XL Black Toner

Brother TN2530XL black high yield toner cartridge. Prints approximately 3,000 pages (in accordance with ISO/IEC 19752)

View details
TN2530XL2PK Black Toner 2-Pack

Brother TN2530XL2PK black high yield toner cartridge 2-pack. Prints approximately 3,000 pages per cartridge (in accordance with ISO/IEC 19752)

View details
