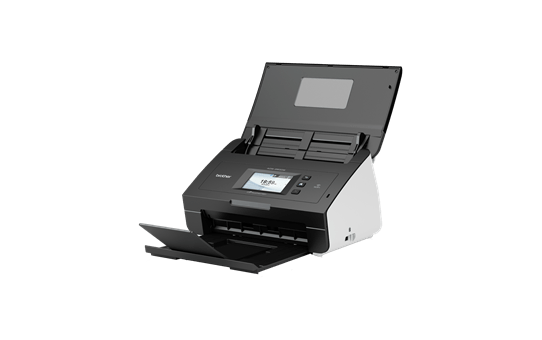

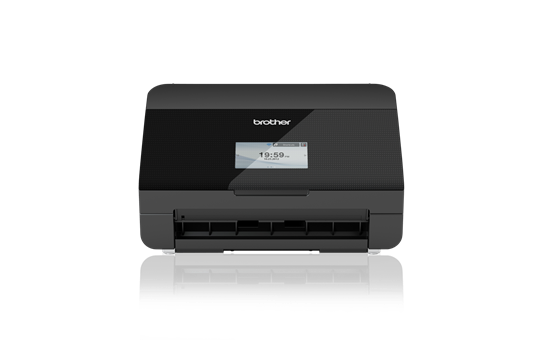

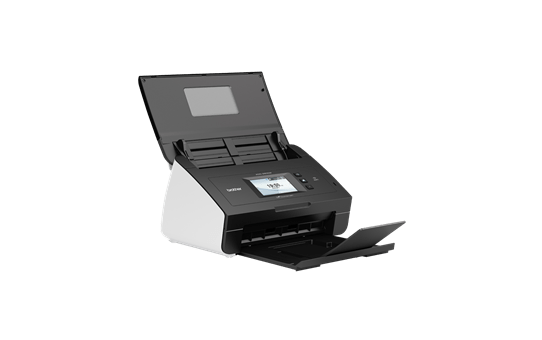

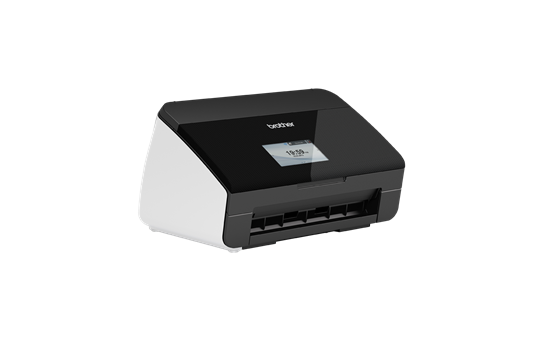

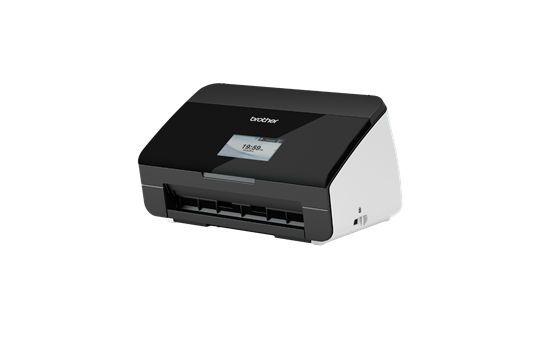

The ultimate wireless business scanner
Networked desktop with auto 2-sided scan. Network facility for businesses with a workgroup requirement. Users can upload scans direct to their network folders and share across the business. The LCD touch screen allows users to quickly scroll through features. Suitable for businesses with multiple users requiring regular scanning.
With the Brother scanners, legal firms can significantly cut down their admin time dealing with the thousands of documents they need to collect, store and share.
Finance and insurance companies have an increasing need for paperless document management whether for compliance, internal collaboration or customer requirements. Scanning helps reduces the time and effort in long term storage and management of contracts. Brother scanners help bridge the gap between paper processes and effective digitisation.
| Usage type | Desktop |
|---|---|
| Display | Colour touchscreen |
| Display size | 9.3cm |
| Multi feed sensor | Yes |
| RAM | 256 MB |
| USB interface | High Speed USB 2.0 |
|---|---|
| Wired network interface | Yes |
| Wireless network interface | Yes |
| Dimensions with carton | 383 W x 291 D x 285 H mm |
|---|---|
| With carton | 5700 g |
| Dimensions without carton | 299 W x 220 D x 179 H mm |
| Weight | 3600 |
| Printing | 20 watts |
|---|---|
| Ready mode | 4 watts |
| Off | 0.4 watts |
| Sleep mode | 2 watts |
| Sound power | 62 dB |
| Sound pressure | 49 dBA |
| Operating humidity | 20 - 80% |
|---|---|
| Operating temperature | 5 - 35C |
| AC adaptor | Yes |
|---|---|
| Carrier sheet | Yes |
| Plastic card carrier sheet | Yes |
| Power supply cord | Yes |
| Product safety guide | Yes |
| Receipt carrier sheet | Yes |
| Software disc | Driver software for Windows® and Mac OS |
| USB cable | Yes |
| User guide | Yes |
| Quick setup guide | Yes |
| Types and sizes | Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card |
|---|---|
| Weights | 52-110 gsm (multiple sheets) |
| ADF media sizes | Paper (multiple sheets): 51-215.9x70-355.6mm, Paper (single sheet): 51, 215.9x70x863mm, Plastic card: 85.6-54x0.76mm, Plastic card Thickness: 0.25-0.76mm |
| IPv4 | Yes |
|---|---|
| Wired network | Built in 10Base‐T/100Base‐TX |
| Wired network security | APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (HTTPS, SMTP), SNMP v3 |
| Wireless network | Built‐in 802.11b/g/n wireless network |
| Wireless network security | APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (HTTPS, SMTP), SNMP v3 |
| 2-Sided scan | Yes |
|---|---|
| ADF | 50 |
| Scan to | email, Image, OCR, File, email server, Network, USB, Cloud, SharePoint |
| Colour A4 scan speed | 24 ppm |
| Colour depth | 30/24 bit |
| Greyscale | 256 levels |
| ICA compatibility | Yes |
| Interpolated scan resolution | 1200 x 1200 dpi |
| ISIS compatibility | Yes |
| Paper sensor | Yes |
| SANE compatibility | Yes |
| Scan resolution from ADF | 600 x 600 |
| TWAIN compatibility | Windows 7, Windows 8, Windows Vista, Windows XP |
| WIA compatibility | Yes |
| Optional accessories | Pickup roller ADF (Life –50,000 sheets) PUR‐A0001, Separation Pad ADF ( Life‐50,000 sheets) SP‐A0001 |
|---|---|
| Plastic card carrier sheet | (Life –500 scans) CS‐CA001 |
| Receipt carrier sheet | (Life –500 scans) CS‐A3001 |
