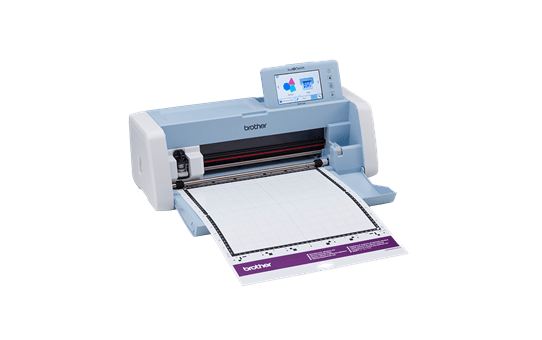

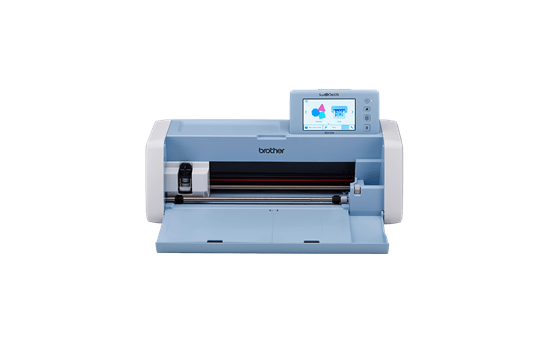

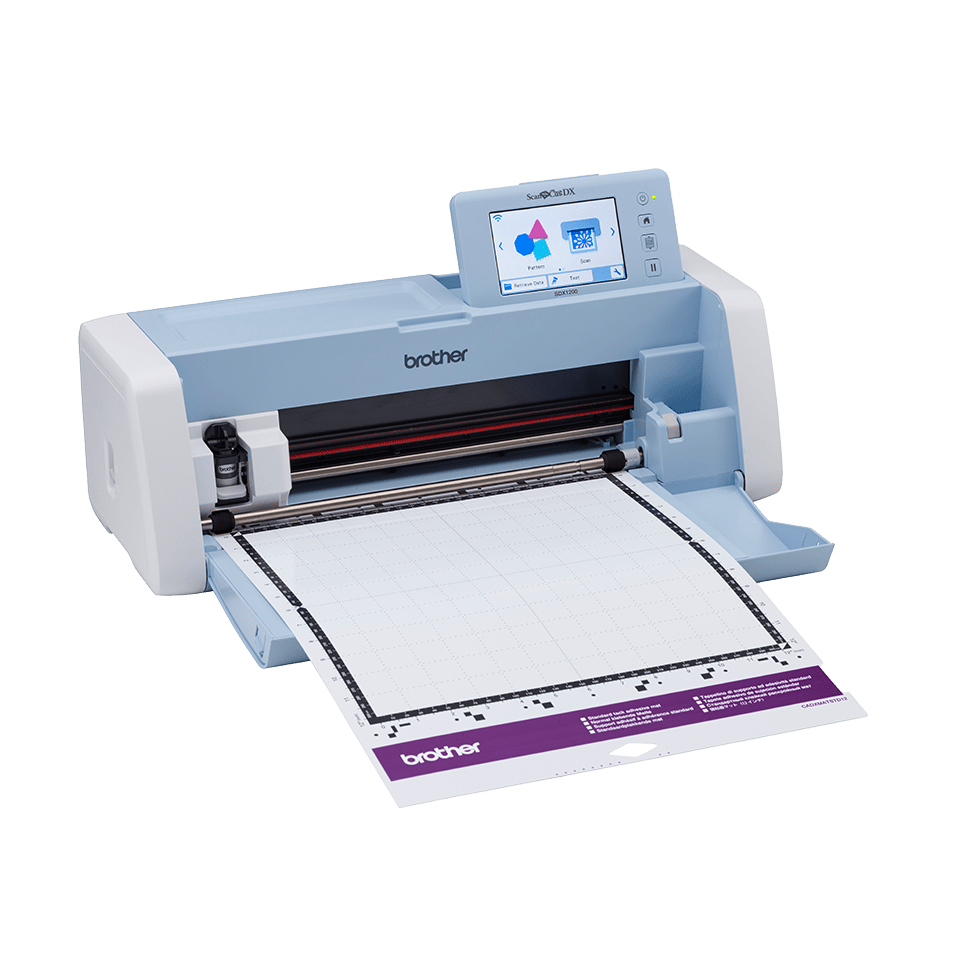

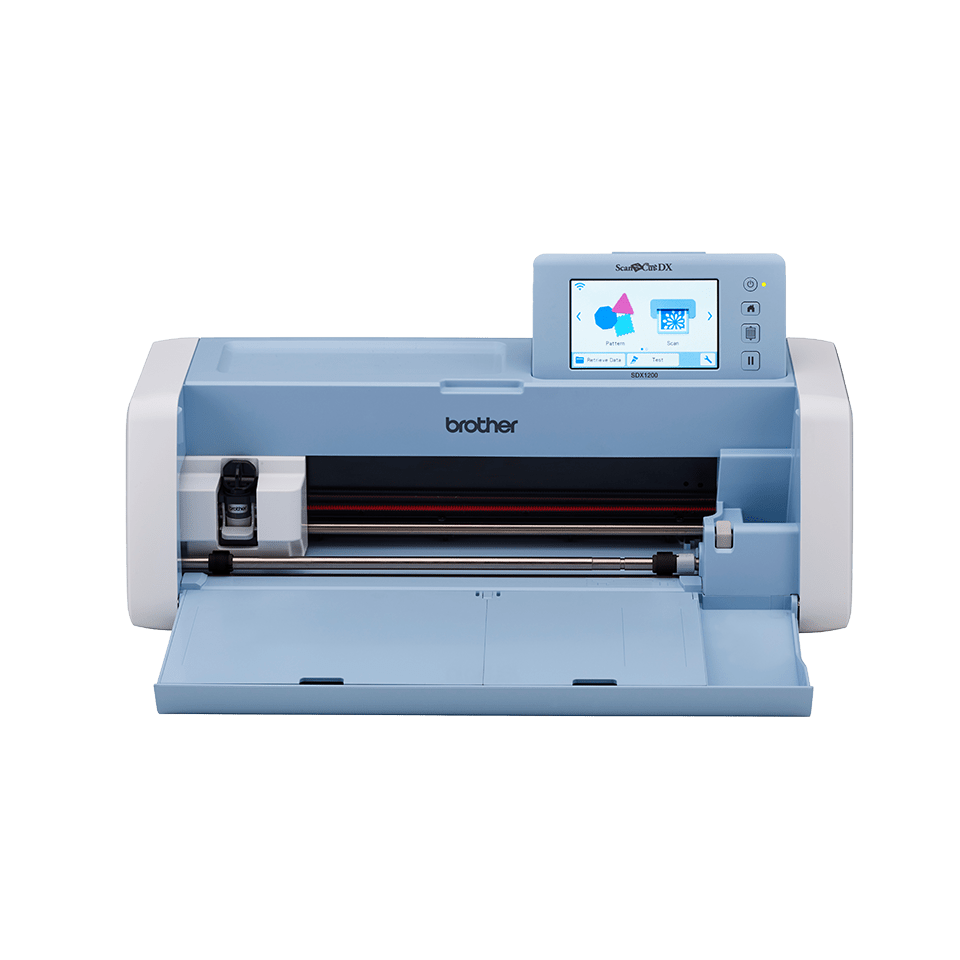

SDX1200 ScanNCut DX Craft Cutting Machine

The world's first electronic cutting machine with a built-in scanner now with Blade Sensor technology.

Find an authorised reseller

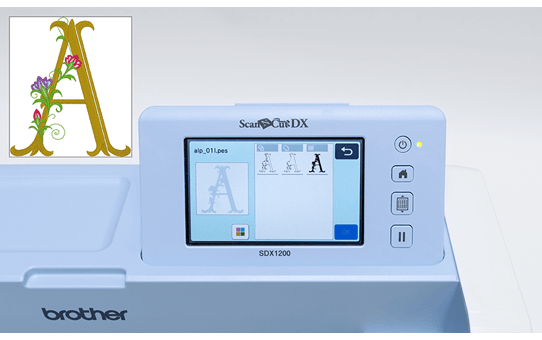

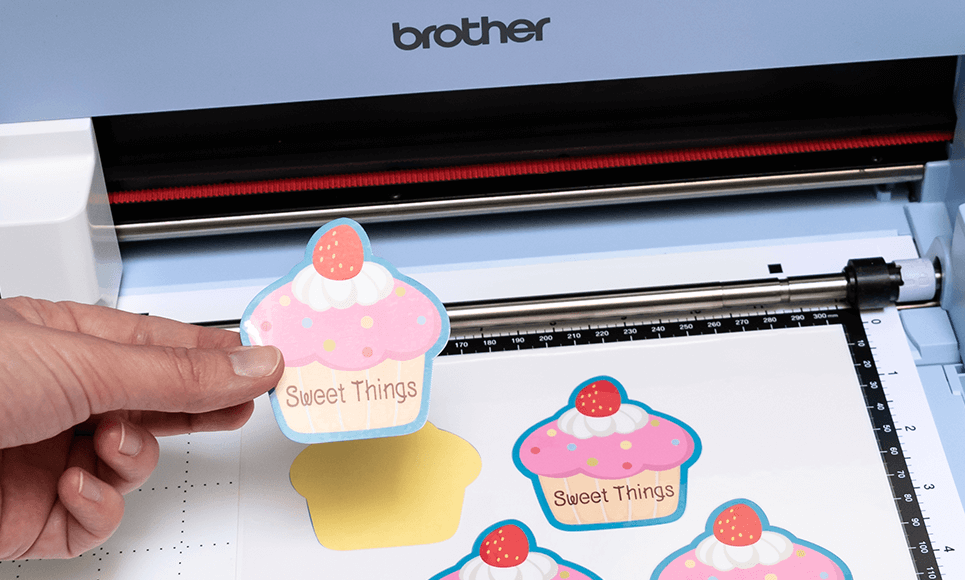

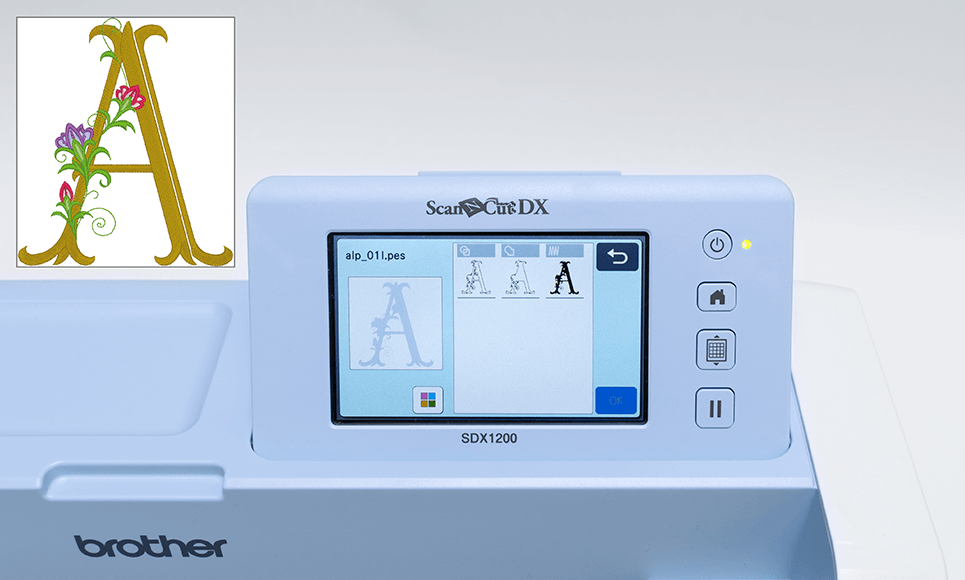

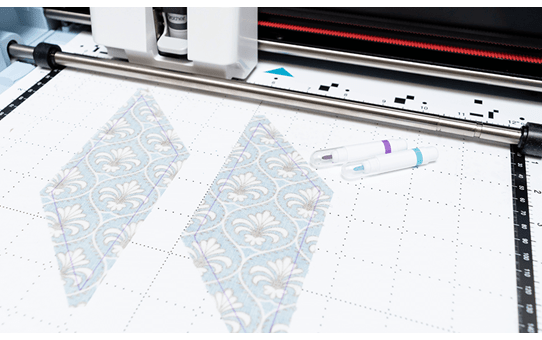

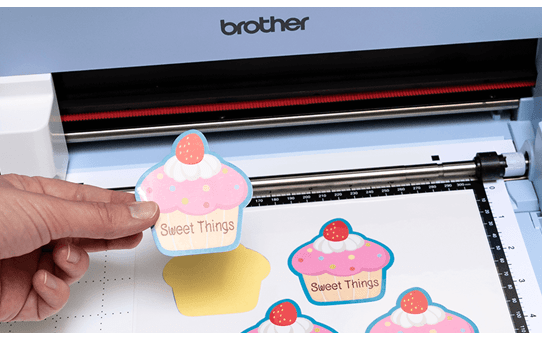

Cut card, self-adhesive vinyl, felt, leather, and foam with the new Auto Blade that automatically detects the thickness of your material. No PC required. Edit cut data on the 5 inch LCD touch screen display. Reads SVG cutting files and PES embroidery files. Convert embroidery designs to cut data directly on the machine. Cuts up to 3mm. Includes accessories for drawing, cutting fabrics, and making fabric appliques. Ready to cut, 1303 built-in designs, 17 built-in fonts. USB port for storing and importing files. Wireless network ready.

Looking for consumables and accessories for your SDX1200 ScanNCut machine? Click here.

Key Features

  • Extra-large 5" LCD touchscreen
  • Built-in scanner (scans up to 24")
  • Totally standalone - no PC needed
  • 1,300+ built-in designs, and 17 fonts
  • Up to 3mm cutting depth with FULLY automatic blade
  • 11.7" (297 mm) width cutting area

  • 3-Year Return-to-Base Warranty

Overview

For help and advice on setting up your ScanNCut machine, visit support.brother.com, and you can also take a look at our accessories page to make sure you have everything you need to get started.

What's in the box?

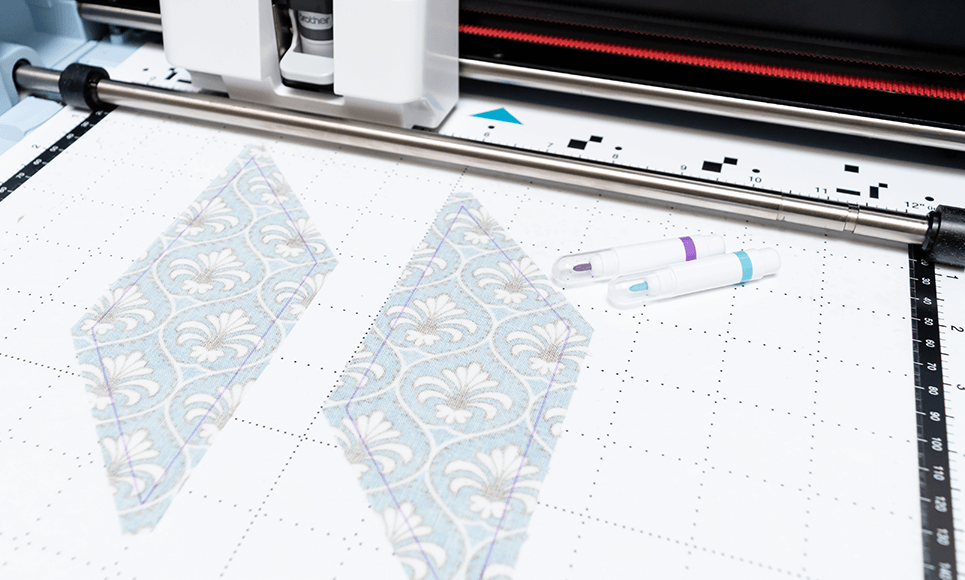

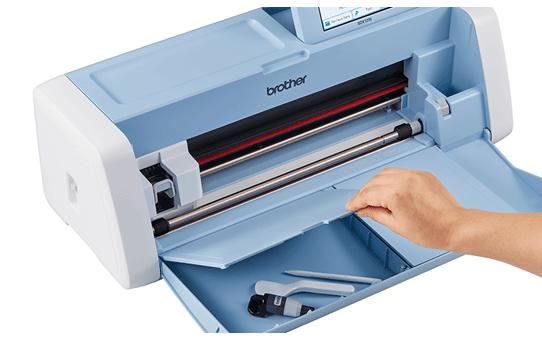

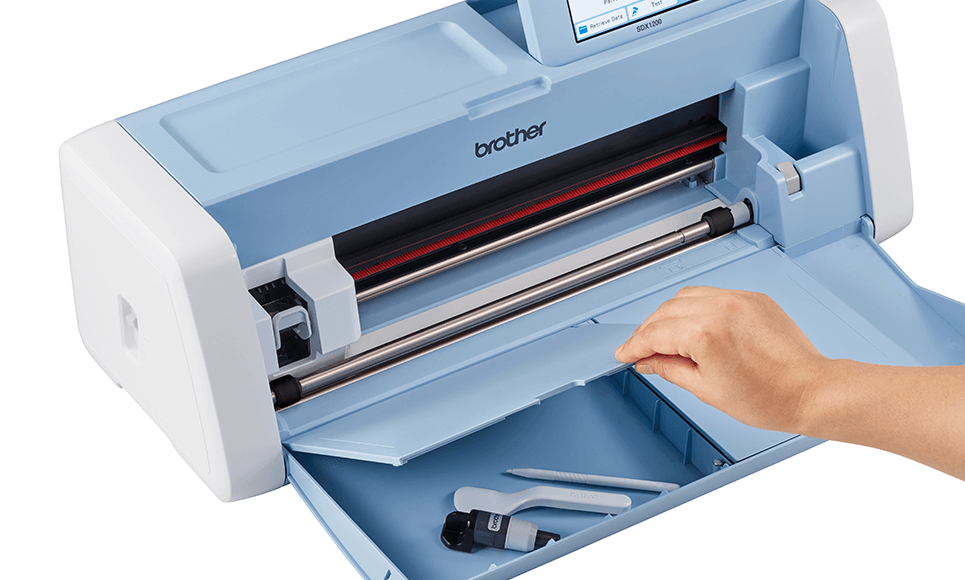

3mm automatic cut blade holder, 3mm automatic cut blade, Thin fabric automatic cut blade holder, Thin fabric automatic cut blade, Pen holder, 6 colour pen set, Erasable pen set, High tack fabric support sheet, Iron-on fabric contact sheet, Standard tack mat 12" x 12" (305 mm x 305 mm), Low tack mat 12" x 12" (305 mm x 305 mm), Spatula, Accessory pouch, Touch pen

Accessories_scanncut

Scan it, cut it and create it in a matter of minutes with the SDX1200, our ultimate electronic craft cutting machine.

As the world’s first range of home and hobby cutting machines offering a built-in scanner, only Brother’s ScanNCut machines allow you to scan any image or sketch and then precisely cut the shapes or outlines, with no need for design cartridges or a PC.

The SDX1200 – which is one of the most sophisticated models in the line-up – boasts another industry first: a fully automatic blade that makes bringing your designs to life in paper or fabric even easier.

Specification Details

Features and Specifications

Brand ScanNCut
Design Computerised
Machine Size Compact and Lightweight
Machine Type Craft, Die Cutter
Skill Level Advanced, Beginner, Intermediate
Use Business, Home
Contents 3mm automatic cut blade holder, 3mm automatic cut blade, Thin fabric automatic cut blade holder, Thin fabric automatic cut blade, Pen holder, 6 colour pen set, Erasable pen set, High tack fabric support sheet, Iron-on fabric contact sheet, Standard tack mat 12" x 12" (305 mm x 305 mm), Low tack mat 12" x 12" (305 mm x 305 mm), Spatula, Accessory pouch, Touch pen
Included Accessories Accessories Pouch, Auto Blade 3mm (CADXBLD1), Auto Blade Holder (CADXBLD1), Colour Pen - 6pcs (CAPEN1), Erasable Pen - 2pcs (CAPEN 2), Getting Started Guide and Sample Cardstock, High Tack Sheet for Fabric Cutting (CASTBL2), Iron-on Contact Sheet (CASTBL1), Pen Holder (CAPENHL1), Power Cord, Quick Reference Guide, Spatula, Thin Fabric Auto Blade (CADXBLDQ1), Thin Fabric Auto Blade Holder (CADXHLDQ1), Touch Pen
Deep Cut Blade Yes
Full Auto Blade Yes
Standard Blade Yes
Thin Fabric Blade (auto blade) Yes
Direct Connection via USB Cable (cable not included) Yes
Wireless Interface WLAN Connection
Scanner Resolution (optical) 600dpi
Scanning Area 12 x 24" (305 x 610 mm)
Display Size 5"
Display Type LCD Colour Touchscreen
Auto Power Off Yes
Sleep Mode Yes
Adjustable Holder Pressure Automatic
Blade Depth Adjustment Automatic
Built-In Designs 1303
Built-In Quilt Patterns 17
Cutting Area 11.7 x 11.7" (297 x 297mm), 11.7 x 24" with optional mat (297 x 610mm)
Maximum Thickness for Cutting Auto Blade: 3mm, Deep Cut Blade: 1.5mm, Standard Blade: 0.7mm, Thin Fabric Auto Blade: 3mm
FCM Native to ScanNCut and CanvasWorkspace
PES Yes, all PES Data

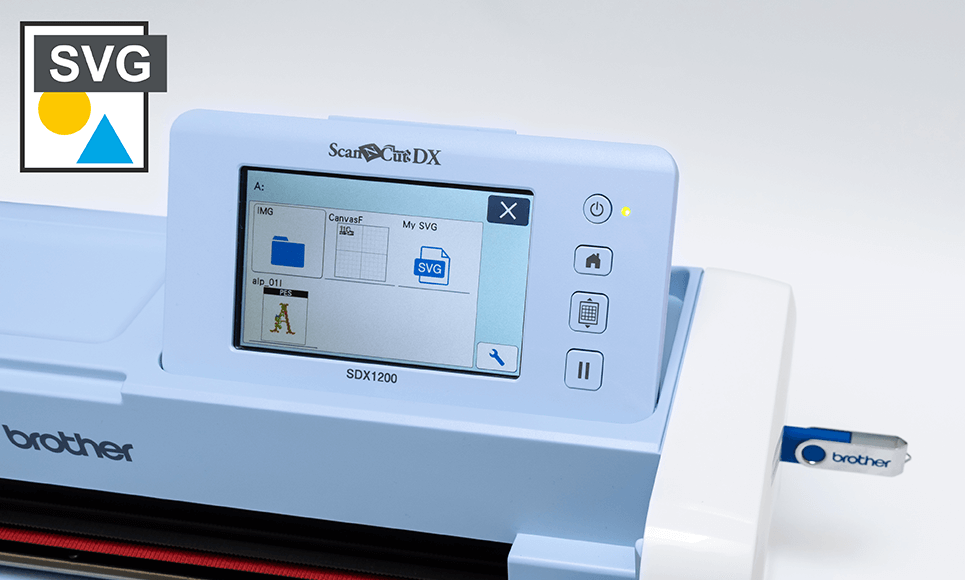

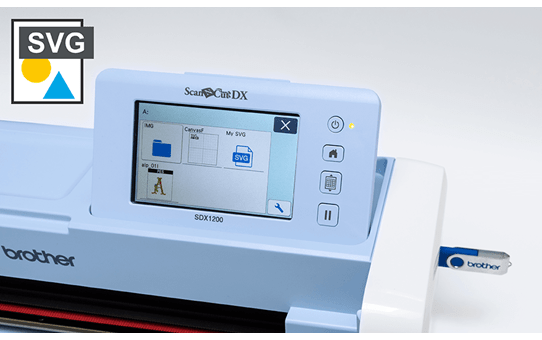

SVG Via Canvas Workspace or Direct Import to the Machine
Edit On-screen Yes
Max Cutting Depth 3mm
Scanner Yes
Standalone/PC Peripheral Standalone
WLAN Capability Yes

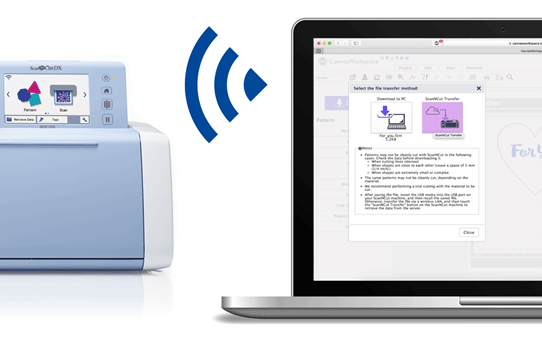

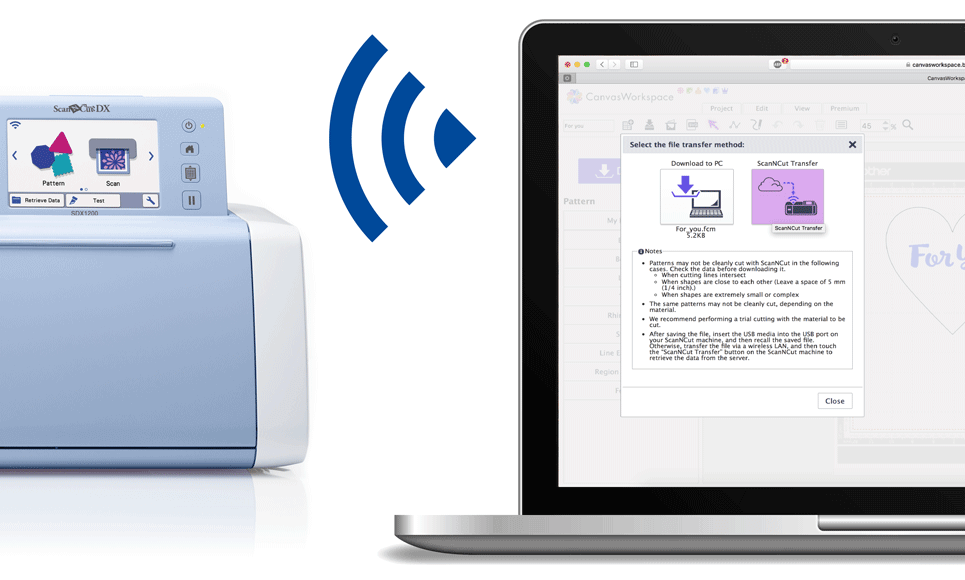

CanvasWorkspace for PC & MacOS Yes
CanvasWorkspace for Web Yes
Warranty Brother 3 Year Warranty *Business Purpose 1 year only

Optional Supplies and Accessories

Tools

  • Brayer (CABRY1)
  • Scraper Tool (CASCP1)
  • Spatula and Hook Set (CASPHK1)

Premium Kits

  • Embossing Starter Kit (CAEBSKIT1)
  • Foiling Starter Kit (CAFTKIT1)
  • Roll Feed Attachment (CADXRF2)
  • Rhinestone Starter Kit (CARSKIT1)
  • Calligraphy Starter Kit (CADXCLGKIT1)
  • Paper Piercing Starter Kit (CADXPPKIT1)



Blades, Holders & Pens

  • Auto Blade 3mm (CADXBLD1)
  • Auto Blade Holder (CADXBLD1)
  • Thin Fabric Auto Blade (CADXBLDQ1)
  • Thin Fabric Auto Blade Holder (CADXHLDQ1)
  • Pen Holder (CAPENHL1)
  • Colour Pen - 6pcs (CAPEN1)
  • Erasable Pen - 2pcs (CAPEN2)
  • Universal Pen Holder (CAUNIPHL1)
  • Small Universal Pen Holder (CAUNIPHL2)
  • Calligraphy Pens 5pc per set (CADXCLGPEN1, CADXCLGPEN2, CADXCLGPEN3)
  • Foiling Glue Pens (CAFTGP1)
  • Paper Piercing Tools (CADXPPTL1)
  • Embossing Tool Set (CAEBSKIT1)
  • Roll Feeder Cutter (CADXRFC1)


Mats, Sheets & Other Consumables

  • Iron-on Contact Sheet for applique (CASTBL1)
  • High Tack Support Sheet for Fabric Cutting (CASTBL2)
  • Low Tack Mat 12 x 12" "/305 x 350mm (CADXMATLOW12)
  • Jumbo Low Tack Mat 12 x 24" "/305 x 610mm (CADXMATLOW24)
  • Scanning Mat 12 x 12"/305 x 350mm (CADXMATS12)
  • Standard Tack Mat 12 x 12" "/305 x 350mm (CADXMATSTD12)
  • Jumbo Standard tack Mat 12 x 24" "/305 x 610mm (CADXMATSTD24)
  • Jumbo Scanning Mat 12 x 24"/305 x 610mm (CADXMATS24)
  • Printable Sticker Sheet A4 Set (CAPSS1)
  • Rhinestone Sheet Set (CARSSH1)
  • Rhinestone Transfer Sheets (CARSTS1)
  • Stencil sheet (CASTCL1)
  • Embossing Mat (CAEBSMAT1)
  • Bronze Embossing Metal Sheets (CAEBSBMS1)
  • Silver Embossing Metal Sheets (CAEBSSMS1)
  • Embossing Template Sheets (CAEBSTS1)
  • Paper Piercing Mat (CADXPPMAT1)
  • Foil Blue (CAFTSBLU1)
  • Foil Gold (CAFTSGLD1)
  • Foil Green (CAFTSGRN1)
  • Foil Pink (CAFTSPNK1)
  • Foil Red (CAFTSRED1)
  • Foil Silver (CAFTSSIL1)

Design Pattern Collections

  • Quilt Pattern USB1 (CAUSB2)
  • Applique Pattern USB2 (CAUSB2)
  • 3D model Pattern USB4 (CAUSB4)
  • Canvas Premium Pack No. 2 (Enhanced Image Tracing / 25 design patterns) (CACVPPAC2)
  • Christmas Decor Collection (CACDCP01)
  • Paper Piercing Design Collection (CADXPPDP01)
  • Calligraphy Font Collection (CADXCLGFP01)
  • Tattered Lace Collections 1-8 (CATTLP01, CATTLP02, CATTLP03, CATTLP04, CATTLP05, CATTLP06, CATTLP07, CATTLP08)
  • Disney Pattern Collections 1 through 10 (CADSNP01, CADSNP02, CADSNP03, CADSNP04, CADSNP05, CADSNP06, CADSNP07, CADSNP08, CADSNP09, CADSNP10)
