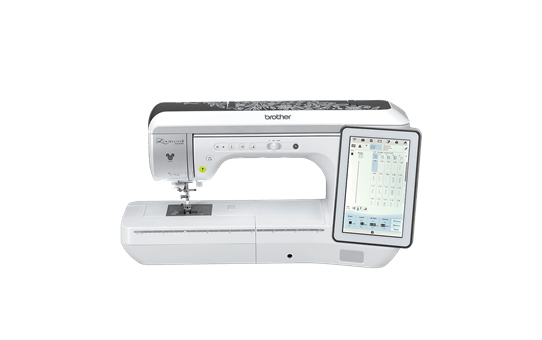

Innov-ís Luminaire 3 XP3 Sewing, Quilting & Embroidery Machine

With world first StitchVision Technology, Innov-ís XP3 Luminaire 3 projects embroidery designs, quilting guides and stitches and includes Brother's My Design Centre digitising software built in to the machine.

$23,499.95 RRP (Inc. GST)

Our flagship model just got better. With the addition of creative functions like stitch tapering, ornate long stitching, yarn couching, edge-to-edge quilting, decorative fill options, new built-in fonts and designs, a no sew setting and even more advanced capabilities, it combines all the features of the XP2 allowing you to expand your creative freedom even further. With the ability to see your stitches projected, scan your embroidery area, create data from illustrations, tackle larger projects and more, the Luminaire XP3 is ahead of its time.

Find a Luminaire Premier Reseller

Key features

  • Large 272 x 408mm (10.7" x 16") embroidery area
  • WIFI enabled for easy download of firmware updates and transfer of files
  • 10.1" high-resolution capacitive colour touch screen

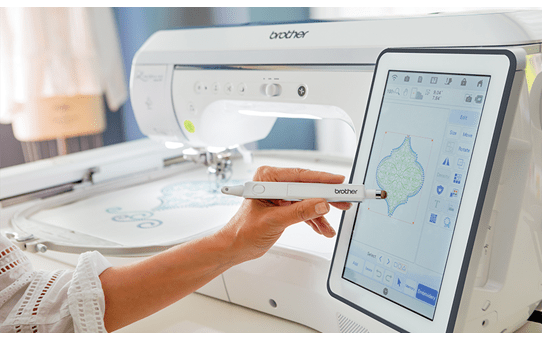

  • Enhanced My Design Centre for creating your own embroidery and sharing your designs directly to your machine
  • 4 included embroidery hoops
  • 1554 built-in embroidery designs including over 192 Disney and Pixar designs

  • 5-Year Return-to-Base Warranty

Overview

Say hello to the Luminaire 3 Innov-ís XP3 — the latest and greatest sewing, embroidery, and quilting machine from Brother. In addition to our revolutionary StitchVision projection technology, the Luminaire 3 has powerful wireless LAN capabilities, so you can transfer embroidery designs directly from your PC. You can even send images from a smart phone or tablet, get alerts when it’s time to change thread, and enable multiple Brother machines to work together. It’s a machine that’s as brilliant as your ideas.

Features in Depth

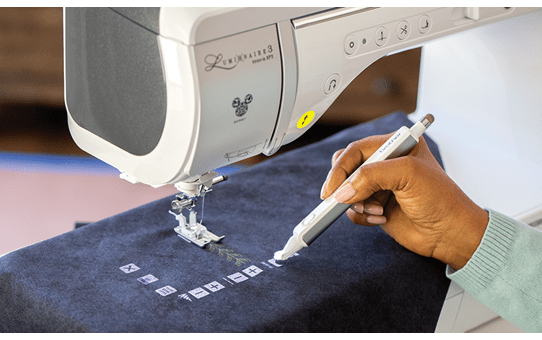

  • Revolutionary StitchVision Technology - Clearly preview stitches and embroidery designs directly on your fabric with this intelligent projection system. Preview, audition and edit your designs and stitches in a 5" x 3" virtual preview area.

  • Guideline Marker Line and Guideline Marker Grid - Project a guideline marker line and marker grid on your fabric, offering you the option of single, double, angled, or grid lines to light your path with precision. Great for creating multiple rows of stitches, parallel stitching, pin tucks, hems, curtain rod pockets, decorative stitches, cross hatch quilting, or smocking.

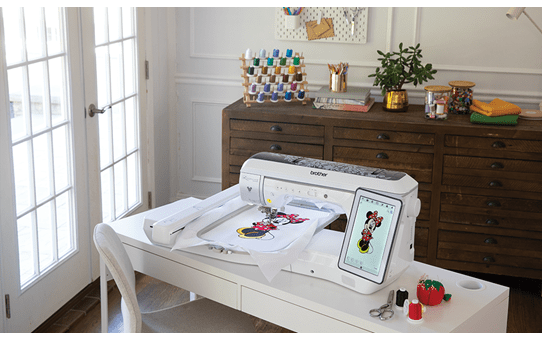

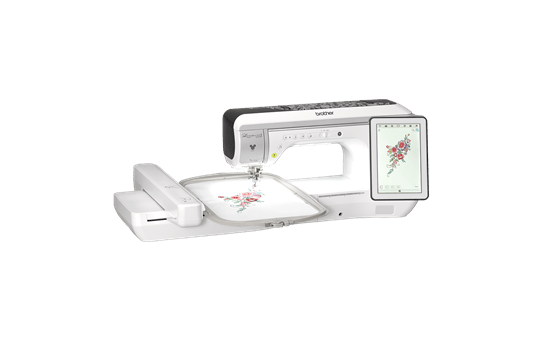

  • Large 10.7" x 16" embroidery area - The largest and most advanced embroidery frame that Brother has ever offered. Create larger-than-life embroidery with ease.

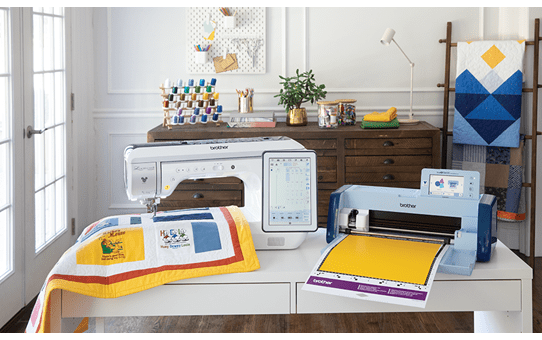

  • My Connection - Your ScanNCut DX and your Brother XP sewing machine can now talk to one another. When connected to your home network, use the My Connection tile on the home screen to utilize the send/retrieve function between the ScanNCut DX and the Brother XP sewing machine. This takes the place of using a USB to transfer designs between these machines and is exclusive to the SDX1250 and SDX2250D. (Activation card for your XP machine included with the SDX1250/SDX2250D and firmware update may be required).

  • Brother-Exclusive ‘Quiltbroidery’ Features - Only the Luminaire 3 XP3 has 5 options of two-color quilting sash designs, which are perfect for eye-catching, colorful borders. Building upon the sensation of the auto-split designs, enjoy 5 hexagon shapes to give you more options, and then choose from either single or triple stitch for quilt sashing your stitches stand out on your projects. We call it 'Quiltbroidery'.

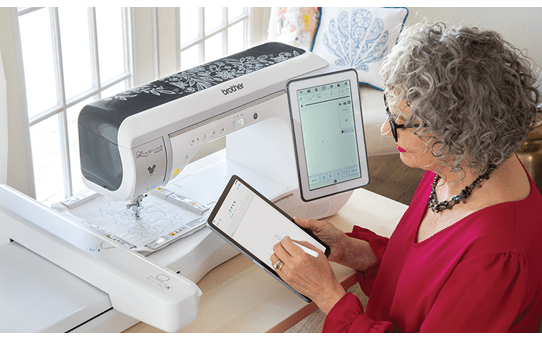

  • Artspira Mobile App - A one-stop shop for embroidery and cutting designs so you can easily customize your next project. Design line-art-inspired drawings right in the palm of your hand with built-in embroidery drawing tools and optional stitch types (straight and zigzag stitch). With all these tools at your fingertips, design hand-drawn drawings up to 4" x 4" (100mm x 100mm) and 5" x 7" (130mm x 180mm) right on your mobile device and then transfer your creations to the Luminaire 3.

  • Stitch Tapering Function - Add a nice, professional taper to jeans, tops, and home décor. Simply choose the stitch you would like to use, the angle of the start and end of the taper, and the number of repeat stitches in the pattern cycle.

  • Ornate Long Stitch Technique - Use any of the 10 Long Stitch built-in designs to add a unique geometric enhancement to just about any project. This technique resembles string art with dramatic long stitches layered to create a unique embellishment.

  • Large Connect Designs - When you want to ‘go big’ on your next embroidery project, the five built-in large connect embroidery designs are a great starting point. Select from ornate flowers, birds, and other elaborate designs that range from 721mm x 383mm (28" x 15") and when combined, allows you to create a large ensemble.

  • Creative Yarn Couching - Enhance your creations with a new technique so you can embroider “letters.” When you fill in the characters using yarn (the color of your choice), you give it a 3D effect. You can use upper case letters, (approx. 3” tall), lower case, numbers, and all characters are also resizable for even more flexibility.

The Innov-ís Luminaire 3 XP3 has many additional features. Please contact your Luminaire Premier Reseller for more details.

What's in the Box

• Embroidery frame 10 x 10cm (4” x 4”)
• Embroidery frame 18 x 13cm (7” x 5”)
• Embroidery frame 27.2 x 27.2cm (10.7” x 10.7”)
• Embroidery frame 40.8 x 27.2cm (16” x 10.7”)
• Scanning frame
• Embroidery foot “W”
• Zigzag foot “J” (on machine)
• Monogramming foot “N”
• Advanced monogramming foot "N+"
• Overcasting foot “G”
• Zipper foot “I”
• Buttonhole foot “A+”
• Buttonhole foot stabilizer
• Blind stitch foot “R”
• Button fitting foot “M”
• Compact dual feed foot
• Regular dual feed foot (on compact dual feed foot)
• MuVit Digital Dual feed foot
• Couching Dual Feed foot
• Straight stitch foot
• Free motion quilting foot “C”
• Free motion echo quilting foot “E”
• Free motion open toe quilting foot “O”
• 1/4 Inch quilting foot (Piecing Foot) with guide
• Adapter
• Screw (small)
• Needle set (75/11 2 needles, 90/14 2 needles, 90/14 2 needles: Ball point needle (gold))
• Twin needle 2.0/11 needle
• Ball point needle set (75/11 2 needles ball point for embroidery HAX130EBBR)
• Bobbin x10 (one is on machine)
• Seam ripper
• Scissors
• Cleaning brush
• Eyelet punch
• Screwdriver (small)
• Screwdriver (large)
• Multi-purpose screwdriver
• Spool cap (small)
• Spool cap (medium) x2 (one is on machine)
• Spool cap (large)
• Spool cap (extra large) x2
• Spool cap base
• Spool stand
• Thread spool insert (mini king thread spool)
• Kind Spool Thread Stand
• Spool holder x2
• Spool felt (on machine)
• Spool felt x2
• Spool net x2
• Bobbin clip x10
• Ring x4
• Embroidery needle plate cover
• Knee Lifter
• Alternate bobbin case (no colour on the screw)
• Standard bobbin case - green marking on the screw (on machine)
• Straight Stitch Needle Plate
• Cord guide bobbin cover (with single hole)
• Bobbin cover (with centre mark)
• Bobbin cover (on machine)
• Magnet x6
• Embroidery bobbin thread
• Embroidery positioning sticker sheets x2 (Snowman Sticker)
• White calibration stickers (solid)
• Stabilizer material
• Grid sheet set
• Chalk pencil
• Dual purpose stylus (battery not included)
• Dual purpose stylus holder
• Fine tipped stylus pen
• Accessory case
• Yarn guide for sewing couching
• Embroidery couching foot “Y”
• Yarn guide for embroidery couching
• Yarn threader
• End point stickers (4 sheets)
• Advanced multi-function foot controller
• Bobbin centre pin and instruction sheet
• Dust cover
• Operation manual (Sewing)
• Operation manual (Embroidery)
• Operation Manual Addendum
• Quick Reference Guide
• Embroidery Design Guide
• Disney Design Guide

*Included accessories subject to change without notice.

Various optional accessories are available to be purchased separately. Please contact your Luminaire Premier Reseller for more details.



Specification Details

Features and Specifications

Brand Innov-is, Luminaire
Design Computerised
Function Embroidery, Quilting, Sewing
Machine Size X-Large
Skill Level Advanced, Small Business Use
Use Business, Home
USB Port 2 Hosts (2.0/2.0) / 0 Slave, USB Port
WLAN Function Yes
Display Resolution (Pixel) 800 x 1280
Display Size 10.1"
Display Size 257 mm
Stitch Selection LCD Touchscreen
Type of Screen High-Resolution IPS LCD-Touchscreen
Brother Mobile Device App My Stitch Monitor, My Design Snap, Artspira, Design Database Transfer
Built-In Lettering Styles (Embroidery) 24 (22 Alphabet, 2 Cyrillic)
Built-In Patterns 1554, including 192 Disney/Pixar designs
Camera To Help Set Embroidery Patterns Position (Camera Sensor) Yes (1M pixel, Wide-view)
Camera with Scan Function (Built-in Camera) Yes - InnovEye Plus Technology
Colour Shuffling Yes
Couching Embroidery Couching foot, couching dual feed foot and thread guide included
Creating a Custom Thread Table Yes
Decorative Fill 48 decorative fills
Deselect Region Yes
Echo Quilting Around the Motif Button Yes
Embroidery Area in mm 270 x 410
Embroidery Frame Clearance for Bobbin Change Yes
Extension Wide Table Optional
Font Editing Functions/Multiple Lines and Alignment (L-C-R) Yes
Font Size Selection (L-M-S) Yes
Frames Included Embroidery Frame: 4 x 4" (100 x 100 mm), Embroidery Frame: 10.7 x 16" (272 x 408 mm), Embroidery Frame: 5" x 7" (130 x 180 mm), Embroidery Frame: 10.7" x 10.7" (272 x 272mm), Scan Frame
High Speed Camera Scanning Yes
Jump Stitch Trim Yes
LED Pointer Yes
Line Motifs 17, including E and V applique stitches, and with flipping capability
Max Embroidery Speed (Stitches per Minute) 1050
Multiple Line Input Yes
My Design Center Yes
New UI (Slide Scroll Operation) Yes, Enhanced (Slide Scrolling, Pinch-in/out, Flick)
Number of Spool Stands 2 plus 2 (foldable)
On Screen Video Tutorials Yes
Pattern - Size, Change Rotation & Mirror Yes
Progress Indication Bar Yes
Projector 3x 5'' area, DLP type
Projector Embroidery Pointer Yes
Quiltbroidery Auto Split of quilt block sashes function with 30 built-in designs (incl. 5x Hexagon/5x 2-colour), Echo Quilting.
Realistic Preview of Patterns Yes
Redo/Undo When Embroidery Editing Yes
Single Colour Pattern Converter Yes
Snowman Embroidery Positioning Marker Yes
Stippling Function Trapunto-like Camera Scan and Add Stippling/ Stippling in Embroidery Edit/ Free Hand Quilting
Zoom Up to 1600% zoom with an easy pan tool
Eco Mode (Auto Power Off/Sleep Mode) Yes
Accessory Box Yes
Accessory Compartment Yes
Bobbin Type Horizontal
Hardware Type Electronic
Insertion of Bobbin Quick Set Bobbin
Instructional Manual PDF Viewer Yes
Number Of Needles 1
One-Finger Needle Plate Removal Yes
On-Screen Video Help 40 instructional videos and a built-in PDF manual
Wide Table Optional
Adjustable presser foot Electronic
Automatic reverse / reinforcement stitch Yes
Couching Sewing mode thread guide and Digital Dual Feed Couching Sole included

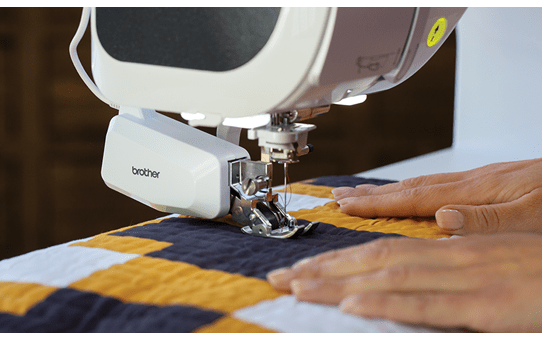

Digital Dual Feed Included, with two different soles
Bobbin Work Optional
Built-In Lettering Styles 3
Camera Detecting Buttonhole foot Yes
Circular Sewing Optional
Combine stitches Yes
Customizable Presser Foot Movement Yes
Direct Dual Feed Yes
Drop feed setting Electronic
Electronic slide speed control yes
End Point Sewing Function Yes, using built-in camera and Snowball End Point Sticker
Extension Wide Table Optional
Feed Dog 7 Point
Free arm sewing Yes
Knee lift 5 Steps Electronic
Lock stitch button Yes
Max. Sewing Speed (Stitches per minute) 1050
Max Sewing Speed for Decorative Stitches 710spm for wide stitches
Mechanical Dual Feed Optional
Mirror imaging Yes
Multi-Directional Sewing Yes (up to 8 sideways)
Foot controller Yes
My Custom Stitch Yes
Needle Plate One-touch needle plate removal and needle plate detector for safe operation. Straight stitch needle plate included.
Needle Positions 57
Needle Stop Position Control Up/Down Yes
Number of Included Presser Feet 16 (2 embroidery, 14 sewing)
Number of Sewing Stitches Including Buttonholes 154 utility, 670 decorative, 10 Disney, 15 one-step buttonholes (up to 47mm)
Pivot function Yes
Presser Foot Levelling Button Yes
Projector Gridline Marker Yes (gridlines, 3 colours)
Projector Guideline Marker Yes
Repeated single sewing Yes
SFDS (Square Feed Drive System) Yes
Snap on Presser Feet System Yes
Speed control customised for zigzag width Yes
Workspace (mm) 333
Warranty 5 year warranty (1 year for commercial purposes)
Adjustable Bobbin Winding Amount Yes
Adjustable Thread Tension Automatic
Automatic Thread Cutter Yes
Bobbin Winder Independant
Lower Thread Sensor Yes
Needle Threading System One-touch needle threading button
Upper Thread Sensor Yes
Machine Dimension 690W x 322D x 349H mm
Weight 19.6 kg
