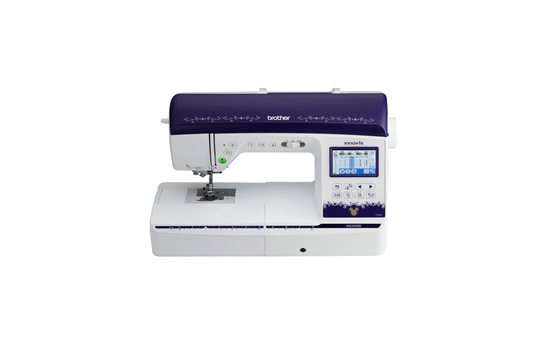

Innov-is NQ3500D

If you’re a serious sewist or an experienced embroiderer who loves Disney designs, our Innov-is NQ3500D will allow your creativity to shine.

At a glance

  • home
Find an authorised reseller

Take advantage of 290 built-in sewing stitches, or make your own with the My Custom Stitch feature. You’ll love the large 260mm x 160mm embroidery area and Automatic Height Adjuster (AHA) feature, plus its powerful editing tools including pattern layout, rotation, mirror imaging, combining patterns, re-sizing and more. Easily import designs from your USB memory stick, expanding your design capabilities beyond the generous 173 built-in embroidery designs, including 35 Disney designs. There’s no limit to your creativity.

Key Features

  • Manage all the functions on the 3.7” colour LCD touch screen display touch screen display and the touch sensor keypad.
  • Enhanced My Custom Stitch feature - design your own stitch patterns, combine and edit the built-in stitches then save for future use.
  • Large 260 x 160mm (10” x 6”) embroidery area.
  • 290 built-in stitches including 58 combinable stitches, 10 one-step buttonhole styles and 5 sewing fonts.
  • 173 built-in embroidery designs including 35 designs featuring Disney characters.
  • Powerful editing features include pattern layout, rotation, mirror imaging, combining patterns, re-sizing and more.

  • 5-Year Return-to-Base Warranty


The Innov-is NQ3500D computerised sewing and embroidery machine is ideal for hobbyists of all skill levels.

Looking for consumables and accessories for your NQ3700D sewing & embroidery machine?

Click here

Features in Depth

Large embroidery area
Large 260mm x 160mm embroidery area gives you the space for large, intricate designs.

Built-in embroidery designs
173 built-in embroidery designs, including 35 designs featuring Disney characters.

Frame shapes
10 frame shapes and 14 border styles to allow those extra finishing touches to your embroidery.

11 built-in embroidery and 5 sewing fonts
Add a personal touch to your projects with a wide variety of built-in sewing and embroidery fonts. Ideal for monograms, names, sentiments, etc.

Built-in stitches
290 built-in stitches including 10 one-step buttonhole styles.

Pivot function

The presser foot automatically lifts as the needle remains lowered for fast and easy fabric manipulation.

Automatic height adjuster (AHA)
The AHA feature helps ensure consistent stitch length on all fabric thicknesses by keeping the presser foot pressure consistent, regardless of fabric thickness, leading to uniform stitch quality across uneven surfaces.

Slide speed
Slide speed control adjusts speed from slow to fast. This can also be set to alter stitch width whilst sewing.

Advanced needle threading system
Simply follow the thread guide, lower the lever and the needle is threaded for you.

Quick-set drop-in bobbin
Simply follow the thread guide, lower the lever and the needle is threaded for you.

Specification Details

Features and Specifications

Brand Innov-is
Design Computerised
Function Embroidery, Quilting, Sewing
Machine Size Large
Machine Type Embroidery Machine, Sewing Machine
Skill Level Advanced, Intermediate
Use Home
USB Port USB Port
Display Resolution (Pixel) 432 x 240
Display Size 3.7"
Stitch Selection LCD Touchscreen
Type of Screen LCD-Touchscreen Colour
Built-In Embroidery Frame Patterns 140 (10 shapes and 14 stitch types)
Built-In Lettering Styles (Embroidery) 11
Embroidery Area in mm 260 x 160 mm
Frames Included Embroidery Frame: 6 x 10" (160 x 260 mm)
Max Embroidery Speed (Stitches per Minute) 850
Number of Hoops (Standard Accessory) 2
Accessory Compartment Yes
Bobbin Type Horizontal
Case Hard Case
Hardware Type Electronic
Insertion of Bobbin Quick Set Bobbin
Wide Table Optional
Built-In Lettering Styles 5
Buttonholes 10
Customizable Presser Foot Movement Yes
Free arm sewing Yes
Lighting 2 LEDs
Max. Sewing Speed (Stitches per minute) 850
Maximum Stitch Length 5 mm
Maximum Stitch Width 7 mm
Multi-Directional Sewing Yes - sideways
Foot controller Optional
Number of Included Presser Feet 16
Number of Sewing Stitches *incl. Buttonholes 290
Pivot function Yes
Sewing Arm Length 8.3" (210.82 mm)
Warranty 5 year return-to-base. For commercial use, 1 year return-to-base.
Adjustable Thread Tension Automatic
Automatic Thread Cutter Yes
Needle Threading System Advanced
Upper Thread Sensor Yes
Machine Dimension 693 x 420.8 x 300 mm
Weight 9.8 kg
