Innov-is NQ3700D

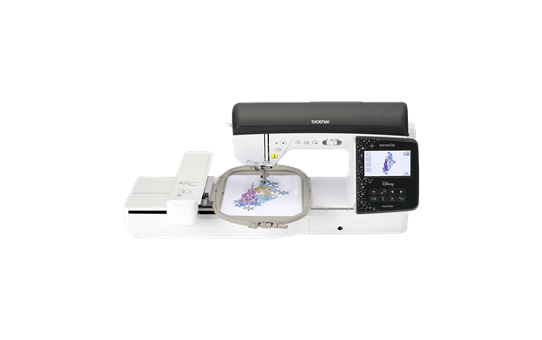

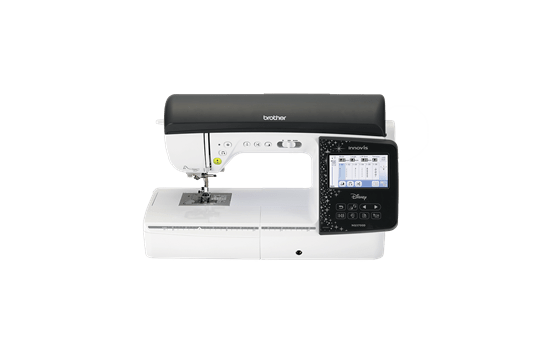

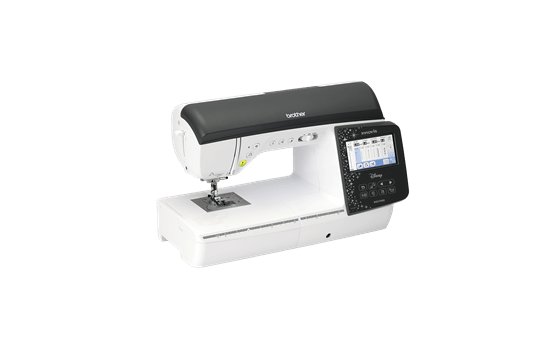

Add the magic of Disney as you take your sewing, quilting and embroidery to the next level with the Brother Innov-is NQ3700D combination machine.

$5,299.95 RRP (Inc. GST)

At a glance

  • home
Find an authorised reseller

A combo machine with plenty to offer, the NQ3700D has luxurious features such as 313 built-in embroidery designs, including 55 designs featuring Disney & Pixar designs, and 291 built-in stitches. When connected to a wireless network, send files from your PC to your machine via the Design Database Transfer (no USB required) and enjoy the enhanced My Custom Stitch feature and the Automatic Height Adjuster. With the NQ3700D, there is no telling what you’ll create next.

Key Features

  • 4.9" Colour Touch Screen
  • WIFI enabled and Free Design Database Transfer software for easily transferring embroidery patterns
  • 313 built-in embroidery designs, including 55 featuring Disney & Pixar designs
  • Pivot Function | Droplight Positioning Marker
  • On Screen Editing
  • Colour Sorting Feature

  • 5-Year Return-to-Base Warranty
  • 405 x 405px - Expanded Polystyrene-free Sticker_Solid Green

Features in Depth

Built-in Embroidery Designs, Frame Pattern Combinations, and Lettering Fonts
313 built-in embroidery designs, including 55 Disney, 140 frame pattern combinations, and 13 lettering fonts for your embroidery side.

Built-in Stitches, Buttonhole Styles, and Fonts
291 built-in stitches, 10 styles of one-step auto-size buttonholes, and 5 sewing lettering fonts for your sewing side.

Large Work Area
A maximum embroidery field of 6" x 10" (160mm x 260mm) can accommodate large projects, and the sizeable 8.3" (210mm) from needle to arm gives you more room to easily maneuver fabric. Plus, the compact faceplate provides better visibility for changing needles.

Colour Display
A brilliant and sharp 4.9" (120mm) colour LCD touch screen display welcomes you with an easy user interface. Here, you can do on-screen editing, including letter editing, enhanced zoom, resizing, rotating, repositioning, drag and drop, and combining designs.

Wireless Capability
Send designs wirelessly from your PC to your machine when connected to a wireless network, using Design Database Transfer. (No USB needed).

Automatic Height Adjuster (AHA)
Keep a steady stitch length on all fabric thicknesses by keeping the presser foot pressure consistent, leading to uniform stitch quality across uneven surfaces.

My Custom Stitch
This enhanced feature allows you to combine and edit custom and built-in stitches for a truly customized approach.

Up to 850 Stitches Per Minute
Efficient and fast, embroider and sew designs at up to 850 stitches per minute so that you can create more in less time.

Long List of Included Accessories
From a Zigzag Foot and Free-Motion Open Toe Quilting Foot to a soft cover and reference guide, you can start creating right out of the box.

What's in the Box

• Zig Zag Foot (on machine)
• Monogramming Foot
• Overcasting Foot
• Zipper Foot
• Buttonhole Foot
• Blind Stitch Foot
• Button Fitting Foot
• Embroidery Foot with Led Pointer
• Open Toe Foot
• Free Motion Open Toe Quilting Foot
• Non-Stick Foot
• Stitch Guide Foot
• Adjustable Zipper/Piping Foot
• Walking Foot
• 1/4 Inch Piecing Foot
• Side Cutter Foot
• Quilting Guide
• Needle Set 75/11 (6)
• Twin Needle Set
• Bobbins (4)
• Seam Ripper
• Scissors
• Cleaning Brush
• Eyelet Punch
• Large Screwdriver
• Small Screwdriver
• L-shaped Screwdriver
• Disc-Shaped Screwdriver
• Horizontal Spool Pin
• Large Spool Cap
• 2 x Medium Spool Cap
• Small Spool Cap
• Thread Spool Insert (Mini King Thread Spool)
• Spool Net
• Knee Lift
• Standard Bobbin Case (on machine)
• Alternate Bobbin Case
• Foot Controller
• Embroidery Frame Set 260mm x 160mm
• Embroidery Frame Set 180mm × 130mm
• Embroidery Bobbin Thread (#60, White)
• Accessory Bag
• Soft Cover
• My Custom Stitch Grid Sheet
• Operation Manual
• Quick Reference Guide
• Embroidery Pattern Guide

Specification Details

Features and Specifications

Brand Innov-is
Design Computerised
Function Embroidery, Quilting, Sewing
Machine Size Large
Machine Type Embroidery Machine, Quilting, Sewing Machine
Skill Level Advanced, Intermediate
Use Home
USB Port USB Port
WLAN Function Yes
Display Resolution (Pixel) 432 x 240
Display Size 125 mm
Stitch Selection LCD Touchscreen
Type of Screen LCD-Touchscreen 260,000 Colours
Built-In Embroidery Frame Patterns 140 (10 shapes and 14 stitch types)
Built-In Lettering Styles (Embroidery) 13
Embroidery Area in mm 260 x 160 mm
Frames Included Embroidery Frame: 5" x 7" (130 x 180 mm), Embroidery Frame: 6 x 10" (160 x 260 mm)
Max Embroidery Speed (Stitches per Minute) 850
Number of Hoops (Standard Accessory) 2
Accessory Compartment Yes
Bobbin Type Horizontal
Case Soft Cover
Hardware Type Electronic
Insertion of Bobbin Quick Set Bobbin
Wide Table Optional
Built-In Lettering Styles 5
Buttonholes 10
Customizable Presser Foot Movement Yes
Free arm sewing Yes
Lighting 2 LEDs
Max. Sewing Speed (Stitches per minute) 850
Maximum Stitch Length 5 mm
Maximum Stitch Width 7 mm
Multi-Directional Sewing Yes - sideways
Foot controller Yes
My Custom Stitch Yes
Number of Included Presser Feet 16
Number of Sewing Stitches *incl. Buttonholes 290
Pivot function Yes
Sewing Arm Length 8.3" (210.82 mm)
Warranty 5 year return-to-base. For commercial use, 1 year return-to-base.
Adjustable Thread Tension Automatic
Automatic Thread Cutter Yes
Needle Threading System Advanced
Upper Thread Sensor Yes
Machine Dimension 693 x 420.8 x 300 mm
Weight 9.8 kg
