Innov-is Stellaire XJ1

Overview

The Stellaire Innov-is XJ1 sewing and embroidery machine benefits from an LED drop needle pointer, laser precision, perfect positioning and faster embroidery speeds of up to 1,050 spm.

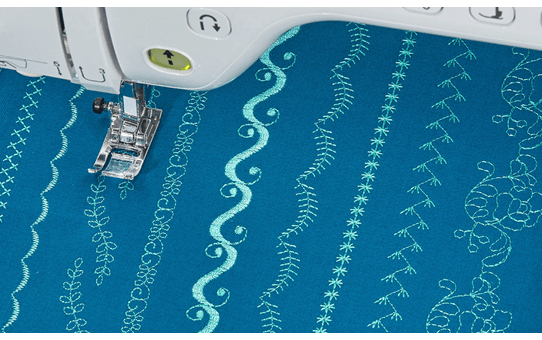

You can express yourself with 727 built-in decorative stitches, and four sewing fonts and 727 embroidery designs, including Disney and monograms, colour shuffling, enhanced thread palettes. Become a Stellaire pro with 24 built-in teaching videos.

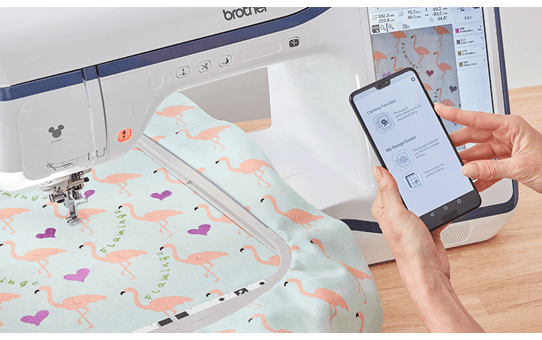

With Stellaire’s new My Design Snap app you can use your mobile device for quick, easy and precise embroidery positioning. Just take a picture of your fabric in the special embroidery hoop and wirelessly send the data to your Stellaire.

The Stellaire comes with My Design Center built in, our powerful, easy-to-use editing programme where you can create your own custom works of art. Draw straight into My Design Center using the Stellaire’s large drawing area on the touch screen, or use the built-in USB port to import your own jpegs to be turned into stitch data.

You can even pair My Design Center with My Design Snap to convert your own images into unique embroidery designs. You can ‘draw’ straight onto your fabrics, using the touchscreen to convert your designs into embroidery data.

You don’t even need a PC to get designing on your Stellaire!

The Stellaire Innov-is XJ1 comes pre-loaded with My Custom Stitch™ which allows you to create your own decorative stitches up to 7mm wide.

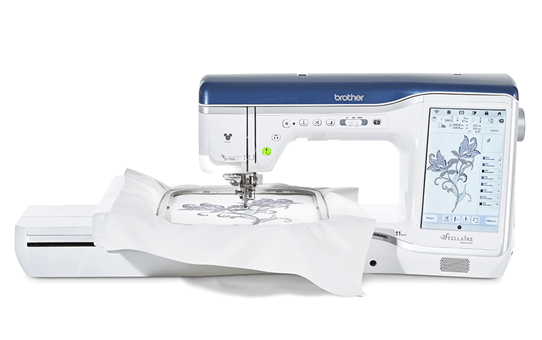

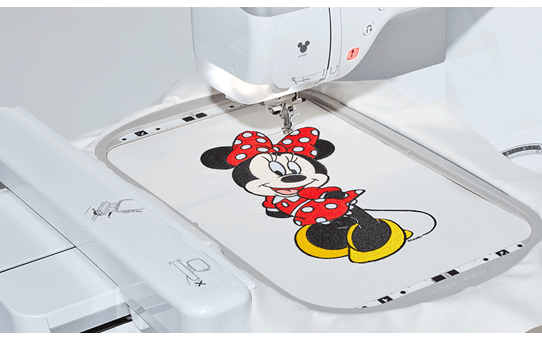

The extra large embroidery area of 240 x 360mm allows you to work on bigger projects, and with the bright 10.1” HD LCD display with five adjustable light settings, you can create at any time.

With 11.25” from needle to arm you can achieve anything you can imagine. From quilts to curtains, wedding dresses to bulky coats, there’s always space on the Stellaire Innov-is XJ1 to work quickly and comfortably.

Key Features

Extra-large embroidery area: 9.5 x 14" (360 x 240mm)
889 built-in embroidery designs, including buttonhole styles, quilt patterns, crochet designs, couching designs and lettering and In-the-hoop patterns and 101 Disney favourites
26 embroidery fonts (24 alphabets and 2 Cyrillic)
Monogram alphabet patterns, including a candle-wicking design
• 760 built-in decorative and utility sewing stitches incl 16 buttonholes, 20 tapering, 3 sashiko and 130 stitches compatible with the Dual Feed Foot
11.25” (285mm) to the right of the needle to sew and quilt
Up to 1,050 spm embroidery speed
10.1” High resolution LCD touchscreen
Wireless capability to work with Brother apps, Artspira, My Design Snap, My Stitch Monitor, Design Database Transfer and PE-Design 11
Stitch to Block function – change size of embroidery whilst keeping stitch density
LED pointer embroidery foot and laser sewing guide
Matrix setting – automatically place repeated designs for the perfect layout
Enhanced font editing functions
Advanced colour shuffling – save up to nine of your favourite palettes
Easy-access needle plate and newly designed multi-tool
Automatic electronic needle threader
Auto jump stitch trimmer
USB port – making it easy to import designs
Built-in movie tutorials and MP4 upload function
5 year warranty

What's in the Box

Accessories included:

Zigzag foot “J” (on machine)
N+ Advanced monogramming foot “N+”
Overcasting foot “G”
Zipper foot “I”
Buttonhole foot “A”
Blind stitch foot “R”
Button fitting foot “M”
Compact dual feed foot
Compact Digital dual feed foot with regular toe attachment
Straight stitch foot
Free motion open toe quilting foot “O”
Embroidery foot “W+” with LED pointer
1/4" Piecing foot with guide
Adapter
Screw (small)
Needle set
- 75/11 2 needles
- 90/14 2 needles
- 90/14 2 needles: ballpoint needle (gold colored)
Twin needle
- 2/11 needle
Ballpoint needle set
- 75/11 2 needles
Bobbin × 10 (one bobbin is in machine)
Seam ripper
Scissors
Cleaning brush
Eyelet punch
Screwdriver (small)
Screwdriver (large)
Disc-shaped screwdriver
Multi-purpose screwdriver
Spool cap (small)
Spool cap (medium) × 2 (one spool cap is on machine)
Spool cap (large)
Thread spool insert (mini king thread spool)
Bobbin clip × 10
Spool felt (on machine)
Spool net × 2
Embroidery needle plate cover
Touch pen (stylus)
Knee lifter
Foot controller
Standard bobbin case (green marking on the screw) (on machine)
Alternate bobbin case (no colour on the screw)
Straight stitch needle plate
Cord guide bobbin cover
Bobbin cover (with mark) (on straight stitch needle plate)
Bobbin cover (on machine)
Embroidery frame with decal set
- 36 cm (H) × 24 cm (W) approx. 14 inches (H) × 9 1/2 inches (W))
Embroidery frame with decal set
- 18 cm (H) × 13 cm (W) (approx. 7 inches (H) × 5 inches (W))
Embroidery positioning sticker sheets × 4
Lens calibration sheet
Embroidery bobbin thread (#60, white)
Stabiliser material
Grid sheet set
Chalk pencil
Accessory bag
Embroidery couching foot “Y”
Yarn guide for embroidery couching
Yarn threader
Vertical spool pin
Operation manual
Embroidery Design Guide

Included accessories subject to change without notice.

Features in Depth

General Features

Work space
11.25” (285mm) long arm to the right of the needle and 5” (127mm) height from sewing bed to top of machine arm

Lighting
Almost 11” of full-spectrum lighting around the needle with five adjustable brightness settings, including off.

Needle threader
Easy to use, automatic needle threading system

Bobbin winder
Independent bobbin winder system with adjustable winding speed

Wireless
Wireless LAN capability for exchange of embroidery data with PE-Design 11 and My Design Snap mobile app

Thread tension
Automatic thread tension

Thread cutter
Trims upper and lower threads automatically

Presser foot
Automatic presser foot lift and extra high lift

Thread sensors
Gives you a warning when your upper and lower threads are running low

Teaching movies
Wide selection of built-in tutorial videos and MP4 playability

Start/stop button
Ergonomic large start/stop button

Environment
Save energy with the Eco and Deep Sleep modes

App connectivity
Create your own designs with My Design Center and Artspira, create your own stitches with My Custom Stitch, get perfect placement with My Design Snap, keep an eye on your work whatever you’re doing with My Stitch Monitor and connect to your ScanNCut DX with My Connection

LCD Display

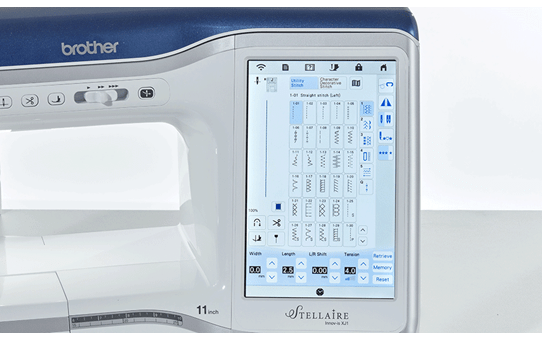

Large and clear 10.1" (800 x 1280px) built-in HD LCD display

Intuitive user interface
Easy-to-use screen layout and realistic preview of selected stitches and patterns

USB connectivity
Two high-speed ports, can connect by mouse as well as optional external USB embroidery card reader

Multilingual operational languages
12 built-in languages.

Safety features
Easily disengage needle to make changing presser feet and needles safer, and lock the screen to avoid any accidental stitch changes

Updates
Software update capability

Embroidery Features

Embroidery area
Large 9.5 x 14" / 240 x 360 mm embroidery area

Embroidery speed
Embroidery up to 1,050 stitches per minute

Built-in designs

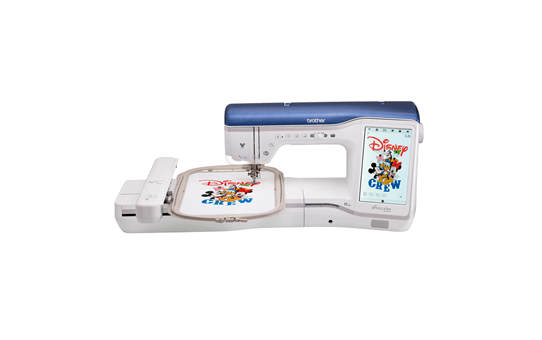

Total 889 embroidery patterns including 101 Disney, monogram and buttonhole shapes

Built-in fonts
Built-in 26 embroidery fonts (24 alphabet and 2 Cyrillic). Two fonts include the full Eastern European font set

Text edit functions
Simplified user interface for text input and editing, with various editing capabilities such as curving, arraying and space adjustment

Font sizes
S/M/L size for font designs

Built-in frame designs
140 frame pattern combinations

Thread trimming
Jump stitch thread trimming with thread wiper

Density
On-screen auto density adjustment (Stitch-To-Block) available for embroidery and letters

LED pointer
Laser pointer for precise pattern placement

Advanced editing functions
Design editing, flip designs horizontally, pattern rotating (0.1, 10 and 90 degrees), drag and drop operation, zoom up to 800% in My Design Centre and 200% otherwise

Basting
Embroidery basting

Colour Shuffling
Colour shuffling function that can choose from your favourite thread brands with more colour variations, with pinning, and favourite mark capability

Stippling
No-fuss stippling in embroidery edit

Selecting Designs
Advanced multiple design selection

Colour change
Direct touch button for changing colours of embroidery patterns

Resume function
Resume your embroidery at the exact spot where you stopped incase of a power failure or accidental interruption

Appliqué creator
Built-in Appliqué Creator; create multiple appliqués in one hoop with automatic best-placement repetition

Optimised colour sorting
Quickly sort colours in different designs for optimised sewing order and to minimise thread changes

Frame detection
Automatic embroidery frame size detection

Progress bar
View the progress of an embroidery pattern or individual colour, and use to move forwards/backwards through the design

Thread palettes
Select various thread brands for built-in and external designs and save up to nine of your favourite combinations

Included frames
Two standard frames, compatible with My Design Snap, included 240 x 360 mm (9.5 x 14") and 130 x 180 mm (5 x 7")

Sewing Features

Built-in sewing stitches
Total of 760 utility and decorative stitches and buttonholes

Lettering fonts
Four built-in sewing lettering fonts (three alphabet, 1 Cyrillic)

Sewing speed
Sew up to 1,050 stitches per minute

Combination stitches
Individual adjustment for combined stitches (depending on category)

My Custom Stitch™
My Custom Stitch™ gives you the ability to combine and edit custom stitches. Includes 185 built-in sample stitches

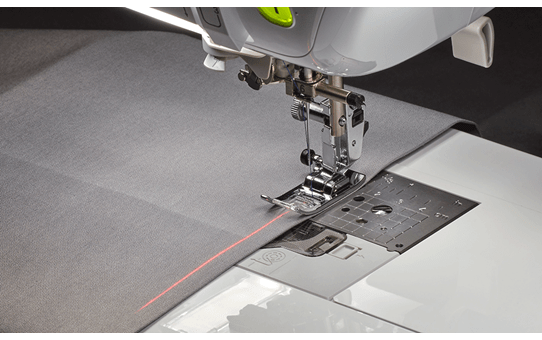

Laser guideline marker
Guideline marker with 19 mm side shift capability

ICAPS fabric sensor system
Continuously adjusts presser foot pressure and auto detects fabric thickness

Automatic presser foot pressure
Automatic Height Adjuster (AHA) for automatic presser foot pressure

Lock stitch
Reinforcement stitch at start and end of sewing

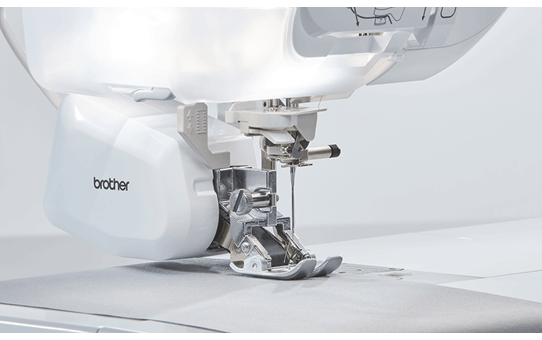

Dual feed
Digital Dual Feed System for even and consistent sewing on all fabrics

Pivot and foot height
Lightning-quick pivoting functionality with customisable foot height

Square Feed Drive System
Square feeding system with powerful and long feed dogs

Needle plate detector
Needle plate detector for safe operation

Easy to remove needle plate
Swap needle plates easily with new designed tool

Straight stitch
Straight stitch needle plate and straight stitch foot included

Sashiko designs
Three new sashiko stitches

New feet and accessories
New N Foot included for monogramming, couching foot, and more

Ruler
Ruler design with zero mark at the needle

Free motion
Presser foot height adjusts according to the thickness of the fabric

Drop feed function
Convert to free motion mode easily with a touch of a button on screen

Automatic presser foot functions
Bring presser foot down automatically using the Start/Stop button, knee lift and foot pedal

Ergonomic multi-function foot controller
Can be programmed to cut threads, reverse stitch, sew one stitch, needle up/down and No Sew function

Specification Details

Features and Specifications

Brand	Innov-is, Stellaire
Design	Computerised
Function	Embroidery, Quilting, Sewing
Machine Size	X-Large
Machine Type	Embroidery Machine, Sewing Machine
Skill Level	Advanced, Intermediate
Use	Business, Home

USB Port	2 Hosts (2.0/2.0) / 0 Slave

Display Resolution (Pixel)	800 x 1280
Display Size	10.1" Colour mm
Stitch Selection	LCD Touchscreen
Type of Screen	High-Resolution IPS LCD-Touchscreen

Built-In Embroidery Frame Patterns	140 (10 shapes x 14 stitch types)
Built-In Lettering Styles (Embroidery)	24（22 Alphabet, 2 Cyrillic)
Built-In Patterns	727
Camera with Scan Function (Built-in Camera)	My Design Snap App
Colour Shuffling	Yes
Embroidery Area in mm	240 x 360 (9.5 x 14")
Font Editing Functions/Multiple Lines and Alignment (L-C-R)	Yes
Font Size Selection (L-M-S)	Yes
Jump Stitch Trim	Yes
LED Pointer	Embroidery Foot Included
Max Embroidery Speed (Stitches per Minute)	1050
Multiple Line Input	Yes
My Design Center	Yes
New UI (Slide Scroll Operation)	Yes
Number of Hoops (Standard Accessory)	4
Number of Spool Stands	2
On Screen Video Tutorials	Yes
Pattern - Size, Change Rotation & Mirror	Yes
Realistic Preview of Patterns	Yes
Single Colour Pattern Converter	Yes
Thread Colour Sorting	Yes
Frames Included	Embroidery Frame: 4 x 4" (100 x 100 mm), Embroidery Frame: 5" x 7" (130 x 180 mm), Embroidery Frame: 9.5 x 14" (240 x 360 mm), Embroidery Frame: 9.5 x 9.5" (240 x 240 mm)

Eco Mode (Auto Power Off/Sleep Mode)	Yes

Accessory Box	Yes
Accessory Compartment	Yes
Bobbin Type	Horizontal
Case	Soft Cover
Hardware Type	Electronic
Insertion of Bobbin	Top Load Drop-in Bobbin
Instructional Manual PDF Viewer	Yes
Number Of Needles	1
Wide Table	Optional

Adjustable presser foot	Electronic
Automatic reverse / reinforcement stitch	Yes
Bobbin Work	Optional
Built-In Lettering Styles	4
Buttonholes	14 one-step, 1 four-step
Circular Sewing	Optional
Combine stitches	Yes
Continuous Automatic Pressure System (ICAPS)	Yes
Direct Dual Feed	Yes
Drop feed setting	Electronic
Electronic slide speed control	yes
Extension Wide Table	Optional
Free arm sewing	Yes
Knee lift	Yes
Laser Function	Yes
Lighting	7 LEDs
Max. Sewing Speed (Stitches per minute)	1050
Mirror imaging	Yes
Multi-Directional Sewing	Yes (up to 8 sideways)
Foot controller	Optional
Needle Positions	29
Needle Stop Position Control Up/Down	Yes
Number of Included Presser Feet	14
Number of Sewing Stitches *incl. Buttonholes	727
Pivot function	Yes
Presser Foot Levelling Button	Yes
Projector Guideline Marker	Yes
Repeated single sewing	Yes
Sewing Arm Length	11.25" (285.75 mm)
Snap on Presser Feet System	Yes
Speed control customised for zigzag width	Yes
Workspace (mm)	28.5

Warranty	Brother 5 year Warranty *Commercial use only 1 year warranty.

Adjustable Thread Tension	Automatic
Automatic Thread Cutter	Yes
Bobbin Winder	Independant
Lower Thread Sensor	Yes
Needle Threading System	Automatic
Upper Thread Sensor	Yes

Machine Dimension	916 x 524 x 348 mm
Weight	17.1 kg

Overview

Key Features

What's in the Box

Accessories included:

Features in Depth

General Features

Embroidery Features

Sewing Features

Specification Details

Features and Specifications

Other

Connectivity

Display

Embroidery

Environment

General

Sewing

Warranty Information

Threading

Weight and Measurements

Rating and Reviews

Customer reviews

Downloads

Need help?

Chat to one of our NZ-based Helpdesk team

Prefer to talk? Book a callback below

Changed your mind and would rather chat?

Thanks for booking a callback with Brother NZ.

Your preferred time* is:

One of our friendly Brother NZ Helpdesk team members will be in touch.

Thanks for getting in touch with Brother NZ.

Unfortunately our system encountered an issue which we are trying to resolve.

Please try again at a later time.
