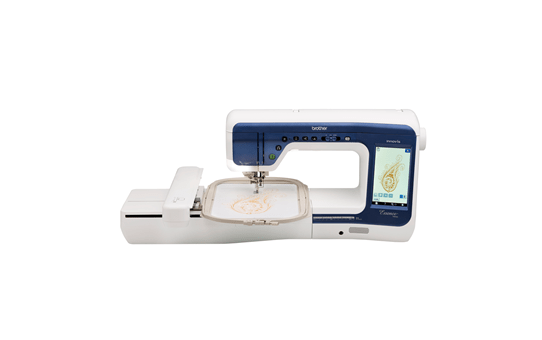

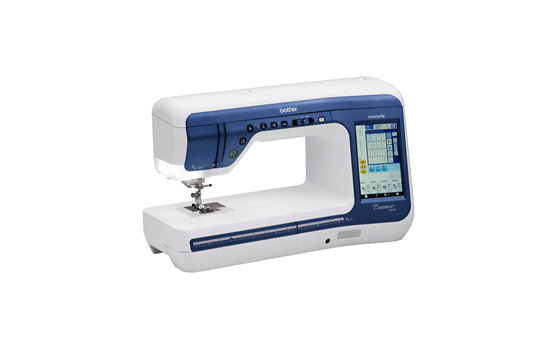

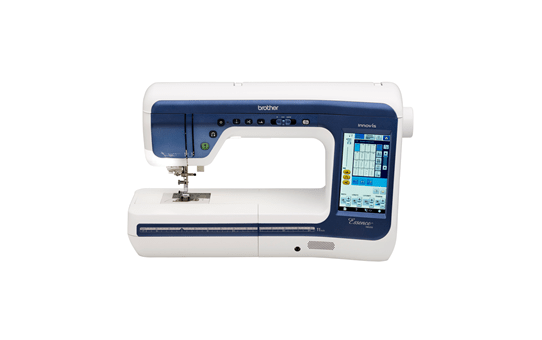

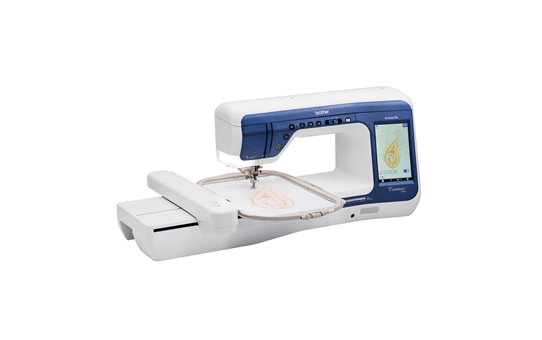

Innov-is VM5200

3-in-1 Home Sewing, Quilting and Embroidery Machine.

$8,599.95 RRP (Inc. GST)
Find an authorised reseller

Create just about anything you imagine with the Essence Innov-ís VM5200 home sewing, embroidery, and quilting combination machine. From intricate stitch work using the 715 built-in sewing stitches, to embroideries using one of 318 embroidery designs, let your imagination soar with this dynamic machine.

  • 5-Year Return-to-Base Warranty

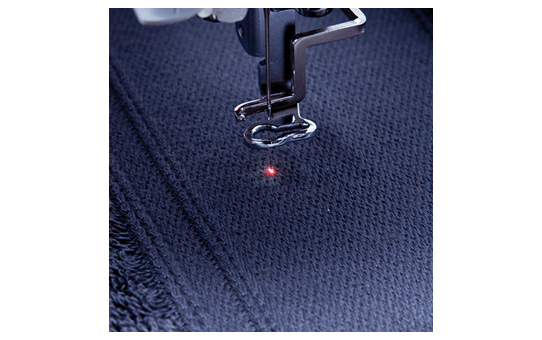

The VM5200 is perfect for any level of skill with its easy-to-use interface and Droplight Positioning Marker that tells you where your needle will drop. Time-saving features will help you create more great projects in less time. The Automatic Presser Foot functionality allows you to keep sewing without stopping to lift and lower the presser foot each time. You’ll love how easy it is to format multiple lines of text and even adjust their locations with a push of a button, right from the intuitive touch screen. Creating large projects is easier and more fun than ever! The expansive 11.25” of workspace and the 8” x 12” maximum embroidery area allows you to work on those large projects you may have struggled with in the past.

Key Features

  • 715 built in sewing stitches, 318 embroidery designs and 17 lettering fonts.
  • Large 300 x 200mm embroidery area accommodates larger designs.
  • 11.25" workspace helps tackle even the biggest projects with ease.
  • Bright 10" LED lighting.
  • 7" LCD touchscreen display lets you view on-screen tutorials and control the machine with large, intuitive icons.
  • Create more in less time with fast embroidery speeds up to 1,050 stitches per minute.
  • Automatic thread trimming cuts threads between colour stitch blocks.
  • Automatic presser foot functionality automatically raises or lowers the presser foot after trimming with the standard foot or optional multi function foot controller.
  • Multiple line text formatting enables embroidery of fonts on multiple lines with the push of a button and easily adjusts the location by using the touchscreen arrows.
  • Flexible presser foot height and pivot function settings for more types of fabric and layers.
  • Fully automatic needle threader. With the touch of a button, the thread is pushed through the eye of the needle. The machine can be threaded manually for twin and specialty needle threading.

Specification Details

Features and Specifications

Brand Innov-is
Design Computerised
Function Embroidery, Quilting, Sewing
Machine Size X-Large
Machine Type Embroidery Machine, Sewing Machine
Skill Level Advanced, Intermediate
Use Business, Home
USB Port 1 Host (2.0) and 1 Slave
Display Resolution (Pixel) 480 x 800
Display Size 7"
Stitch Selection LCD Touchscreen
Type of Screen LCD-Touchscreen 260,000 Colours
Built-In Embroidery Frame Patterns 140
Built-In Patterns 318
Embroidery Area in mm 300 x 200
Frames Included Embroidery Frame: 5" x 7" (130 x 180 mm), Embroidery Frame: 8 x 8" (200 x 300 mm)
LED Pointer Optional Foot
Number of Spool Stands 2
Accessory Compartment Yes
Case Soft Cover
Hardware Type Electronic
Wide Table Optional
Built-In Lettering Styles 5
Buttonholes 14
Drop feed setting Electronic
Feed Dog 7 Point
Free arm sewing Yes
Longer Feed Dog Yes
Max. Sewing Speed (Stitches per minute) 1050
Maximum Stitch Length 5 mm
Maximum Stitch Width 7 mm
Multi-Directional Sewing Yes - multi-directional
Foot controller Yes
Needle Stop Position Control Up/Down Yes
Number of Sewing Stitches *incl. Buttonholes 715
Warranty 5 years (1 year for commercial purposes)
Adjustable Thread Tension Automatic
Automatic Thread Cutter Yes
Bobbin Winder Yes
Needle Threading System Automatic
Upper Thread Sensor Yes
Machine Dimension 464 x 815 x 332 mm
Weight 19.2 kg
